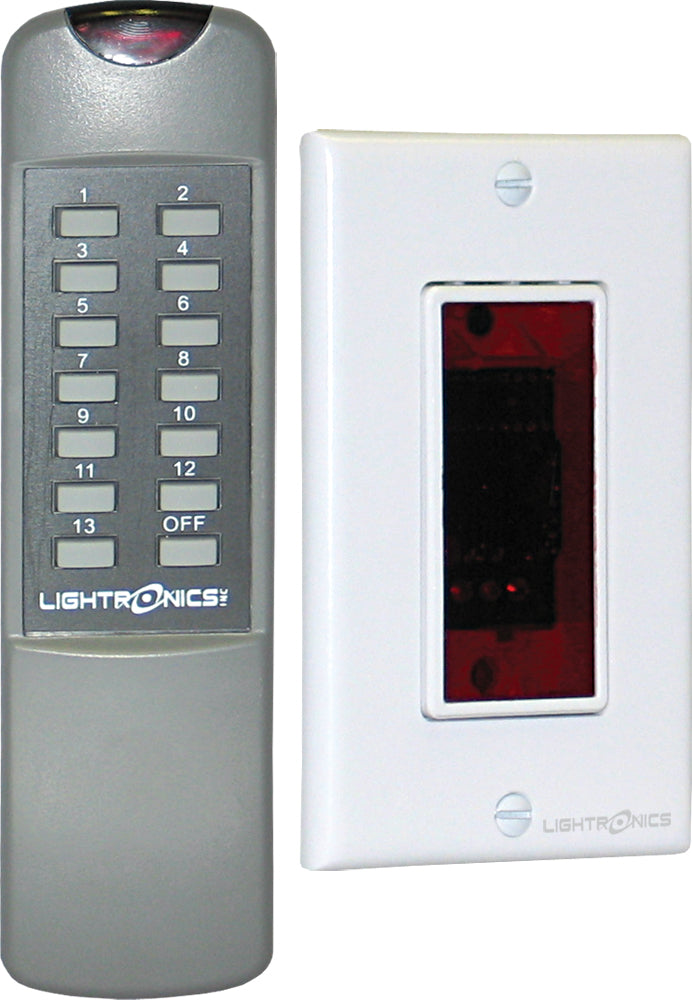

AI1001 - 13-Scene Infrared Remote Station, 1-Gang

Overview
The AI1001 is a wall-mount infrared remote station that recalls 13 scenes plus OFF on a Lightronics Unity Architectural system using a handheld IR remote. It communicates over RS-485 and does not switch loads directly.

Best for
Conference rooms, churches, schools, and venues where users want handheld scene selection.

Highlights

• 13 preset scenes plus OFF
• Infrared receiver for handheld remote operation
• Low-voltage wall station using bidirectional RS-485
• Works with Unity Architectural enabled Lightronics dimmers and ballast controllers
• Fits a standard single-gang box

Key Specs

• Scenes: 13 plus OFF
• Control protocol: Unity Architectural (LitNet) over bidirectional RS-485
• Power: hardwired low voltage
• Mounting: wall gang box (1-gang)
• Dimensions: 4 x 2 x 1 in
• Color: White
• Weight: 1.0 lbs (0.45 kg)
• UL listing: N/A

Please note: Requires a Unity Architectural enabled dimmer or ballast controller. Confirm that a handheld remote is included.
