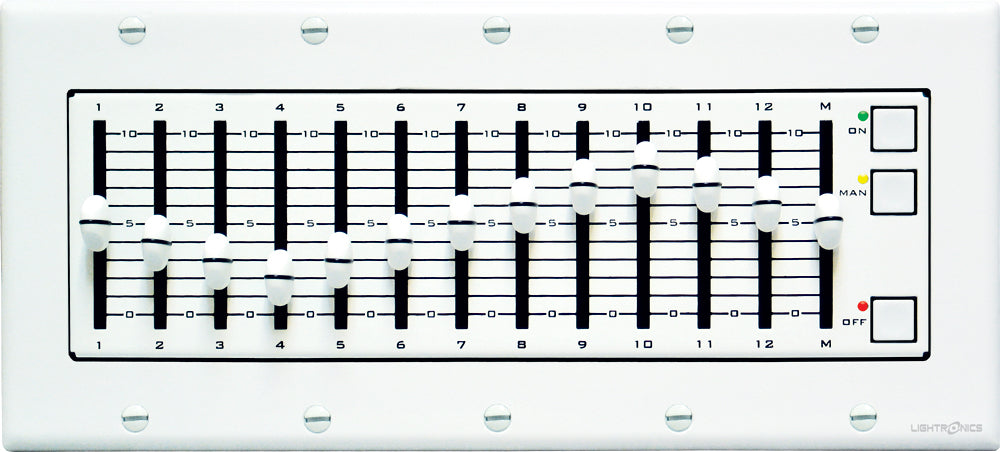

AF5113 - 12-Scene Fader Station with Master, 5-Gang, White

Overview
The AF5113 is a 12-scene fader remote station with a master fader for Lightronics Unity Architectural lighting control. It communicates over RS-485 with the centrally stored scenes.

Best for
Churches, schools, corporate spaces, performance stages, and event venues.

Highlights

• 12 individual scene faders
• Master fader for overall intensity
• ALL ON and ALL OFF (blackout) functions
• Status LEDs for feedback
• Fits a standard five-gang wall box

Key Specs

• Scenes: 12 with master
• Control protocol: Unity Architectural (LitNet) over bidirectional RS-485
• Power: hardwired low voltage
• Mounting: wall gang box (5-gang)
• Dimensions: 4 x 9.125 x 2.5 in
• Weight: 1.1 lbs (0.50 kg)
• UL listing: N/A

Please note: This station does not switch loads itself. It needs a Unity Architectural enabled Lightronics dimmer or ballast controller on the RS-485 bus.
