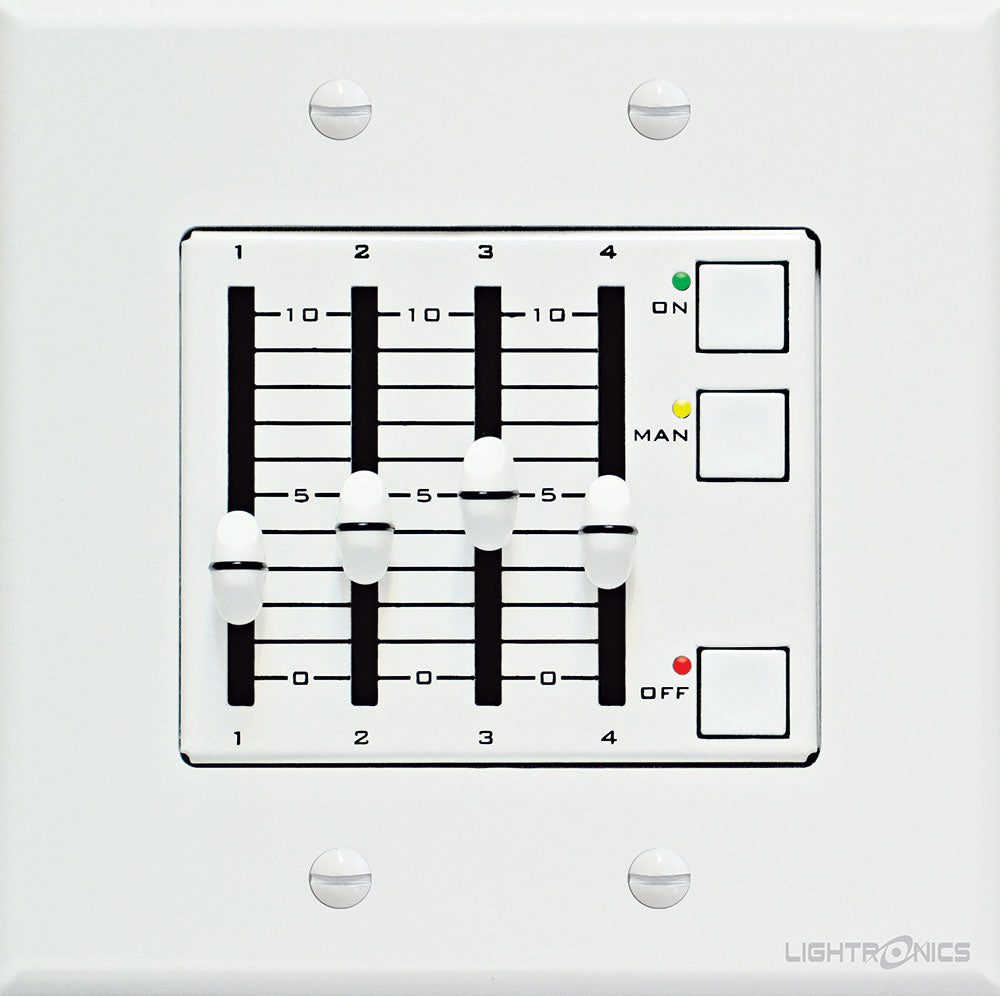

AF2104 - 4-Scene Fader Station, 2-Gang, White

Overview
The AF2104 is a 4-scene fader remote station for Lightronics Unity Architectural lighting control. Each fader sets the level of a stored scene on the Unity system.

Best for
Churches, schools, corporate spaces, and event venues that want fader control of stored scenes.

Highlights

• 4 scene faders
• Low-voltage wall station using bidirectional RS-485
• Works with Unity Architectural enabled Lightronics dimmers and ballast controllers
• Fits a standard 2-gang wall box

Key Specs

• Scenes: 4
• Control protocol: Unity Architectural (LitNet) over bidirectional RS-485
• Power: hardwired low voltage from the Unity system
• Mounting: wall gang box (2-gang)
• Color: White
• UL listing: N/A
• Dimensions: 3.75 x 4 x 2.5 in
• Weight: 0.48 lbs (0.22 kg)

Please note: This station does not switch loads itself. It needs a Unity Architectural enabled Lightronics dimmer or ballast controller on the RS-485 bus.
