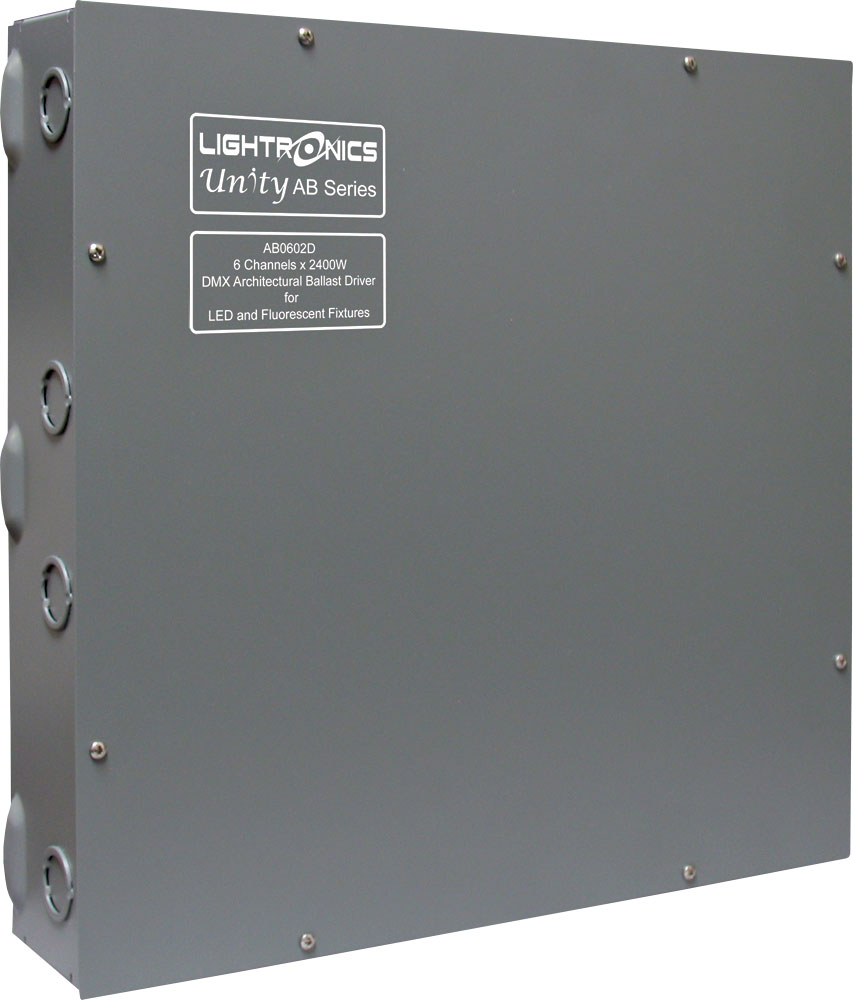

AB0602D - 6-Ch 2400W Switched Hot / 0-10VDC Ballast Driver
Regular price
$1,350.00 USD
Sale price
Regular price
Overview
The AB0602D is a 6-channel ballast driver with a 0-10V DC control interface and switched hot outputs, rated 2,400W per channel. It works with DMX-512 and Lightronics Unity Architectural Lighting Control systems.
Best for
Churches, schools, corporate spaces and performance venues that need one-button architectural lighting control.
Highlights
- 0-10V DC dimming interface for compatible ballasts and drivers
- Switched hot output per channel for load control
- Works with DMX-512 and Unity Architectural Lighting Control
- Up to 64 preset lighting scenes
- Wall mount enclosure, hardwired input and output
Key Specs
- Channels: 6
- Load: 2,400W per channel (14,400W total)
- Control type: D/C 0-10V dimming
- Control: DMX-512 and Unity Architectural (LitNet)
- Voltage: 120V input and output (USA)
- Dimensions: 15 x 15 x 3.25 in
- Mount: Wall, hardwired
- Weight: 13.3 lbs (6.0 kg)
- UL: UL Listed
Please note: This unit is hardwired. Installation should be done by a licensed electrician.
