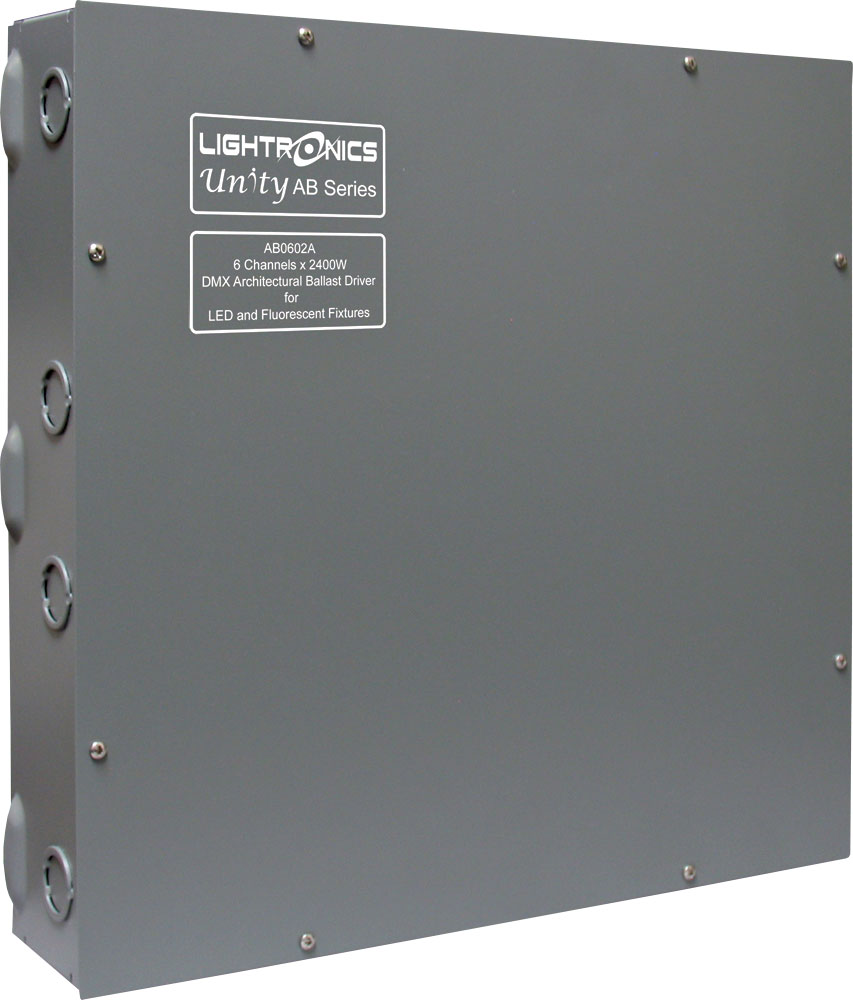

AB0602A - 6-Ch 2400W Switched Hot / Dimmed Hot AC Ballast Driver

Overview
The AB0602A is a 6-channel ballast driver with AC dimmed, switched hot / dimmed hot outputs, rated 2,400W per channel. It works with DMX-512 and Lightronics Unity Architectural Lighting Control systems.

Best for
Churches, schools, corporate spaces and performance venues that need one-button architectural lighting control.

Highlights

• Forward phase AC dimming or non-dim switching per channel
• Drives dimmable fluorescent and LED fixtures that use a dimmed hot or switched hot input
• Works with DMX-512 and Unity Architectural Lighting Control
• Up to 64 preset lighting scenes
• Wall mount enclosure, hardwired input and output

Key Specs

• Channels: 6
• Load: 2,400W per channel (14,400W total)
• Control type: A/C dimming and A/C non-dimming (forward phase dimming)
• Control: DMX-512 and Unity Architectural (LitNet)
• Voltage: 120V input and output (USA)
• Dimensions: 15 x 15 x 3.25 in
• Mount: Wall, hardwired
• Weight: 13.3 lbs (6.0 kg)
• UL: UL Listed

Please note: This unit is hardwired. Installation should be done by a licensed electrician.
