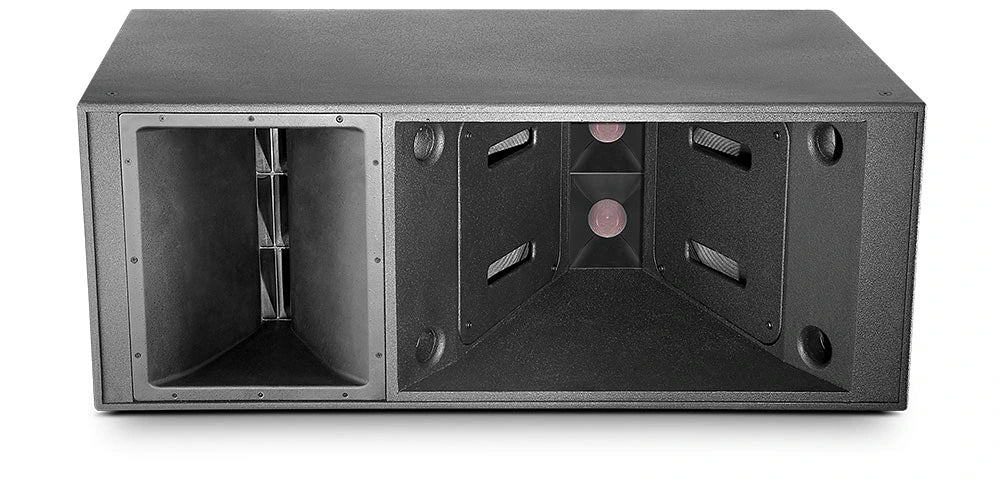

VLA601I - JBL Three-way horn-loaded line array system

Overview
A high-output three-way horn-loaded line array element with a 60 degree horizontal pattern, from JBL's VLA series.

Best for
Large concert halls, arenas, stadiums, touring and fixed installs

Highlights

• 2 x 15 in LF, 2 x 8 in MF and 3 x 1.5 in HF drivers
• 60 degree nominal horizontal coverage (500 Hz - 16 kHz)
• Barrier strip input with gland nut and cover plate
• DuraFlex-finished Baltic birch enclosure

Key Specs

• Frequency range (-10 dB): 41 Hz - 20 kHz
• Max SPL: 147.2 dB at 1 m (flat preset)
• Power: LF 1000 W, MF 400 W, HF 160 W continuous (IEC 100 hr)
• Sensitivity: LF 99/96 dB, MF 107/104 dB, HF 108/111 dB
• Dimensions: 20.8 x 53.0 x 30.2 in (528 x 1346 x 767 mm)
• Weight: 222 lb (100.7 kg)
• Part number: VLA601I
