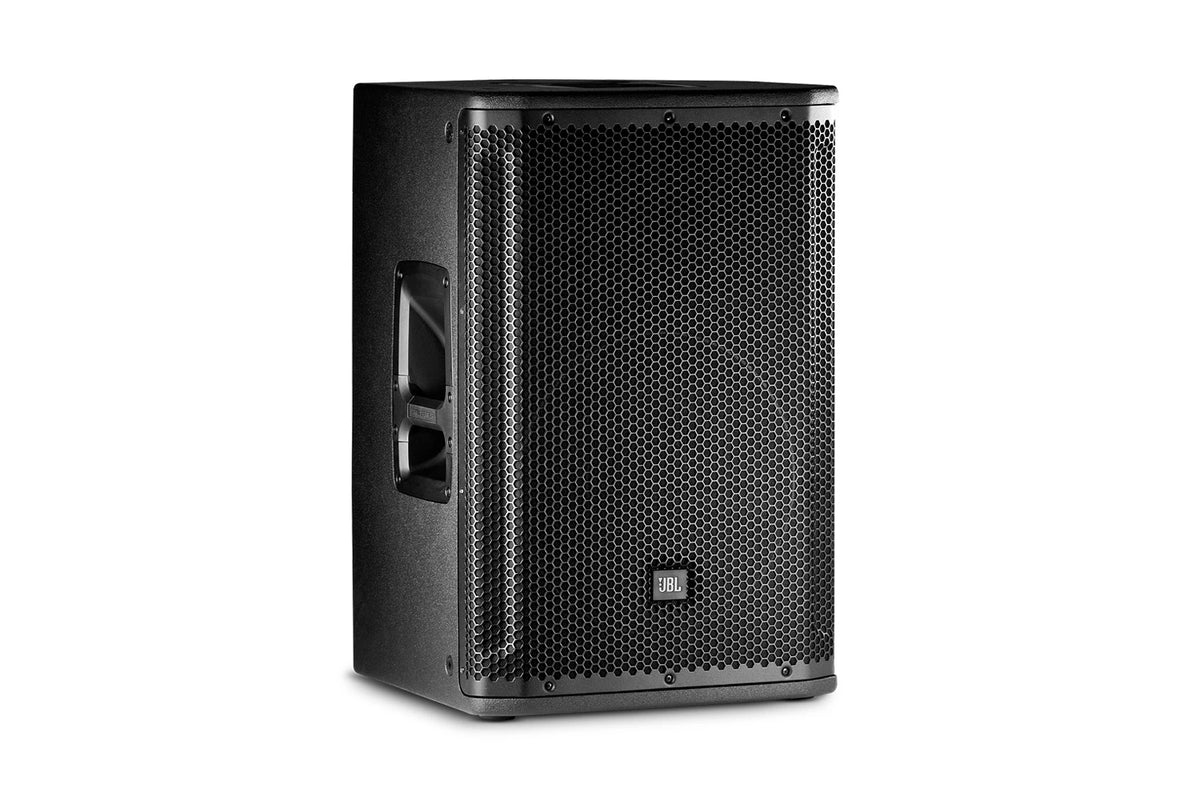

SRX812 - JBL SRX812 is a two-way full range speaker with a 12” woofer made for use as a light duty main PA, monitor

Overview
Two-way passive 12 in full-range loudspeaker from the JBL SRX800 Series, usable as a light-duty main, floor monitor or fill.

Best for
Small to mid-size live sound, DJ and band monitors, rental and fill applications

Highlights

• Differential Drive woofer with 3 in voice coil
• Floor-monitor angle and pole-mount capable
• M10 suspension points and 18 mm Duraflex plywood cabinet
• Amp and DSP tunings available for Crown and dbx

Key Specs

• Part number: SRX812
• Type: Passive 12 in two-way, bass reflex
• Power handling: 800 W continuous / 1600 W program / 3200 W peak

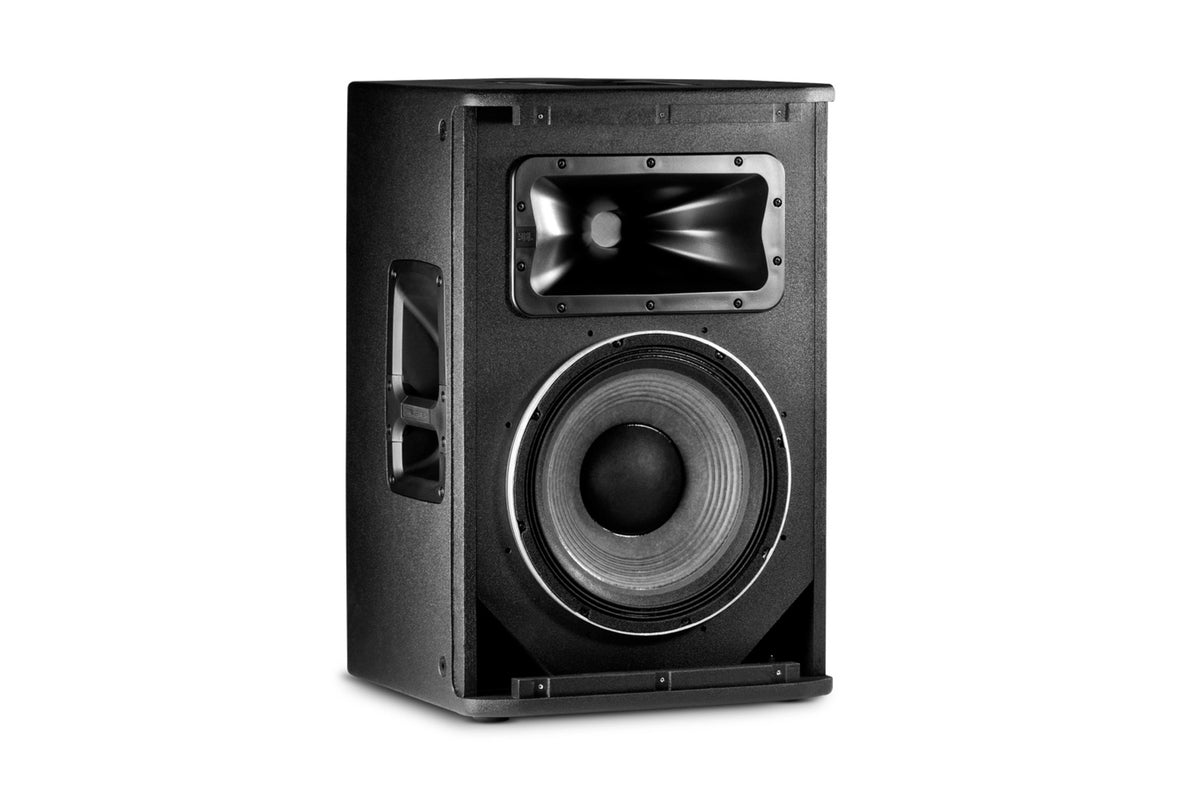

• Drivers: JBL 2272H LF, 2432H HF
• Frequency range: 41 Hz - 20 kHz (-10 dB)
• Sensitivity: 94 dB
• Max SPL: 129 dB peak
• Coverage: 90 x 50 degrees
• Impedance: 8 ohm
• Connectors: 2 x NL4 (input and loop-thru)
• Dimensions: 16.87 x 16.31 x 25.11 in (429 x 415 x 638 mm)
• Net weight: 55 lb (24.9 kg)
