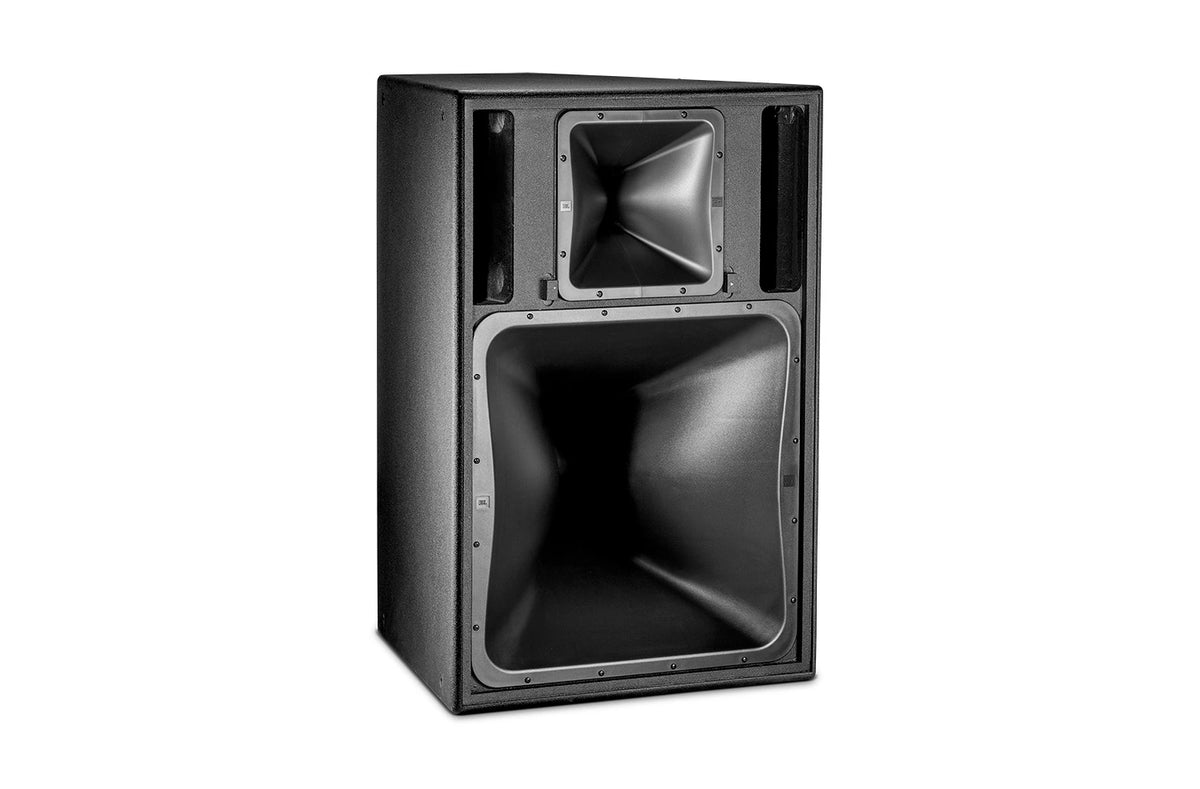

PD6322/64-H - JBL Dual 12" three-way full-range loudspeaker
Regular price
$6,025.00 USD
Sale price
Regular price
Overview
A high-output three-way full-range loudspeaker with dual 12 in woofers, an 8 in mid driver and a 60 x 40 degree rotatable waveguide, from JBL's PD series.
Best for
Large venues, auditoriums, worship facilities, performance spaces
Highlights
- Two 12 in (300 mm) LF drivers with 4 in voice coils
- Cone compression mid driver and 1.5 in HF compression driver
- Rotatable mid/high waveguides allow horizontal or vertical orientation
- Neutrik Speakon NL8 plus barrier strip terminals
Key Specs
- Frequency range (-10 dB): 41 Hz - 17 kHz
- Frequency response (+/-3 dB): 49 Hz - 15 kHz
- Sensitivity: 110 dB SPL (mid/high, passive)
- Max SPL: 135 dB continuous average (passive)
- Power handling: LF 1200 W; MF/HF 300 W (100 hr)
- Coverage: 60 x 40 degrees
- Dimensions: 39.0 x 26.5 x 35.3 in (991 x 673 x 897 mm)
- Weight: 170 lb (77 kg)
- Part number: PD6322/64-H
