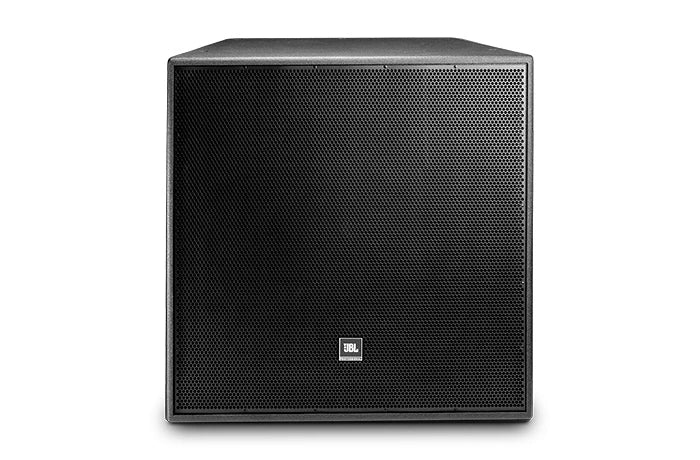

PD564-WH - JBL 15" 2-way full-range, 60 X 40
Regular price
$4,680.00 USD
Sale price
Regular price
Overview
A 15 in two-way horn-loaded loudspeaker from JBL's PD (Precision Directivity) series with a rotatable 60 x 40 degree waveguide.
Best for
Houses of worship, auditoriums, sports facilities, performance venues
Highlights
- Rotatable 60 x 40 degree Progressive Transition waveguide for horizontal or vertical mounting
- 15 in LF driver with 1.5 in exit compression driver
- Passive and bi-amp switchable operation
- 18 mm Finnish birch plywood trapezoidal enclosure
Key Specs
- Frequency range (-10 dB): 50 Hz - 20 kHz
- Frequency response (+/-3 dB): 90 Hz - 17 kHz
- Sensitivity: 105 dB SPL (1 W, 1 m, passive)
- Max SPL: 132 dB continuous / 138 dB peak (passive)
- Power handling: 500 W (2 hr) / 300 W (100 hr), passive
- Coverage: 60 x 40 degrees
- Connectors: barrier strip terminals (up to 10 AWG)
- Dimensions: 30.8 x 30.8 x 26.4 in (782 x 783 x 670 mm)
- Weight: 152 lb (69 kg)
- Part number: PD564-WH
