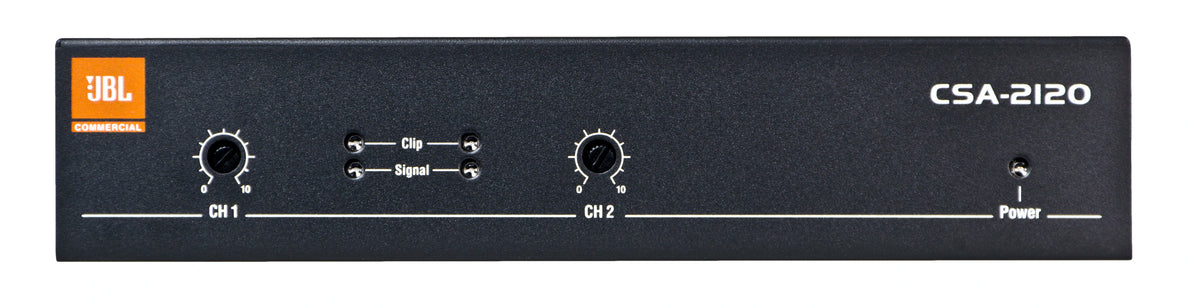

NCSA2120R-U-US - JBL 2 x 120 Watt Amplifier at 4/8 Ohms

Overview
A compact two-channel commercial power amplifier from the JBL Commercial Series (CSA-2120).

Best for
Retail, restaurants, offices, background music and zoned audio

Highlights

• Plenum rated (UL2043) and convection cooled
• Auto-standby energy-saving mode
• Summing RCA inputs on each channel
• Rack mounting kit included

Key Specs

• Power: 120 W per channel at 4/8 ohms (1 kHz, THD+N < 0.5%)
• Load impedance: stable 2-16 ohms
• Frequency response: +/-1 dB at 1 W into 4 or 8 ohms
• Signal-to-noise: > 100 dB (A-weighted)
• Input sensitivity: 1.4 Vrms
• Dimensions: 8.2 x 1.7 x 7 in (209 x 44 x 178 mm)
• Weight: 2.9 lb (1.3 kg)
• Part number: NCSA2120R-U-US
