JBL-C416C/T-VA - JBL Standard Coverage Series – Control 416C/T-VA – Two-way 6.5" Coaxial, 50W, 120° Coverage

Overview

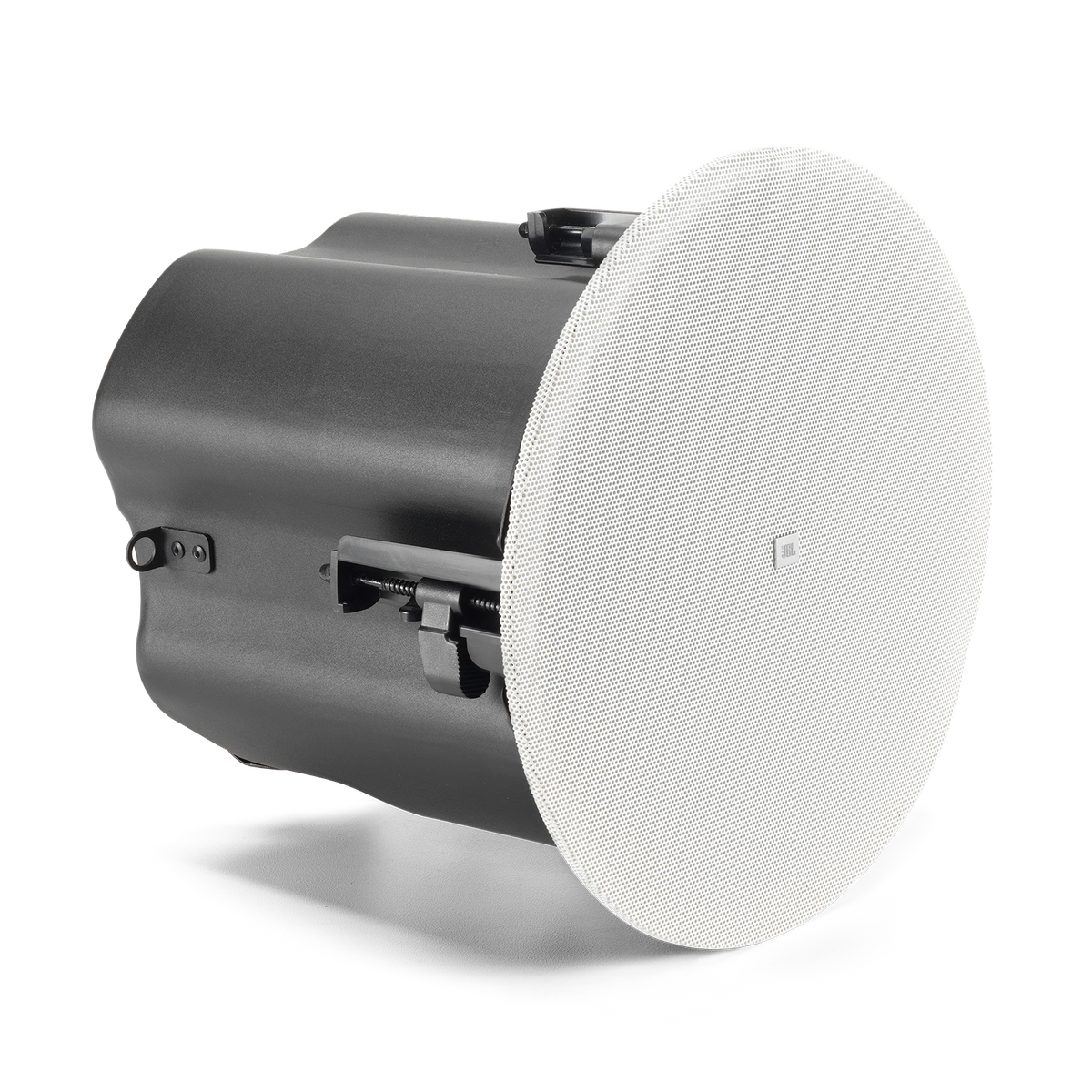

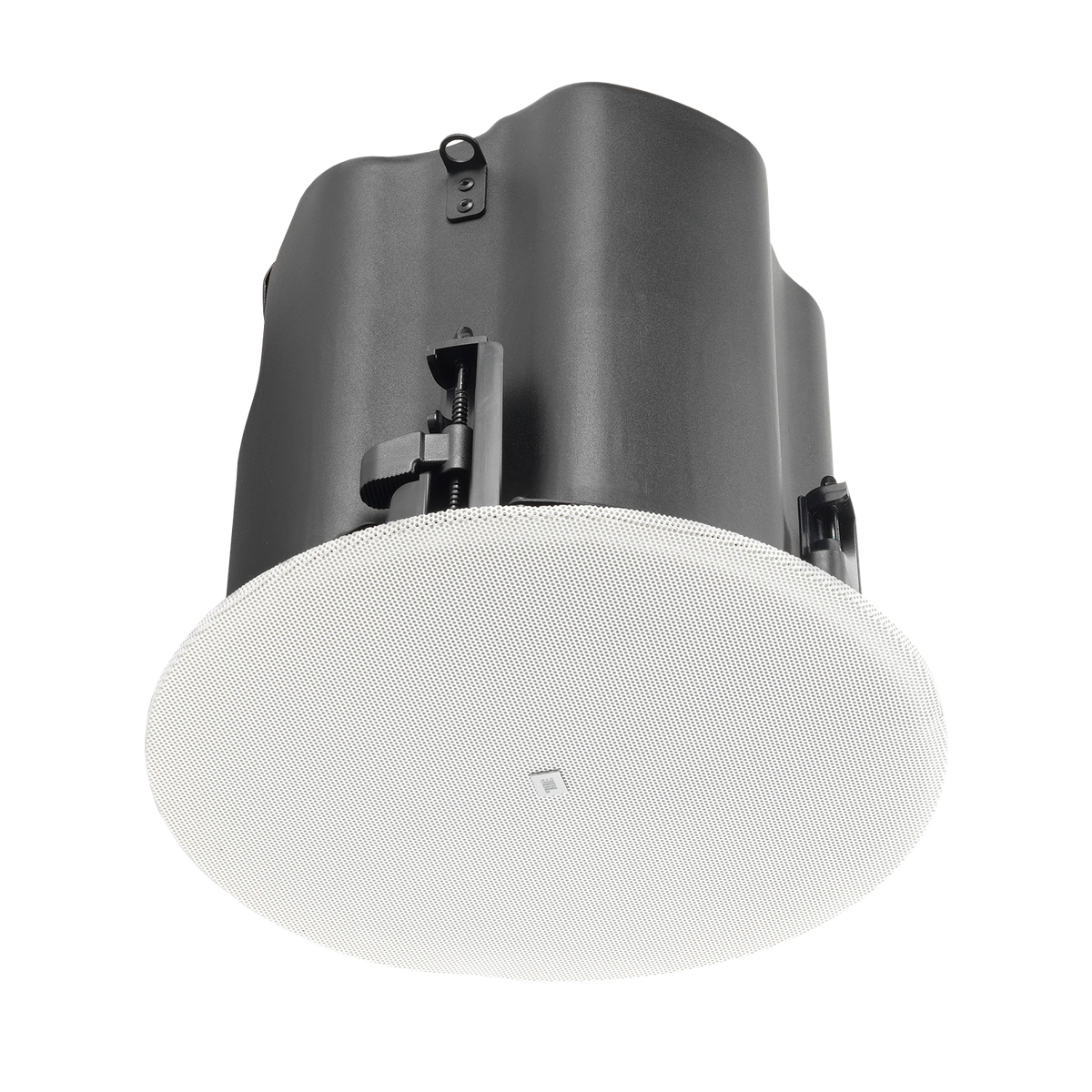

The Control 416C/T is a two-way 6.5 in coaxial ceiling loudspeaker from JBL's Control 400 Standard Coverage Series.

Best for
Retail, restaurants, offices, schools, houses of worship, hospitality

Highlights

• Two-way coaxial design with 120 deg conical coverage
• Built-in 70V/100V multi-tap transformer plus 8 ohm direct input
• Paintable magnetic grille; top and side cable entry
• IP33 rating; UL and CSA listed for air-handling spaces

Key Specs

• Part number: JBL-C416C/T-VA
• Model: Control 416C/T
• Drivers: 6.5 in (165 mm) woofer, 20 mm soft-dome tweeter
• Frequency range: 61 Hz - 20 kHz (-10 dB)
• Sensitivity: 89 dB (1 m / 1 W)
• Coverage: 120 deg conical
• Max SPL: 108 dB continuous (114 dB peak)
• Impedance: 8 ohm nominal
• Size: 9.3 in (233 mm) high x 10.4 in (261 mm) diameter; cutout 8.8 in (223 mm)
• Weight: 8.27 lb (3.75 kg)
• Version: -VA, for EN54-24 applications (per distributor)
