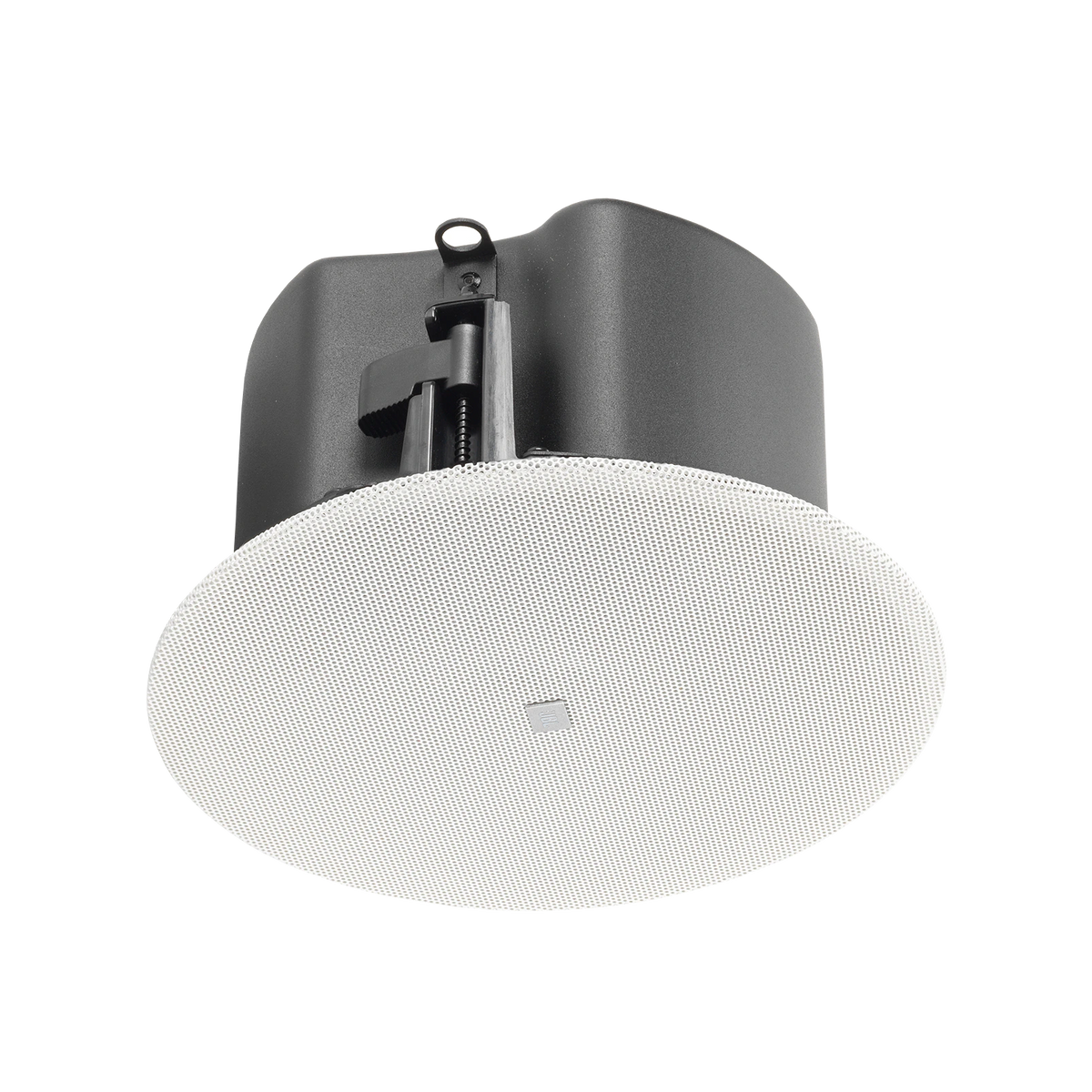

JBL-C414MPT-U - JBL Control 414C/T Micro Plus Standard Coverage Series – Control 41MPCT – Shallow Two-way 4.5", 25W, 160° Coverage, Ceiling Loudspeaker

Overview
The Control 414C/T Micro Plus is a higher-power version of the shallow two-way Micro ceiling loudspeaker from JBL's Control 400 series.

Best for
Retail, restaurants, offices, schools, houses of worship, hospitality, spaces with shallow ceiling voids

Highlights

• Shallow 4.13 in (105 mm) mounting depth
• 25 W continuous capacity with 160 deg conical coverage
• Built-in 70V/100V multi-tap transformer
• Paintable magnetic grille with safety tethers

Key Specs

• Part number: JBL-C414MPT-U
• Model: Control 414C/T Micro Plus
• Drivers: 4 in (100 mm) woofer, 12 mm (0.5 in) PEI dome tweeter
• Power: 25 W continuous (100 W peak)
• Frequency range: 69 Hz - 25 kHz (-10 dB)
• Sensitivity: 85 dB (1 m / 1 W)
• Max SPL: 99 dB continuous (105 dB peak)
• Taps: 70V 25/12/6 W; 100V 25/12 W
• Size: 4.5 in (114 mm) high x 8.0 in (203 mm) diameter; cutout 6.6 in (168 mm)
• Weight: 4.67 lb (2.12 kg)
• Variant: -U suffix
