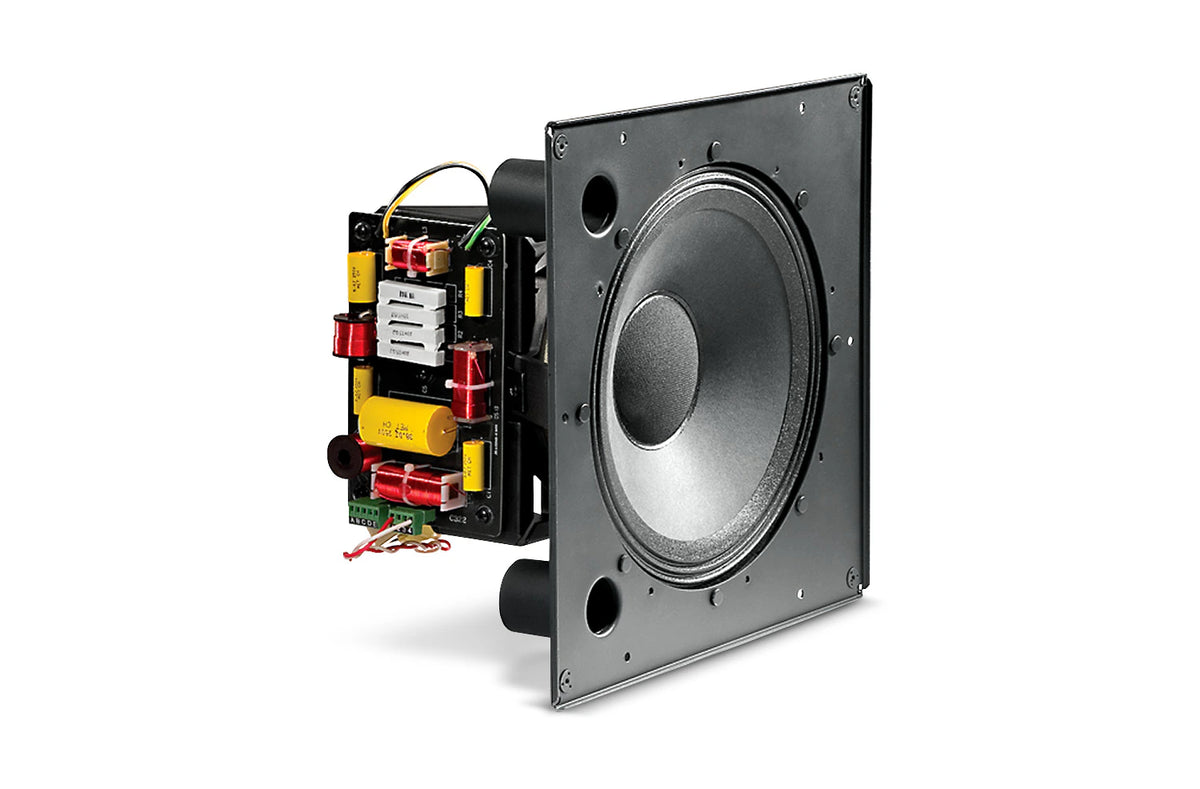

CONTROL 322CT - JBL Control 322CT - Control 322C with pre-attached 100 Watt 70V/100V Multi-Tap Transformer

Overview
The Control 322CT is the Control 322C high-output 12 in coaxial ceiling loudspeaker with a pre-attached 70V/100V multi-tap transformer.

Best for
High-ceiling, high-SPL distributed-line installations

Highlights

• Pre-attached 70V/100V multi-tap transformer (100 W top tap)
• High-output coaxial design with consistent 90 deg pattern control
• 12 in woofer with 1.5 in (37 mm) compression driver
• Optional backbox and grille accessories available

Key Specs

• Part number: CONTROL 322CT
• Model: Control 322CT
• Power: 400 W continuous (1600 W peak)
• Frequency range: 32 Hz - 20 kHz (-10 dB)
• Sensitivity: 95 dB
• Max SPL: 121 dB at 1 m
• Transformer taps: 100 W, 50 W, 25 W, 12.5 W at 70V
• Baffle: 14.4 x 14.4 in (366 x 366 mm); depth 9.4 in (240 mm)
