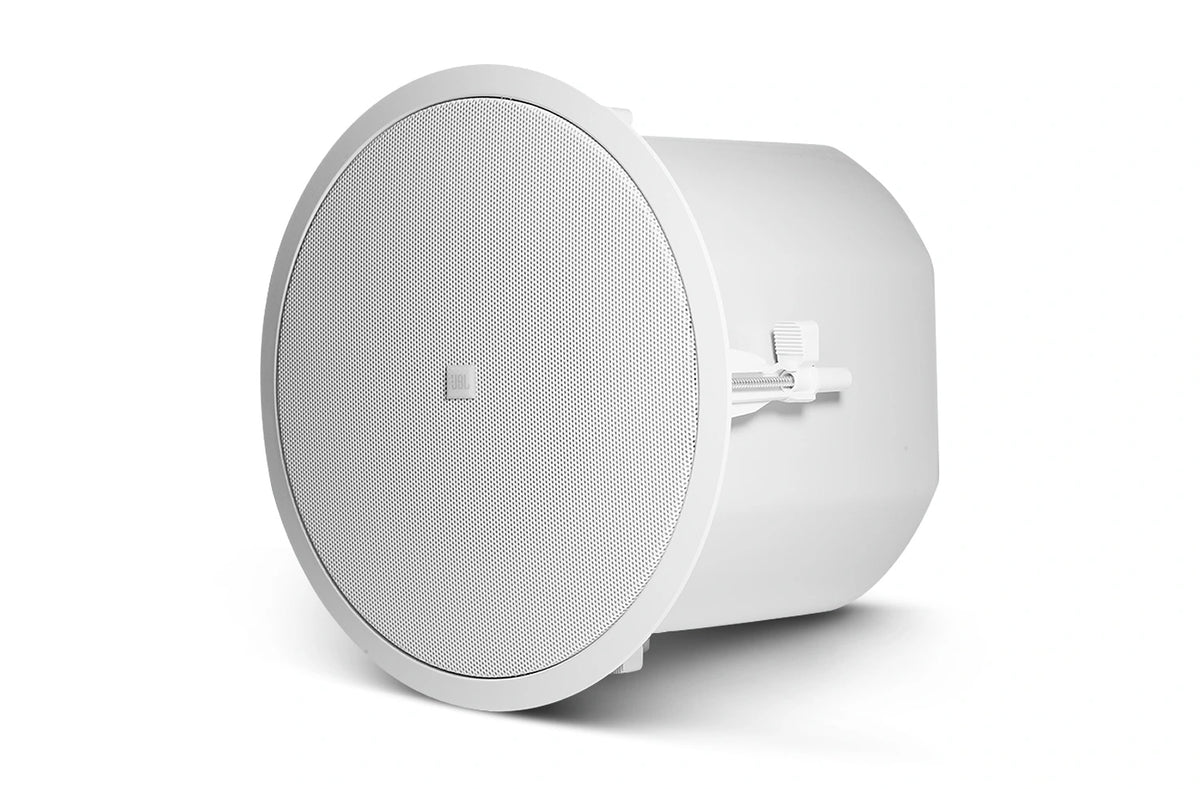

CONTROL 226C/T - JBL Control 226C/T - All-in-One Premium in-ceiling Professional Coaxial Loudspeaker with Consistent 120°

Overview
Control 226C/T is an all-in-one premium in-ceiling coaxial loudspeaker with built-in backcan and a 70V/100V transformer or 8-ohm direct operation.

Best for
Premium commercial ceiling audio: conference rooms, hospitality, retail and houses of worship

Highlights

• Consistent 120 deg broadband pattern control
• Kevlar-reinforced 6.5 in woofer with 1 in titanium compression driver
• 68W 70V/100V multi-tap transformer with 8 ohm direct option
• Integrated backcan; includes C-ring and tile rails
• Sold as each, in pairs

Key Specs

• Part number: CONTROL 226C/T
• Model: Control 226C/T
• Drivers: 6.5 in (165 mm) LF, 1 in (25 mm) titanium compression driver
• Frequency range: 47 Hz - 19 kHz
• Sensitivity: 90 dB
• Power: 150 W continuous pink noise (600 W peak)
• Coverage: 120 deg
• Baffle: 13 in (330 mm) round x 9.7 in (246 mm) deep
• Ceiling cutout: 12.1 in (307 mm)
• Weight: 20 lb (9.1 kg)
