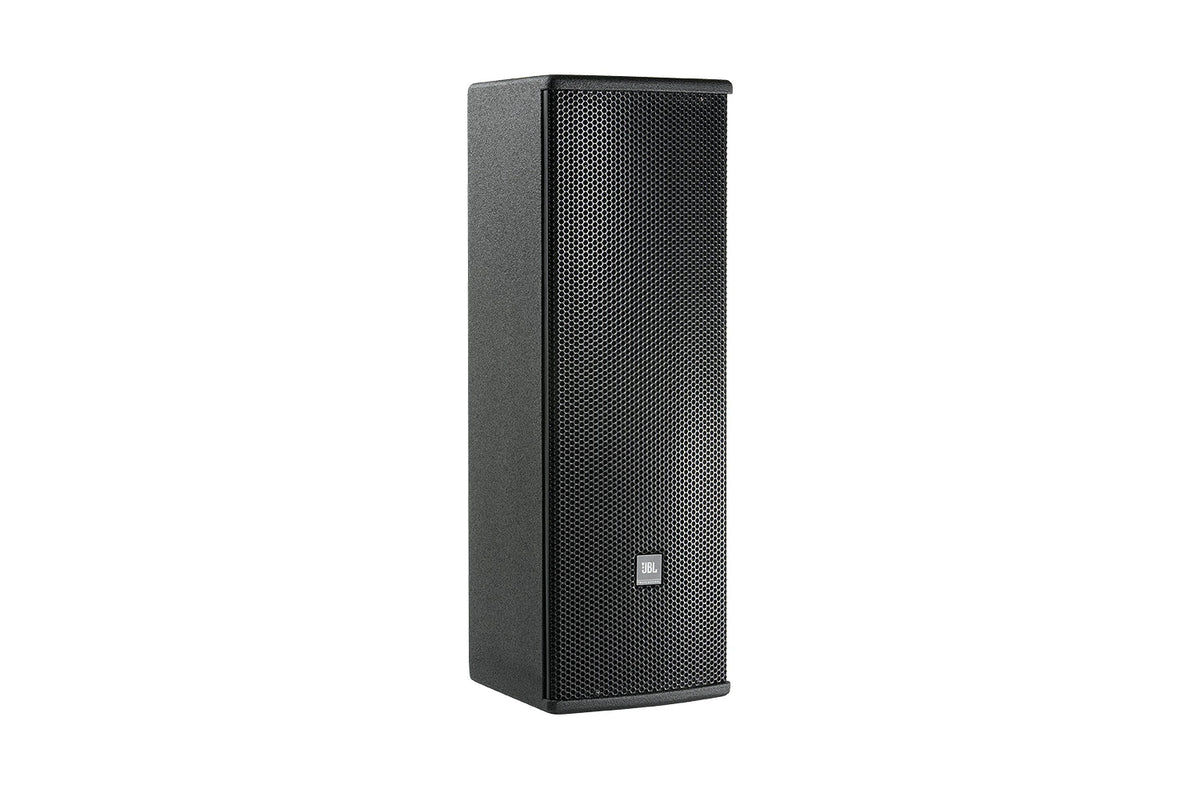

AC28/95 - JBL AC28/95 - Dual 8" 2way

Overview
The AC28/95 is a compact 2-way loudspeaker with dual 8 in woofers and a 90 x 50 degree waveguide, from the JBL AE Series.

Best for
Fixed installations such as theaters, houses of worship, auditoriums, clubs, sports venues and themed venues

Highlights

• 90 x 50 degree coverage (rotatable waveguide)
• Two 8 in low-frequency drivers with 1 in exit compression driver
• FIR tuning for consistent phase and coverage
• Dual Neutrik NL4 connectors plus screw terminals

Key Specs

• Part number: AC28/95
• Model: AC28/95
• Finish: black
• Frequency range (-10 dB): 53 Hz - 20 kHz
• Frequency response (+/-3 dB): 65 Hz - 20 kHz
• Sensitivity (1 W @ 1 m): 94 dB
• Max SPL: 120 dB
• Power rating: 700 W AES
• Impedance: 8 ohms
• Coverage: 90 x 50 degrees
• Dimensions (H x W x D): 26.8 x 9.4 x 10.0 in (680 x 238 x 254 mm)
• Net weight: 40.9 lb (18.6 kg)
