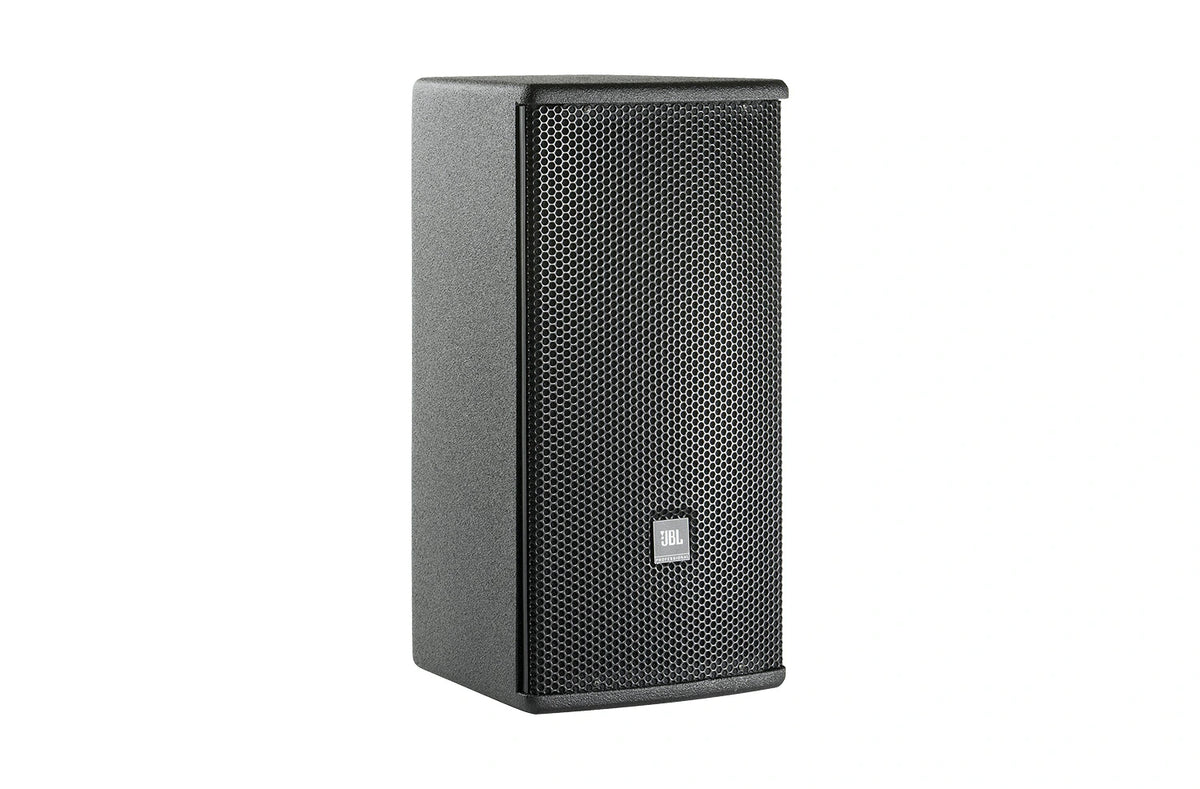

AC18/95 - JBL Compact 2-Way Loudspeaker with 1 x 8" LF. 90° x 50° Coverage, Passive

Overview
The AC18/95 is a compact 2-way loudspeaker with an 8 in woofer and a 90 x 50 degree waveguide, from the JBL AE Series.

Best for
Fixed installations such as theaters, houses of worship, auditoriums, clubs, sports venues and themed venues

Highlights

• 90 x 50 degree coverage with rotatable waveguide
• 8 in low-frequency driver with 1 in exit compression driver
• FIR tuning for consistent phase and coverage
• Dual Neutrik NL4 connectors plus screw terminal
• Mounting points for U-bracket and OmniMount-type brackets

Key Specs

• Part number: AC18/95
• Model: AC18/95
• Finish: black
• Frequency range (-10 dB): 52 Hz - 20 kHz
• Frequency response (+/-3 dB): 63 Hz - 19 kHz
• Sensitivity (1 W @ 1 m): 93 dB
• Max SPL: 117 dB
• Power rating: 250 W continuous / 500 W program / 1000 W peak
• Impedance: 8 ohms
• Coverage: 90 x 50 degrees
• Dimensions (H x W x D): 18.5 x 9.4 x 10.0 in (470 x 238 x 254 mm)
• Net weight: 28.2 lb (12.8 kg)
