AC15 - JBL SM, AC15 5.25" 2way

Overview

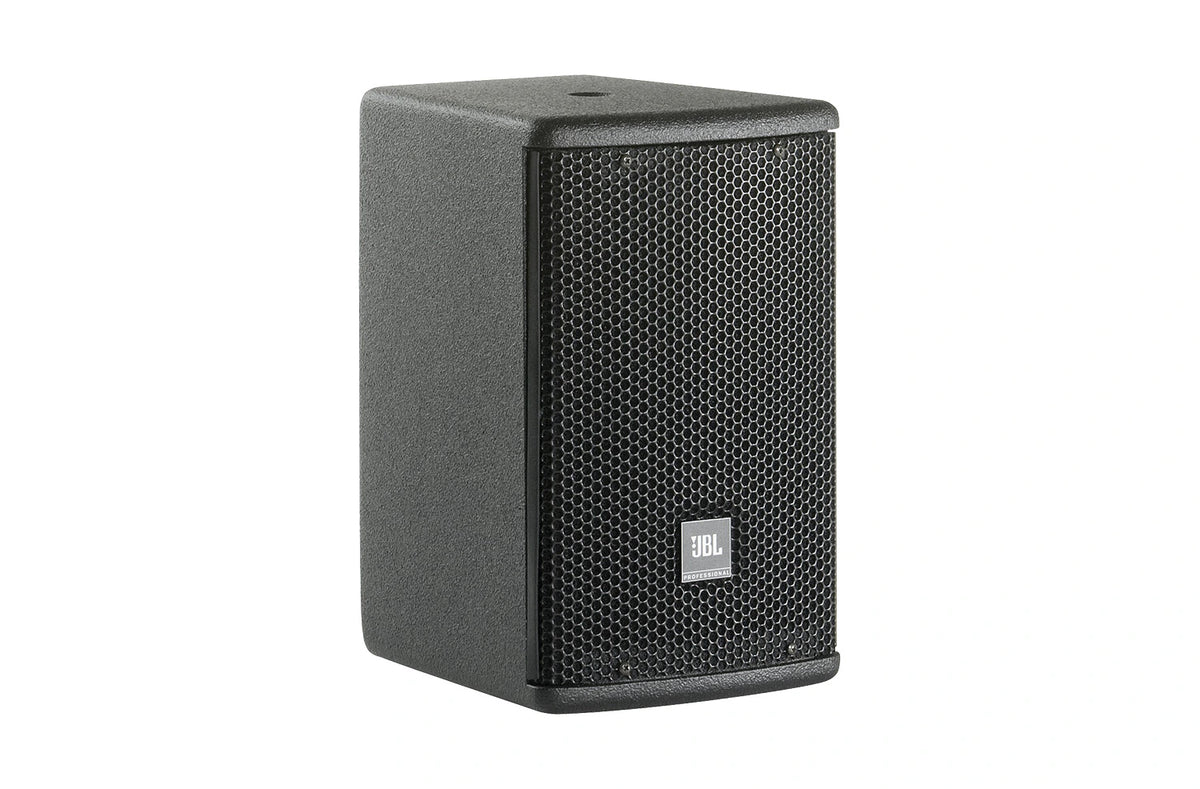

The AC15 is an ultra-compact 2-way loudspeaker with a 5.25 in woofer and 1 in tweeter from the JBL AE Series.

Best for
Small venues, retail, background and fill applications, theaters and worship spaces

Highlights

• 90 x 90 degree coverage
• 5.25 in low-frequency driver with 1 in dome tweeter
• Dual Neutrik NL4 connectors plus screw terminal
• Attachment points for optional U-bracket

Key Specs

• Part number: AC15
• Model: AC15
• Finish: black
• Frequency range (-10 dB): 80 Hz - 20 kHz
• Frequency response (+/-3 dB): 90 Hz - 18 kHz
• Sensitivity (1 W @ 1 m): 86 dB
• Max SPL: 108 dB
• Power rating: 225 W AES
• Impedance: 16 ohms
• Coverage: 90 x 90 degrees
• Dimensions (H x W x D): 9.5 x 5.9 x 7.0 in (241 x 150 x 178 mm)
• Net weight: 10.5 lb (4.7 kg)
