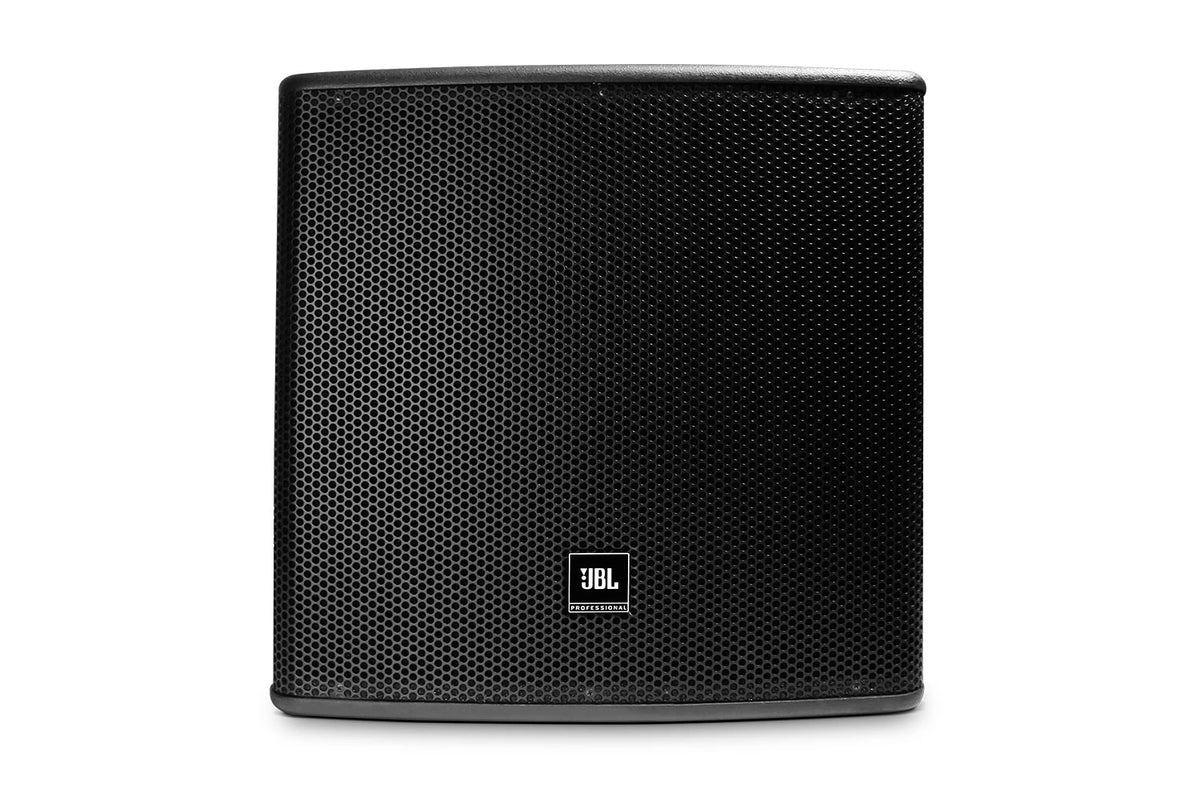

AC118S - JBL 18" Subwoofer with 75mm (3 in) voice coil

Overview
The AC118S is a high-power 18 in vented subwoofer from the JBL AE Application Engineered Series, designed for fixed installations.

Best for
Low-frequency reinforcement in theaters, houses of worship, auditoriums and live venues

Highlights

• Single 18 in woofer with 75 mm (3 in) voice coil in a vented, front-loaded cabinet
• High sensitivity with low power compression
• Large port for high output
• Multiple M10 threaded suspension points
• 18 mm multi-ply hardwood cabinet

Key Specs

• Part number: AC118S
• Model: AC118S
• Finish: black
• Frequency range (-10 dB): 32 Hz - 250 Hz
• Frequency response (+/-3 dB): 40 Hz - 250 Hz
• Sensitivity (1 W @ 1 m): 95 dB
• Max SPL: 122 dB continuous (128 dB peak)
• Power rating: 600 W (2400 W peak) AES
• Impedance: 8 ohms
• Dimensions (H x W x D): 21.5 x 22.0 x 28.3 in (548 x 561 x 720 mm)
• Net weight: 71.2 lb (32.3 kg)
