VSP501 - P5 Beamspot HP (High Power)

Overview

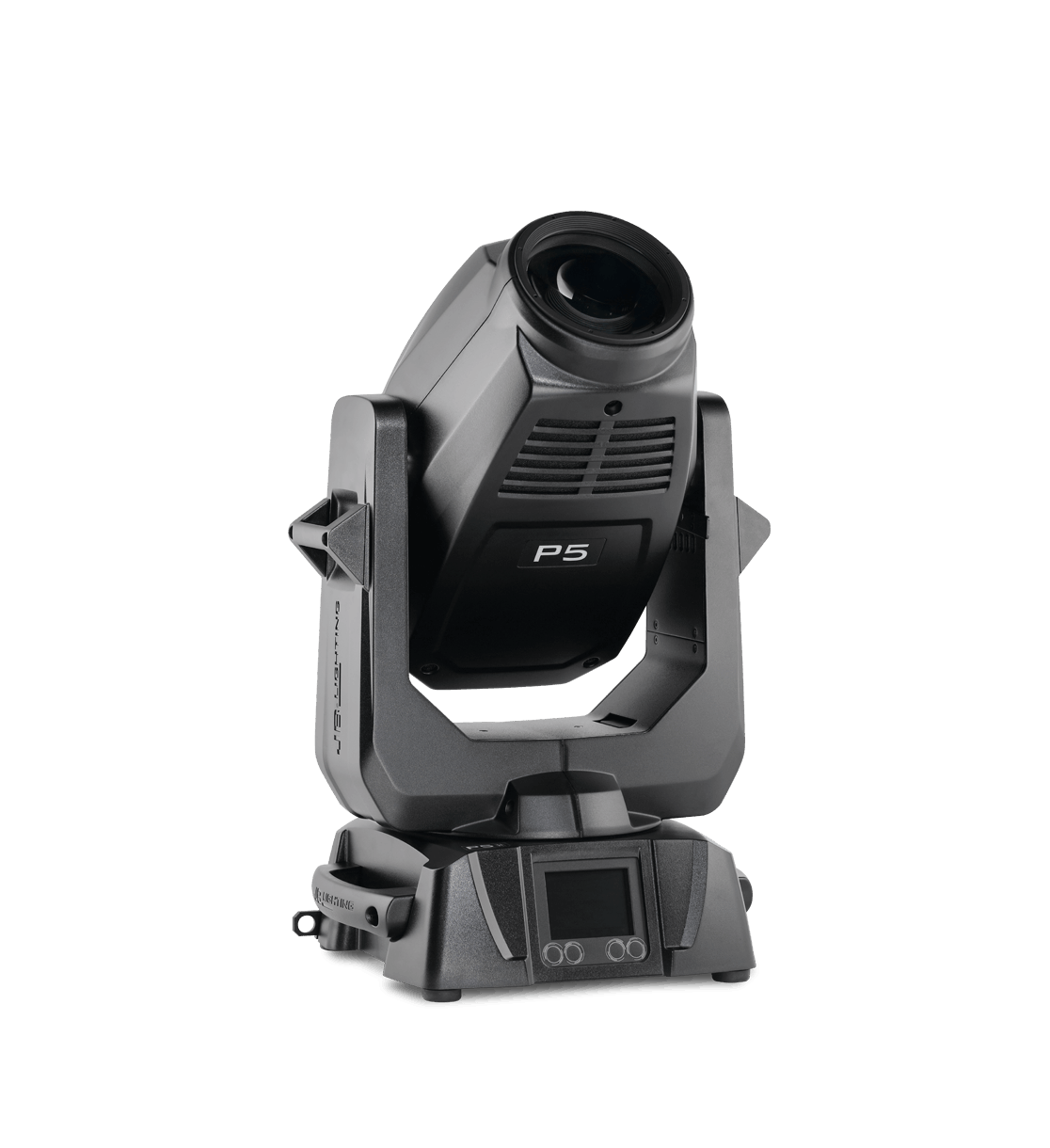

The JB Lighting P5 is a compact 200W LED beamspot moving head, made in Germany. At about 11 kg it packs CMY color mixing, two gobo wheels, a prism and a very wide 2.4° to 50° zoom.

Best for
Touring, TV, clubs and theatres that need a small, quiet spot with a tight beam and a full effects package.

Highlights

• 9,000 lm output from a 200W 6,800K white LED engine
• 2.4° to 50° zoom with a 95 mm front lens
• CMY color mixing plus a color wheel with 8 colors and High CRI, CTO and CTB filters
• Static gobo wheel (11) and rotating gobo wheel (7), 3-facet prism, 5° frost
• Virtual CTC (2,000-13,000K) and virtual green/magenta correction
• Near-silent operation at about 29 dB(A); slide-in modules for service

Key Specs

• Light source: 200W white LED, 6,800K, CRI 74, more than 20,000 hours
• Output: 13,000 lm source, 9,000 lm output
• Pan/Tilt: 541° / 281°
• Control: DMX-512, RDM, Art-Net, sACN, LumenRadio CRMX wireless DMX/RDM
• Connectors: Neutrik 5-pin XLR, etherCON and powerCON TRUE1 in/out
• Power: 200-240V, 50/60 Hz, 350 VA max
• Dimensions: 12.4 x 20.0 x 9.5 in (314 x 507 x 241 mm) W x H x D
• Weight: 24 lbs (10.9 kg)
• Warranty: 2 years on the fixture, 4 years on the LED module

Please note: the P5 runs on 200-240V only. It does not accept 120V power.
