VCP156 - P15 Wash HP (High Power)

Overview

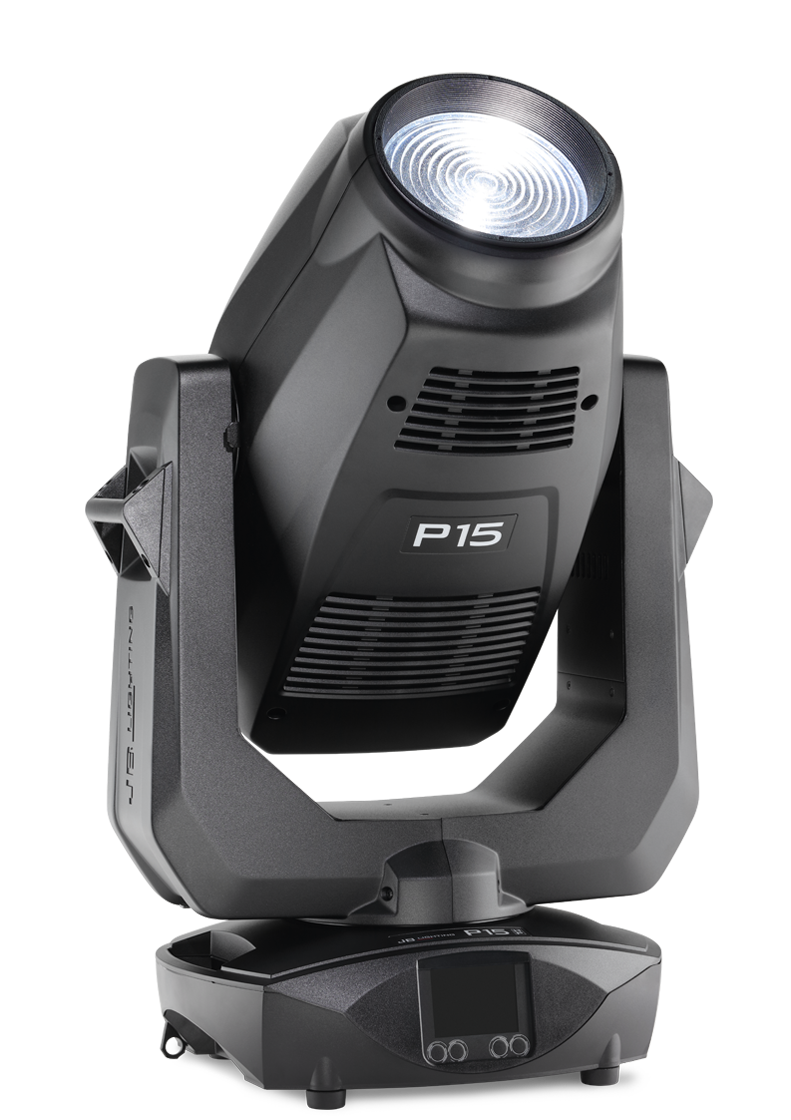

The JB Lighting P15 Wash HP (High Power) is a 1,000W LED fresnel wash moving head with framing, made in Germany. This version uses a 7,000K LED engine with linear CTO 7,000K to 3,200K.

Best for
Theatres, opera houses and TV studios that need a bright, very quiet fresnel wash with framing.

Highlights

• 34,000 lm output, CRI 73
• 9° to 66° zoom with a 135 mm fresnel lens
• Framing module with 4 blades, each ±30°, module rotates 130°
• CMY color mixing, color wheel with 6 colors plus High CRI and CTB filters, virtual CTC and green/magenta
• 18-fin high-speed iris, variable frost, animation/sparkle effect
• Very quiet at 29 dB(A), slide-in modules

Key Specs

• Light source: 1,000W white LED, 7,000K, more than 20,000 hours
• Output: 75,000 lm source, 34,000 lm output
• Color correction: linear CTO 7,000K to 3,200K
• Pan/Tilt: 540° / 280°
• Control: DMX-512, RDM, Art-Net, sACN, LumenRadio CRMX wireless DMX/RDM
• Connectors: Neutrik 5-pin XLR, etherCON and powerCON TRUE1 in/out
• Power: 100-240V, 50/60 Hz, 1,100 VA max
• Dimensions: 16.6 x 26.9 x 10.4 in (421 x 682 x 264 mm) W x H x D
• Weight: 50.7 lbs (23 kg)
• Warranty: 2 years on the fixture, 4 years on the LED module
