VCP106 - P10 Wash HP (High Power)

Overview

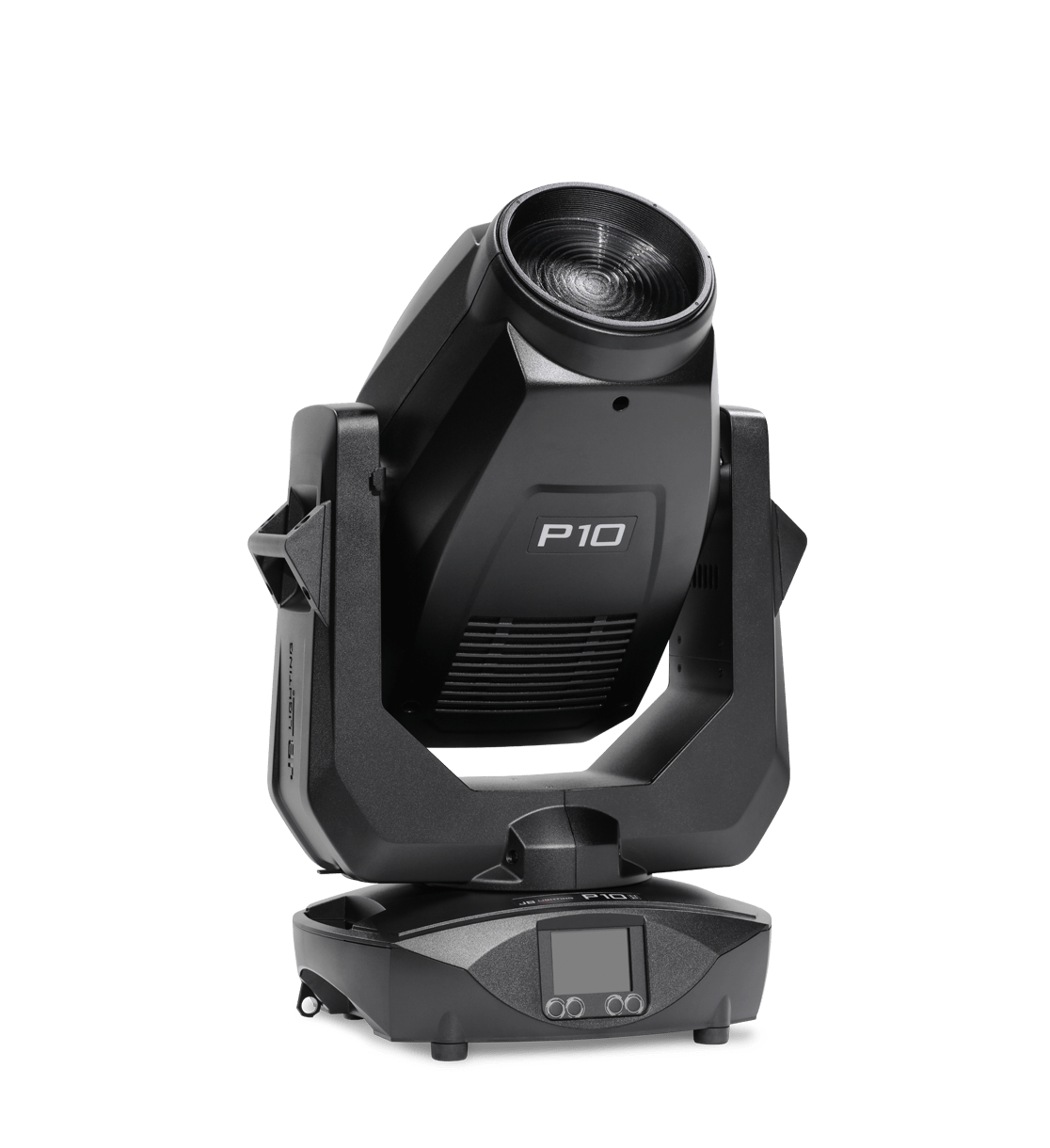

The JB Lighting P10 Wash HP (High Power) is a compact 330W LED fresnel wash moving head with framing, made in Germany. This version uses a 7,200K LED engine with linear CTO 7,200K to 3,200K.

Best for
Theatres, studios and touring rigs that need a soft-edge fresnel wash that can also be shaped with framing blades.

Highlights

• 15,000 lm output, CRI 70 or more (90 or more with filter)
• 12° to 70° zoom with fresnel lens
• Framing module with 4 motorized blades, rotates 130°
• CMY color mixing, two color wheels (5 colors and 7 correction filters), linear CTO and CTB
• Rotating gobo wheel (7), soft-edge and flood frost, high-speed iris, sparkle effect
• Near-silent at 29 dB(A), slide-in modules

Key Specs

• Light source: 330W white LED, 7,200K, more than 20,000 hours
• Output: 25,000 lm source, 15,000 lm output
• Pan/Tilt: 540° / 280°
• Control: DMX-512, RDM, Art-Net, sACN, LumenRadio CRMX wireless DMX/RDM
• Connectors: Neutrik 5-pin XLR, etherCON and powerCON TRUE1 in/out
• Power: 100-240V, 50/60 Hz, 490 VA max
• Dimensions: 15.7 x 24.0 x 10.4 in (398 x 609 x 264 mm) W x H x D
• Weight: 37.5 lbs (17 kg)
