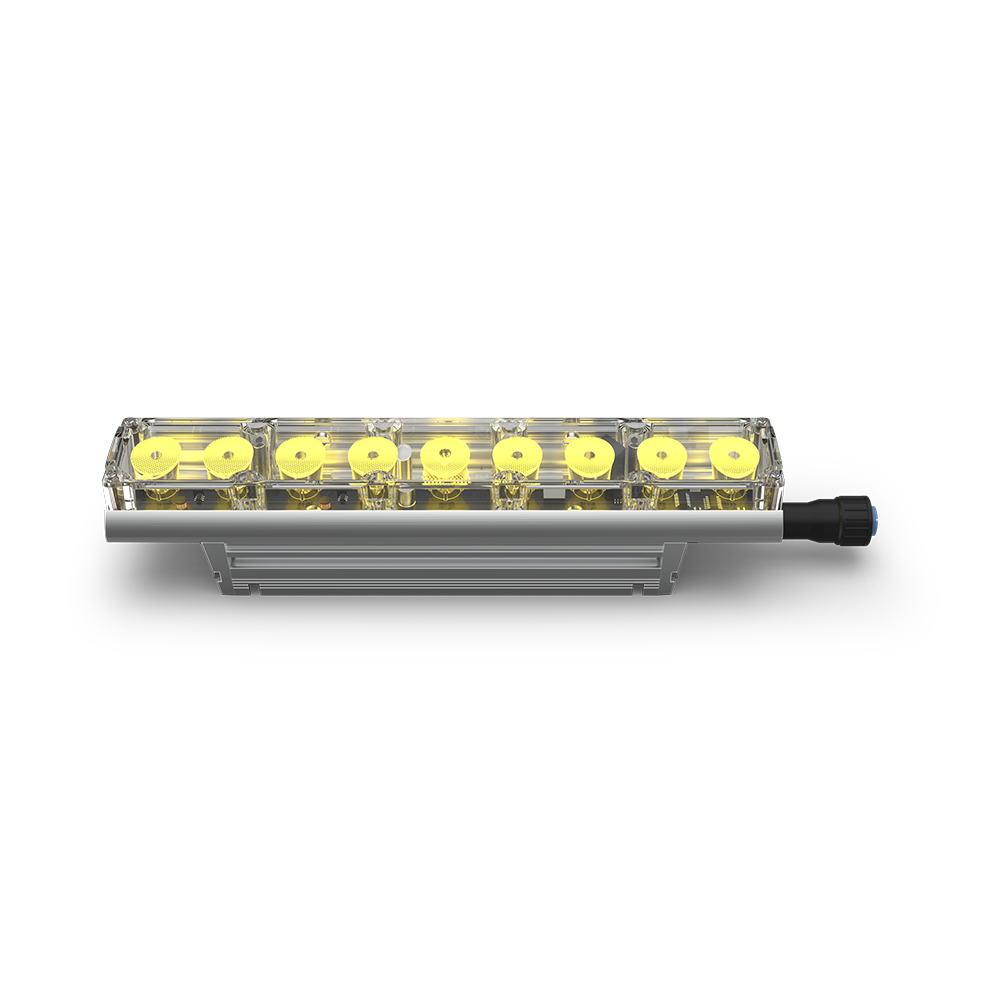

Ilumiline SL

Overview
The Ilumiline SL is the compact 12-inch member of Iluminarc's Ilumiline linear LED family, using 9 quad-color (RGBL) LEDs in an IP66 aluminum batten. It shares the ML model's color engine and control set in a shorter footprint suited to tighter installations.

Best for
Short-run linear grazing, coves, and accent lighting where space is limited but full color mixing and outdoor durability are still needed.

Highlights

• 9 quad-color (RGBL) LEDs for a wide color gamut and smooth pastels
• IP66-rated housing suited to outdoor and wet-location installs
• USITT DMX-512a/RDM control
• Accepts optional snap-on spread filters to reshape the beam
• 50,000-hour rated LED life

Key Specs

• Light source: 9 x 3.5 W quad-color (RGBL) LEDs
• Output: 808 lumens with installed optics
• Beam angle: 14.5° standard (24.1°–38.5° with optional filters)
• IP rating: IP66
• Control: USITT DMX-512a, RDM
• Power: 100–277 VAC, 50/60 Hz, 21–23 W
