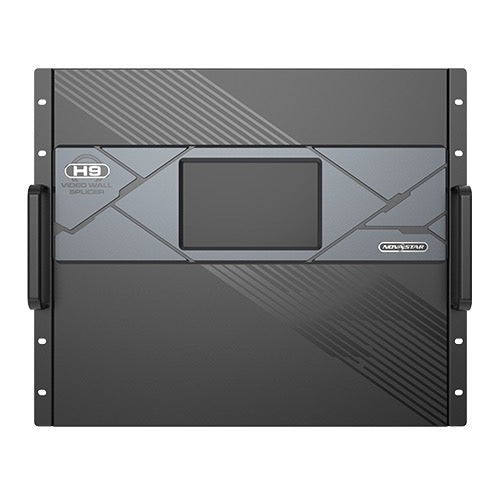

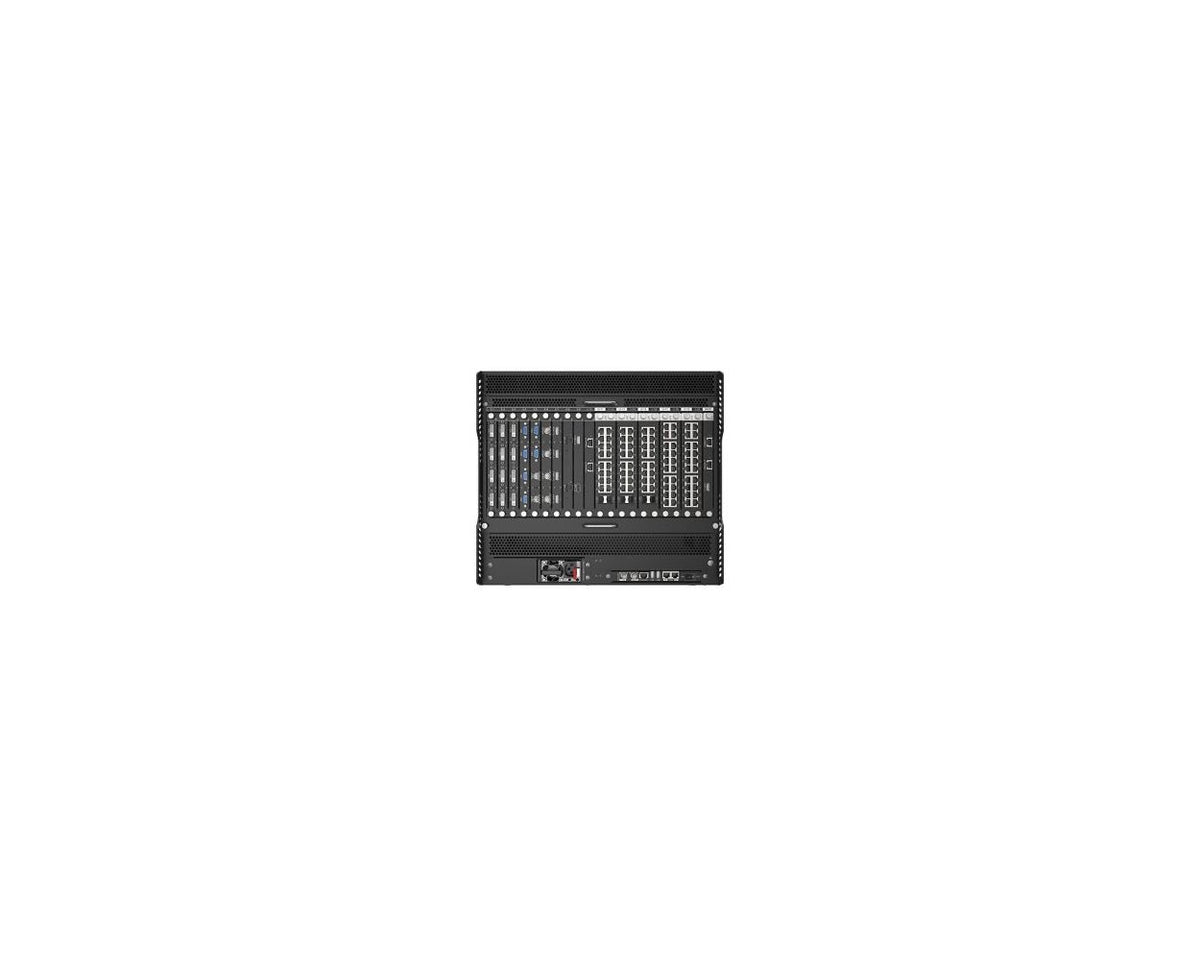

H9 Rack - NovaStar H9 rack

Overview
NovaStar H9 video wall splicer chassis designed for fine-pitch LED displays. It can run as a splicer that combines video processing and sending, or as a pure splicing processor. Input and output cards are sold separately.

Best for
Fine-pitch LED video walls and multi-screen systems with many input sources.

Highlights

• Modular design with hot-swappable input and output cards
• Up to 15 input cards and 60 input channels
• Up to 80 layers
• Input mosaic of up to 100 IP cameras
• Automatic HDCP decryption, multi-screen management and web-based control

Key Specs

• Input cards: Up to 15
• Input channels: Up to 60
• Output cards: Up to 5
• Loading capacity: Up to 65,000,000 pixels
• Layers: Up to 80
• Power: 100-240 V AC, 50/60 Hz
• Power draw: 450 W
• Dimensions: 19.0 x 21.0 x 16.0 in (482.6 x 533 x 405.8 mm)
• Weight: 77.2 lb (35 kg)
• Package includes: Chassis only; input and output cards sold separately
