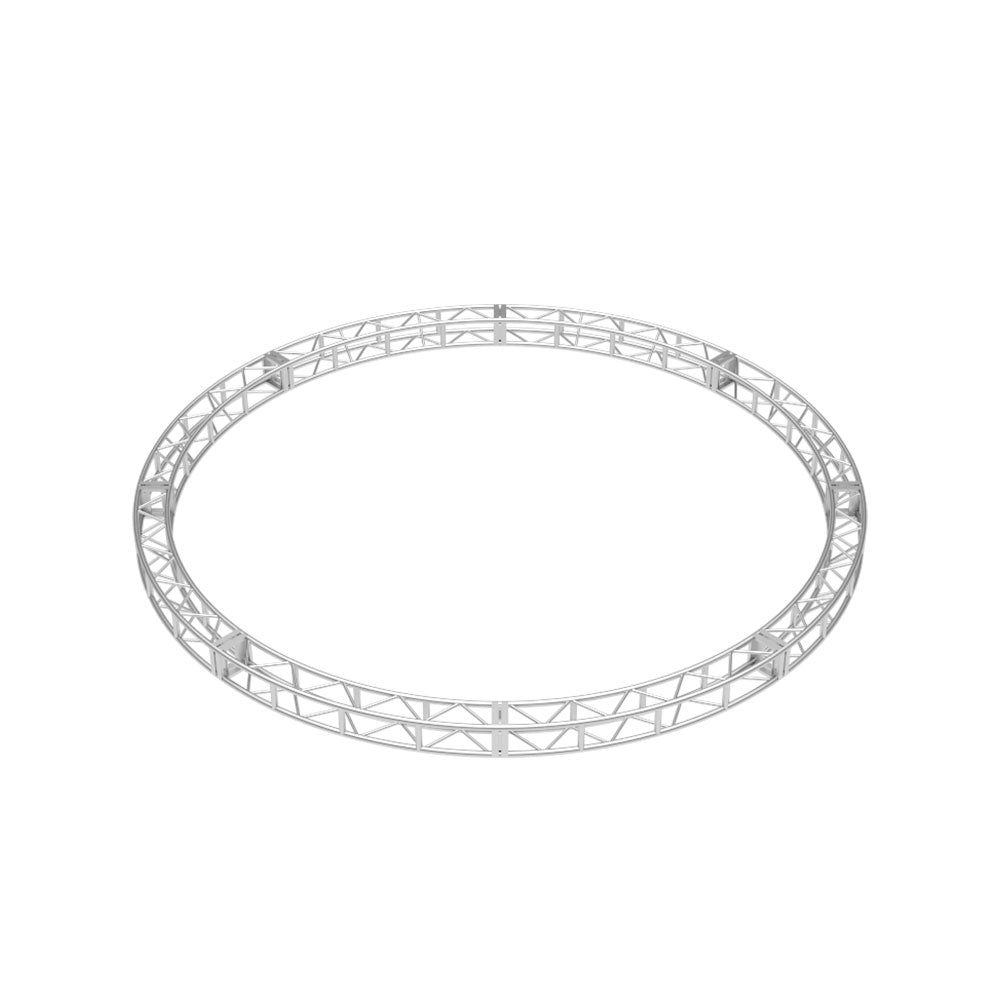

Global Truss DT-GP20-45C-KIT 12" End Plate Truss Circle - 20 ft (6.10 m) OD, 8 x 45° Arcs
Regular price
$8,699.00 USD
Sale price
Regular price
Overview
A complete 20 ft outside-diameter circle kit in 12" DuraTruss DT-GP bolt-together end-plate truss, made up of 8 45-degree arc segments.
Compatible with
DuraTruss DT-GP 12" end-plate truss
Highlights
- Bolt-together end-plate connection
- Aluminum construction
- Connecting hardware included
Key Specs
- Outside diameter: 20 ft (6.10 m)
- Inside diameter: 18 ft (5.49 m)
- Overall truss width: 12" (305 mm)
- Arc segments: 8 x 45° (8x DT-GP20-45ARC)
- Main tubing: 1.96" (50 mm) OD x 0.11" (3 mm) wall
- Diagonal bracing: 0.98" (25 mm) OD x 0.08" (2 mm) wall
- Hardware: 5/8" Grade 8 bolts, nuts and washers included
- Weight: 384 lb (174 kg)
- Part number: DT-GP20-45C-KIT
Free Domestic Shipping
On every order shipped within the US
