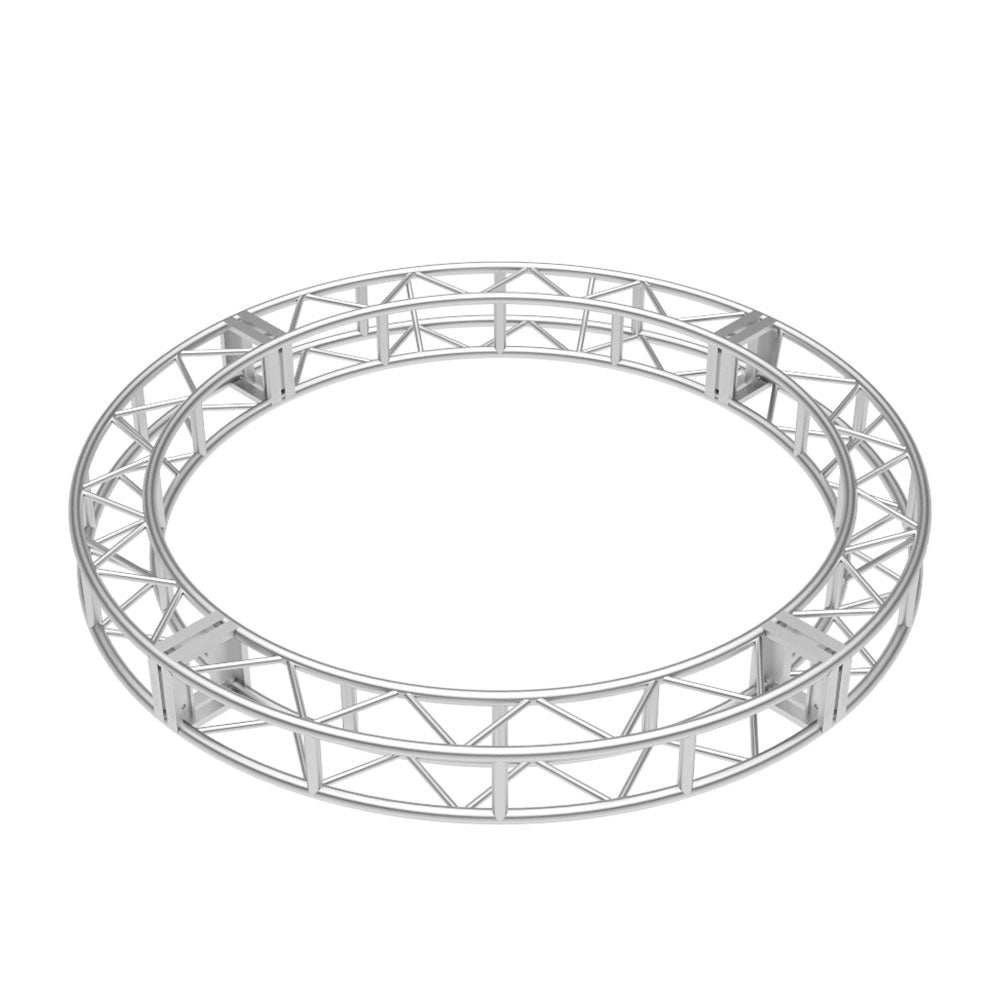

Global Truss DT-GP10-90C-KIT 12" End Plate Truss Circle - 10 ft (3.05 m) OD, 4 x 90° Arcs
Regular price
$4,350.00 USD
Sale price
Regular price
Overview
A complete 10 ft outside-diameter circle kit in 12" DuraTruss DT-GP bolt-together end-plate truss, made up of 4 90-degree arc segments.
Compatible with
DuraTruss DT-GP 12" end-plate truss
Highlights
- Bolt-together end-plate connection
- Aluminum construction
- Connecting hardware included
Key Specs
- Outside diameter: 10 ft (3.05 m)
- Inside diameter: 8 ft (2.44 m)
- Overall truss width: 12" (305 mm)
- Arc segments: 4 x 90° (4x DT-GP10-90ARC)
- Main tubing: 1.96" (50 mm) OD x 0.11" (3 mm) wall
- Diagonal bracing: 0.98" (25 mm) OD x 0.08" (2 mm) wall
- Hardware: 5/8" Grade 8 bolts, nuts and washers included
- Weight: 196 lb (89 kg)
- Part number: DT-GP10-90C-KIT
