GeNetix DIN DMX to 0-10v
Regular price
$400.00 USD
Sale price
Regular price
Overview

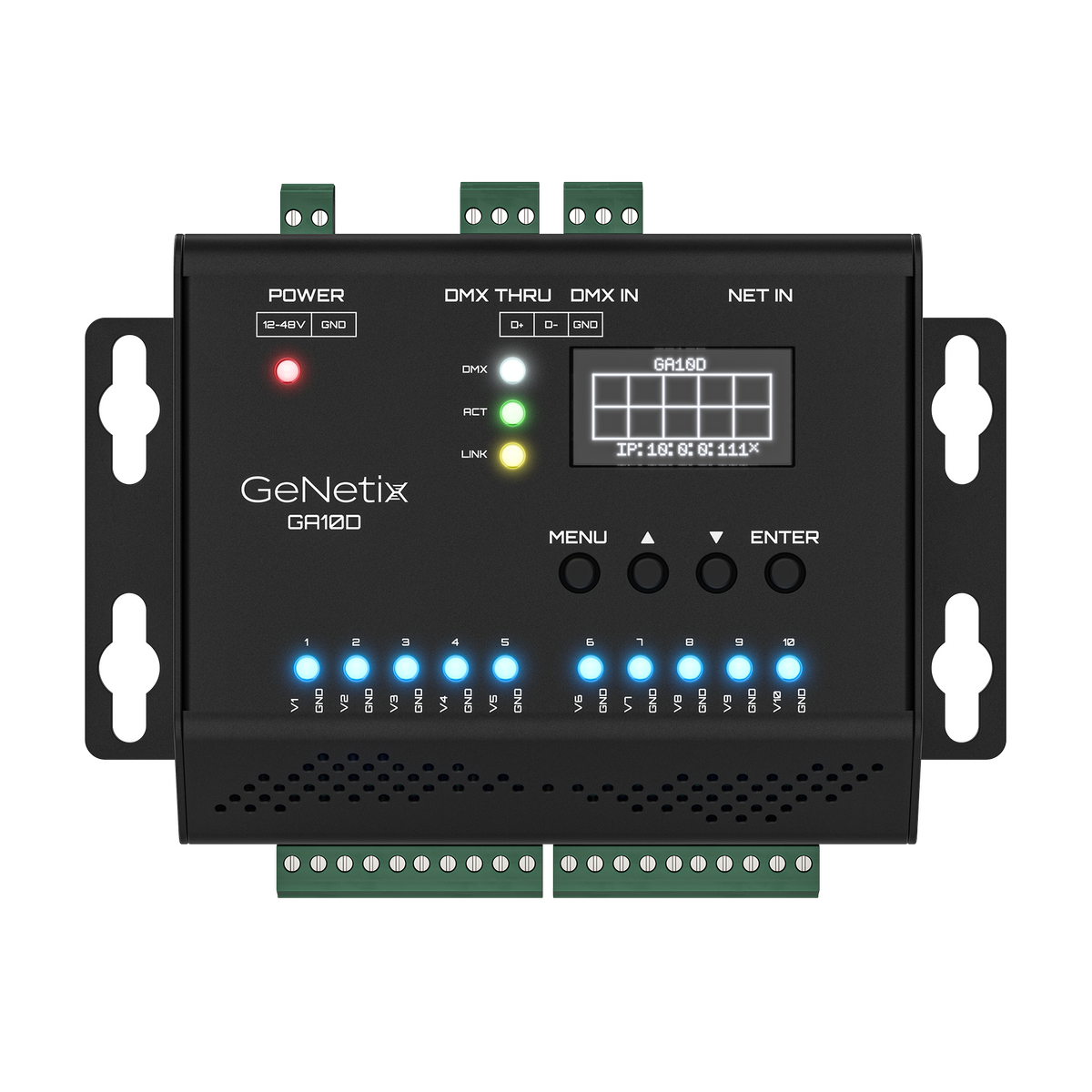

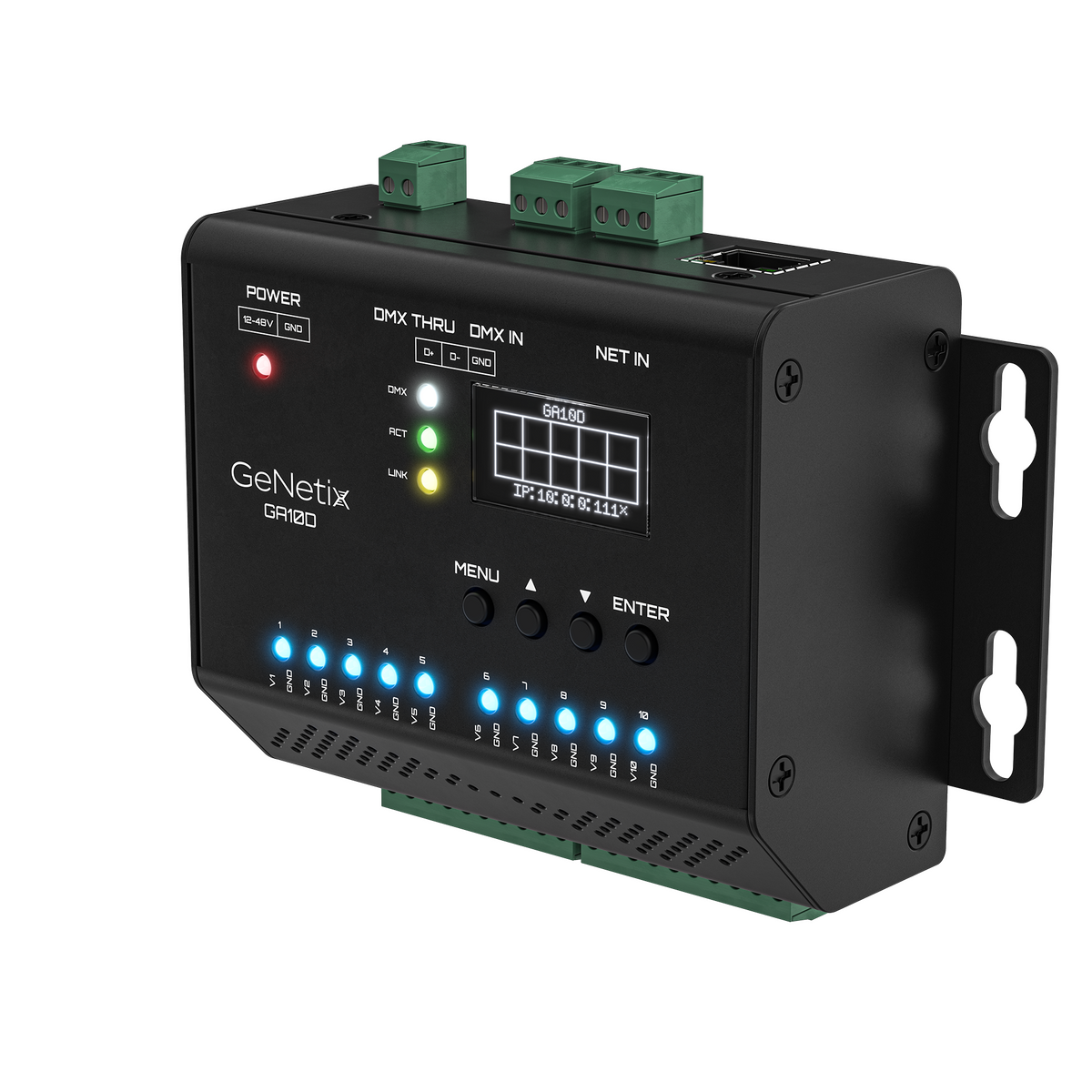

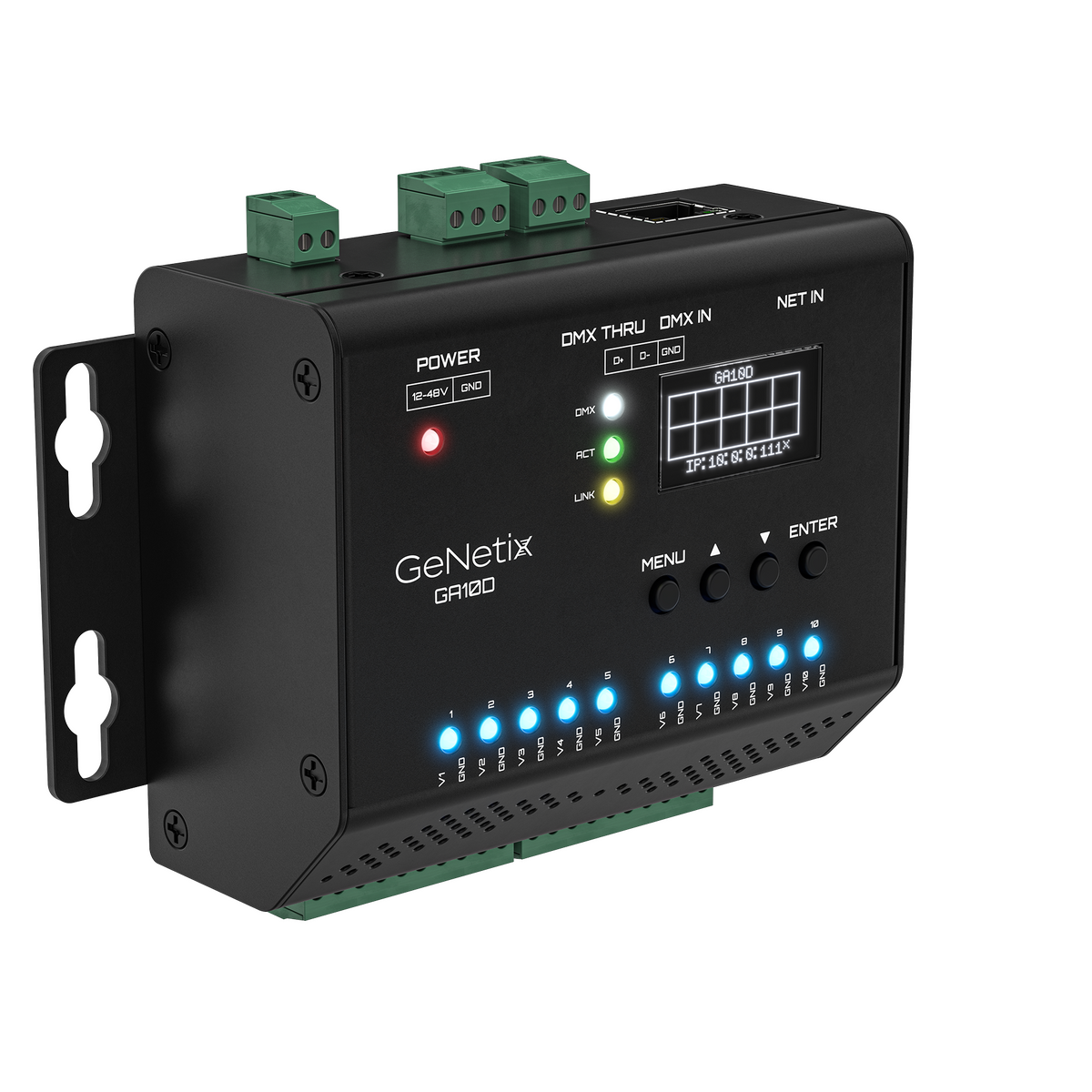

A DIN-rail mountable 10-port converter (GeNetix GA10D) that turns incoming DMX, Art-Net or sACN data into ten independent 0-10V analog control outputs, wired to phoenix screw terminals for permanent installation.
Best for
Driving legacy 0-10V dimmable ballasts, relays or drivers from a modern lighting control network in fixed installations.
Highlights
- 10 analog 0-10V outputs, 20 mA rated per port
- Accepts DMX, Art-Net and sACN input
- Onboard menu display with push-button navigation for configuration
- Port-status LEDs
- DIN-rail mount with phoenix terminal-block wiring
Key Specs
- Outputs: 10 x 0-10V
- Input protocols: DMX, Art-Net, sACN
- Power: external 12-48V (sold separately)
- Mount: DIN rail, phoenix terminals
