EVS3-7X4 - 28 pcs EVS3 video system

Overview
A complete 7 x 4 LED video wall package built from 28 ADJ EVS3 3.91 mm pixel pitch panels, for a display of approximately 140" x 80" (12 ft x 7 ft). It includes the panels, a NovaStar VX400 processor, data and power cabling and rigging bars.

Best for
Temporary event, stage and rental video walls

Highlights

• 28 EVS3 panels with 3-in-1 RGB SMD2121 LEDs
• NovaStar VX400 video processor included
• Data link and power link cables included
• Rigging/ground stack bars included; panels stack up to 20 high
• Inputs: Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI
• Intended for temporary use only

Key Specs

• Wall size: approx. 140" x 80" (12 ft x 7 ft)
• Pixel pitch: 3.91 mm
• Panel resolution: 128 x 128 (65,536 pixels/m²)
• Brightness: 800 nits
• Viewing angle: 160° H / 140° V
• Panel dimensions: 19.68" x 19.68" x 2.96"
• Panel weight: 16.5 lb

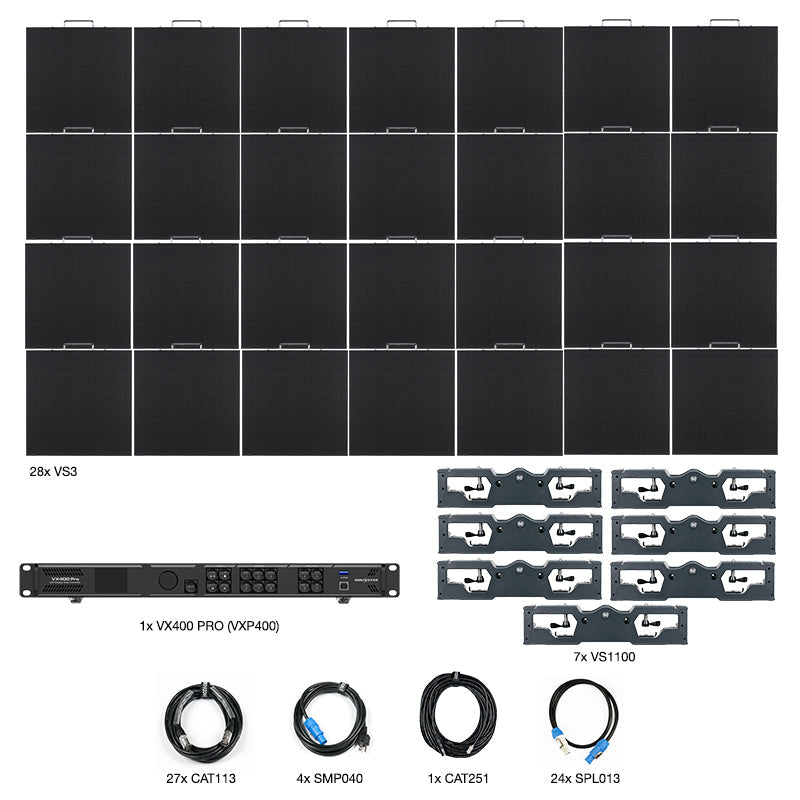

• Package includes: 28 x EVS3 panels, 27 x CAT6PRO3 3 ft data cables, 1 x CAT6S25FC 25 ft processor data cable, 24 x SPLC3 3 ft power link cables, 4 x SMPC15 15 ft power to Edison cables, 1 x NovaStar VX400 processor, 7 x VSRB1 rigging bars
