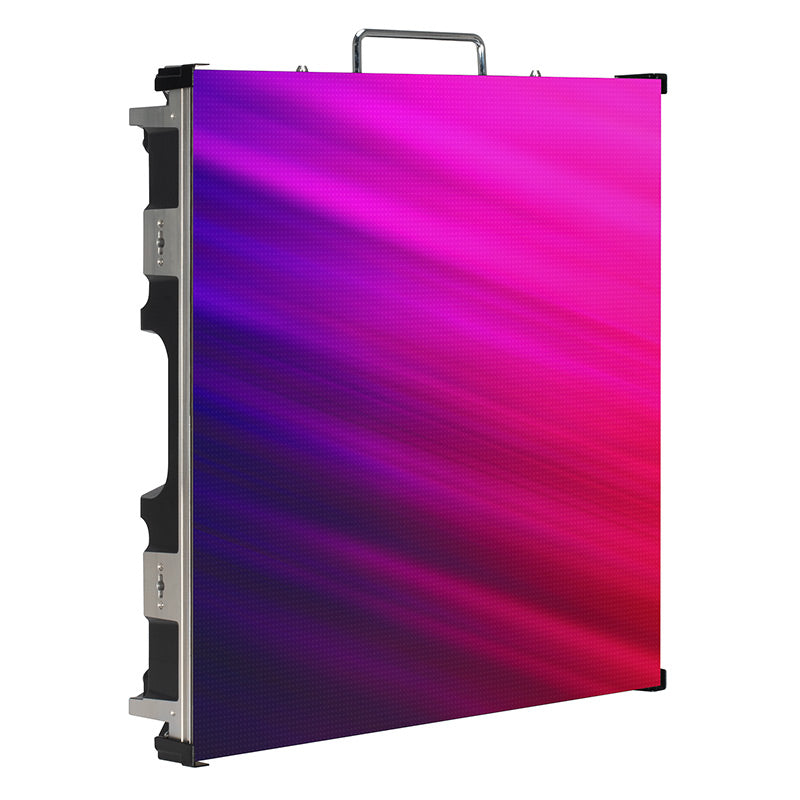

EVS3 - Economical P3 LED video panel

Overview

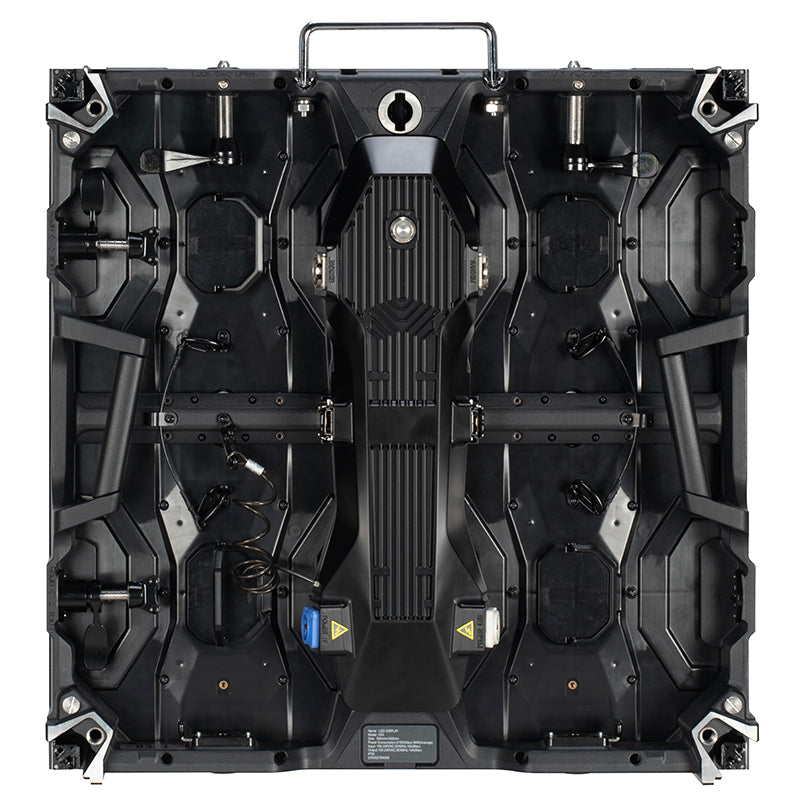

A rugged 3.91 mm pixel pitch LED video panel for temporary video walls. Each 500 x 500 mm panel has four replaceable modules that can be serviced from the front or rear.

Best for
Rental and staging, event backdrops and temporary video wall builds

Highlights

• 3.91 mm pitch with 3-in-1 RGB SMD2121 LEDs

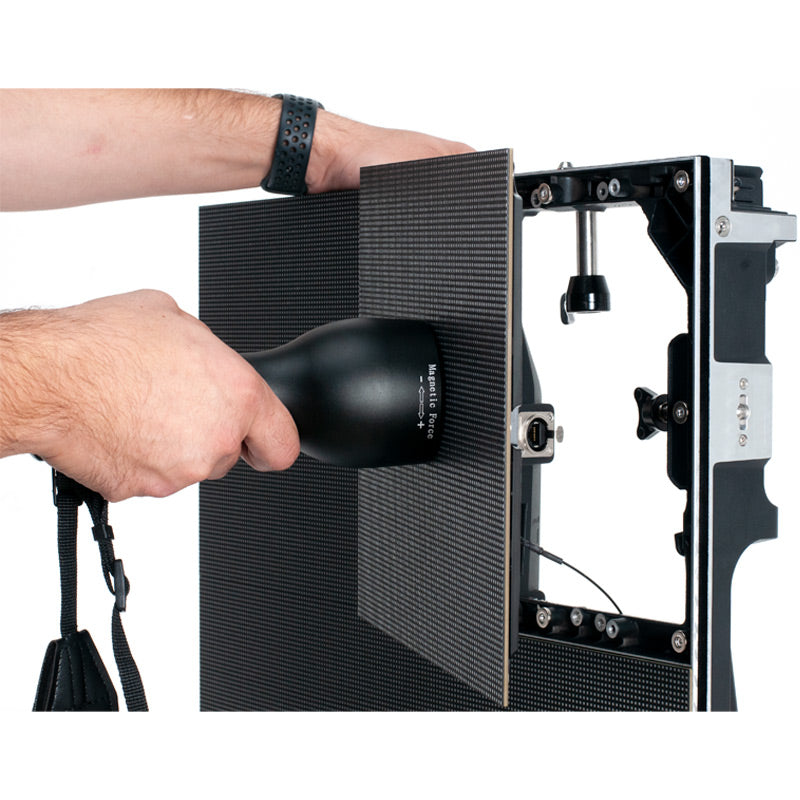

• Four replaceable modules per panel, front and rear serviceable
• Memory on Module (MOM) keeps calibration data with each module
• 800 nit brightness and 3840 Hz refresh rate
• Corner protectors for transport
• Designed for temporary use, not permanent installation

Key Specs

• Pixel pitch: 3.91 mm (0.15")
• Resolution: 128 x 128 per panel (65,536 pixels/m²)
• Brightness: 800 nits
• Viewing angle: 160° H / 140° V
• Refresh rate: 3840 Hz
• Contrast ratio: 5000:1
• Power: 100-240V 50-60 Hz; 120 W max, 48 W average per panel
• IP rating: IP20
• Dimensions: 19.68" x 19.68" x 2.96" (500 x 500 x 75 mm)
• Weight: 16.5 lb (7.5 kg)
