XL23FB - XLR cable connector female 3-pin black housing and grey boot solder cups
Regular price
$2.31 USD
Sale price
Regular price
Overview

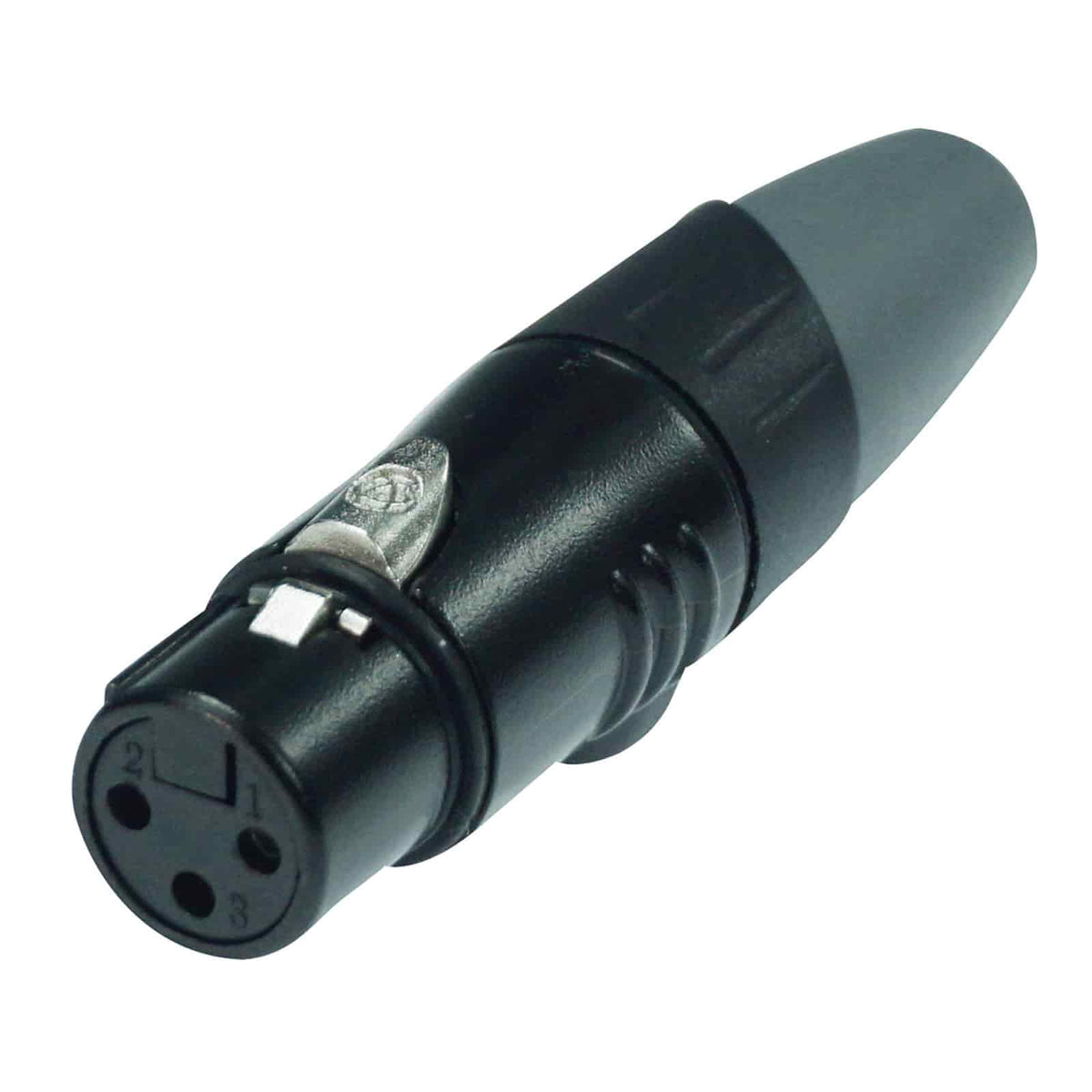

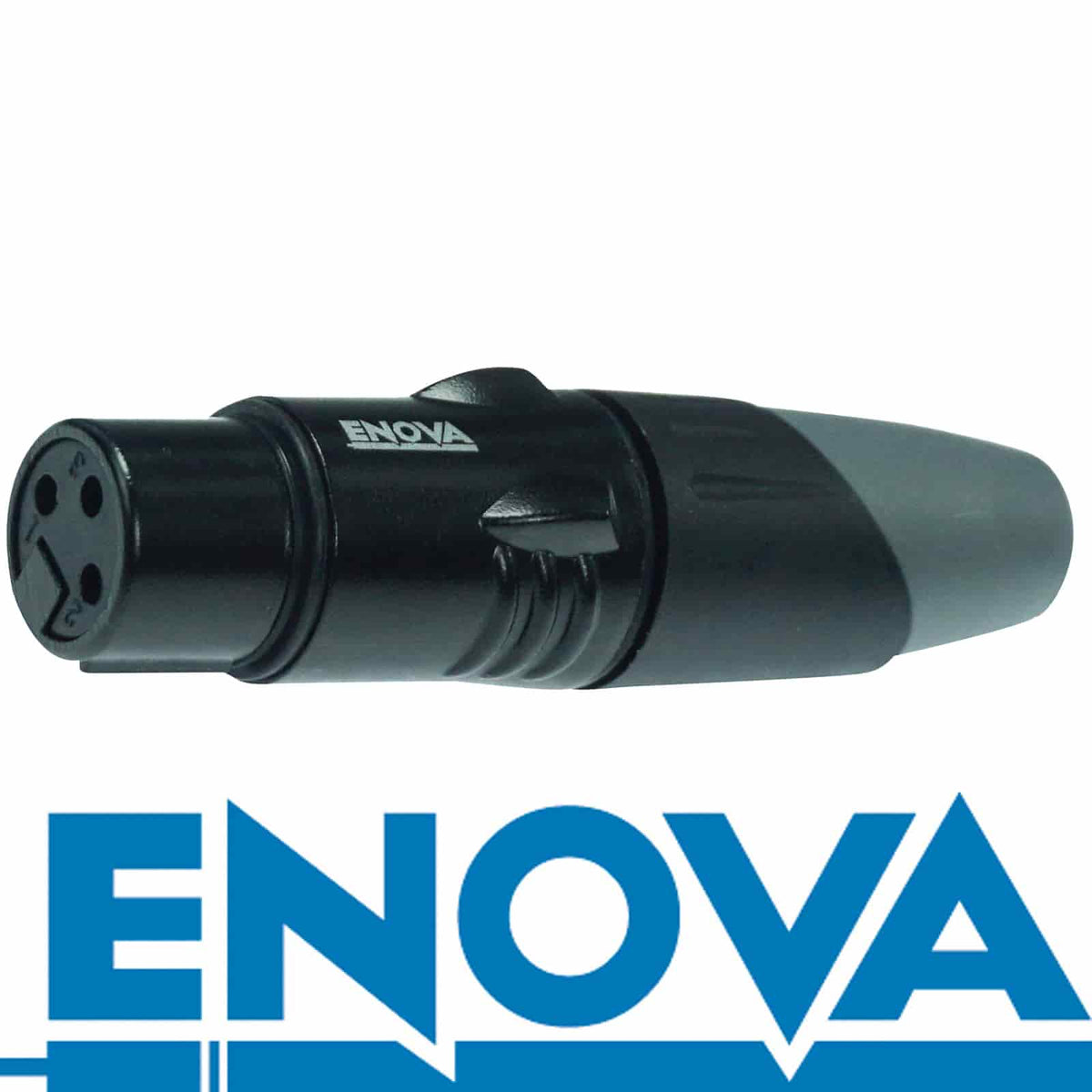

Enova XL series XLR 3-pin female cable connector with a black metal housing, grey boot and solder cups. It has a robust release button and a triple-position cable clamp that keeps the inner cable from twisting and breaking.
Best for
Building or repairing microphone and audio cables.
Highlights
- Removable clamp fits cable from 3.3 to 7.0 mm
- Color-coded boots available (XLBO series)
- Sturdy zinc-alloy metal housing
Key Specs
- Connector: XLR 3-pin female, cable mount
- Termination: Solder cups
- Cable diameter: 3.3 to 7.0 mm
- Housing: Zinc alloy (ZZNAL4-1), black
- Contact resistance: ≤ 3 mΩ
- Insulation resistance: > 10 GΩ
- Plug cycles: 1000
- Operating temperature: -30 °C to +80 °C
- Flammability: UL94HB
- Part number: XL23FB
