PL23MB - 1/4" plug 3 pole stereo black housing and grey boot
Regular price
$2.29 USD
Sale price
Regular price
Overview

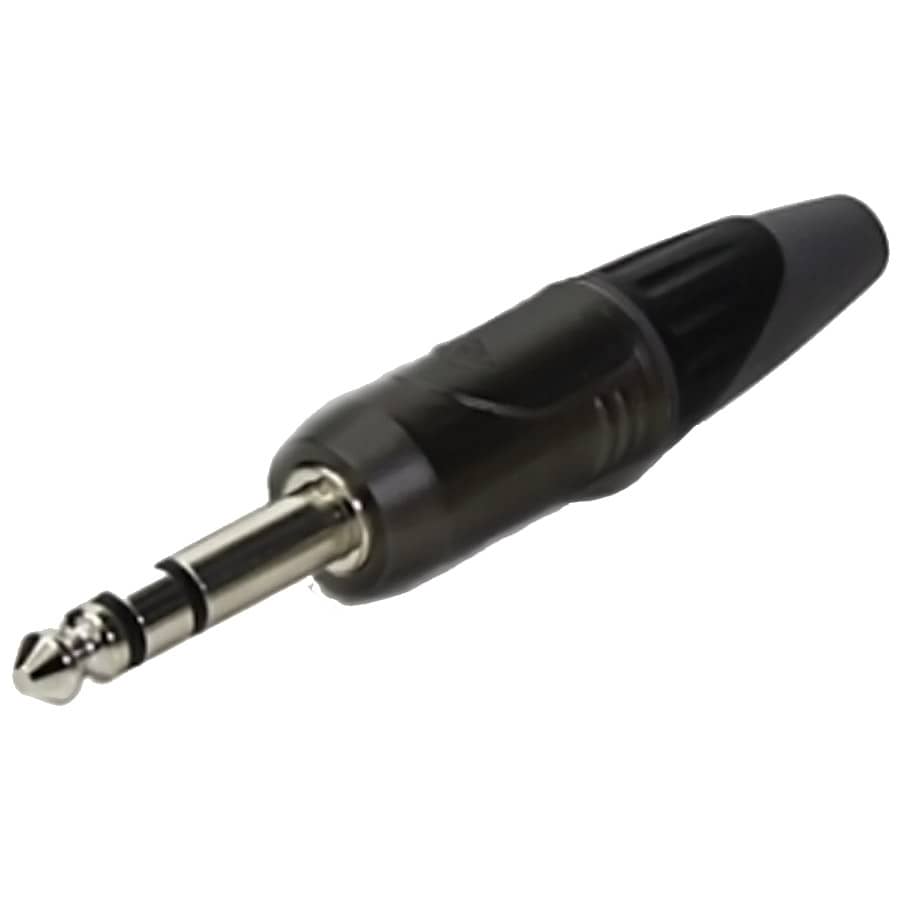

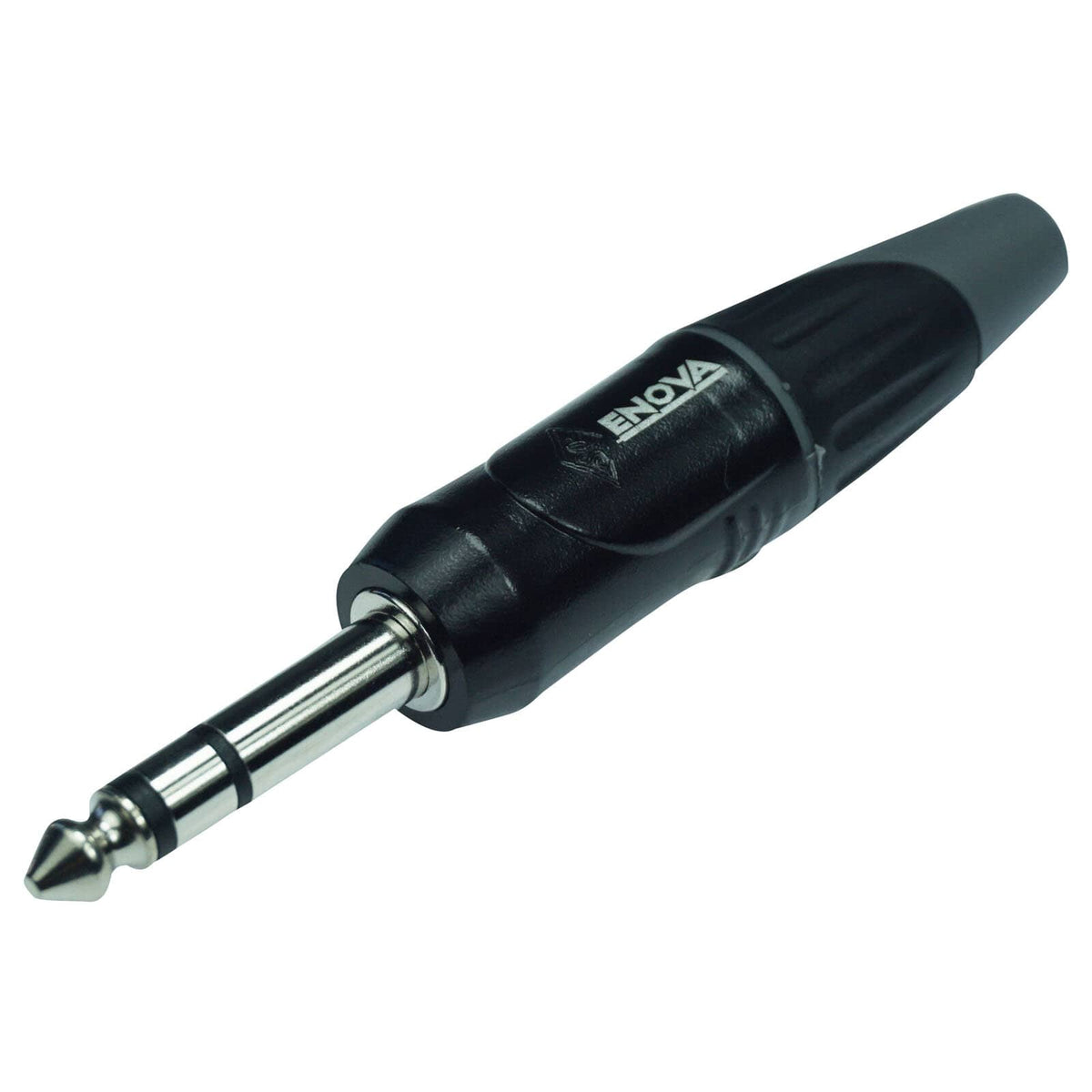

Enova PL series 1/4" (6.35 mm) 3-pole stereo (TRS) jack plug with a black metal housing and grey boot. It has a robust button and a triple-position clamp that keeps the inner cable from twisting and breaking.
Best for
Building or repairing instrument, patch and balanced audio cables.
Highlights
- Removable clamp fits cable from 3.3 to 7.0 mm
- Zinc-alloy metal housing
- Solder termination
Key Specs
- Connector: 1/4" (6.35 mm) 3-pole plug, stereo (TRS)
- Termination: Solder
- Cable diameter: 3.3 to 7.0 mm
- Housing: Zinc alloy (ZZNAL4-1), black
- Contact resistance: ≤ 3 mΩ
- Insulation resistance: > 10 GΩ
- Operating temperature: -30 °C to +80 °C

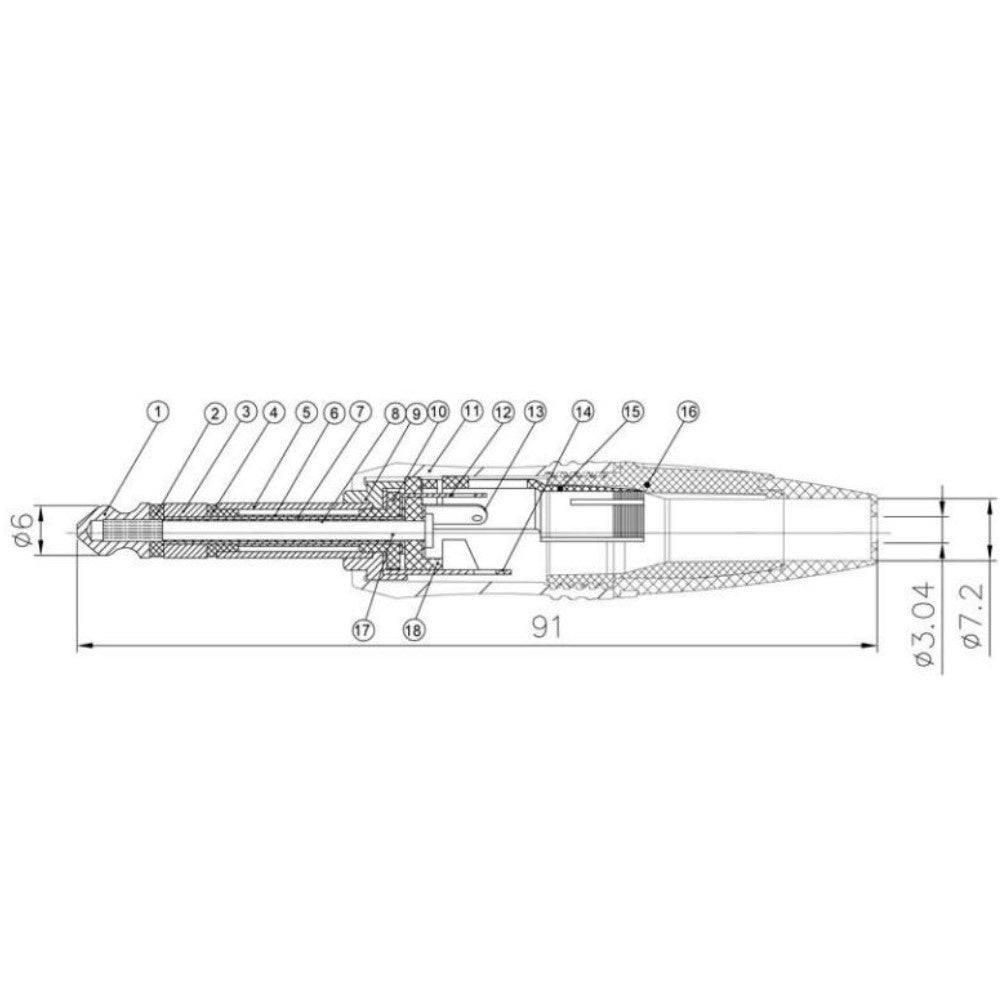

- Dimensions: 92 x 16 x 16 mm
- Part number: PL23MB
