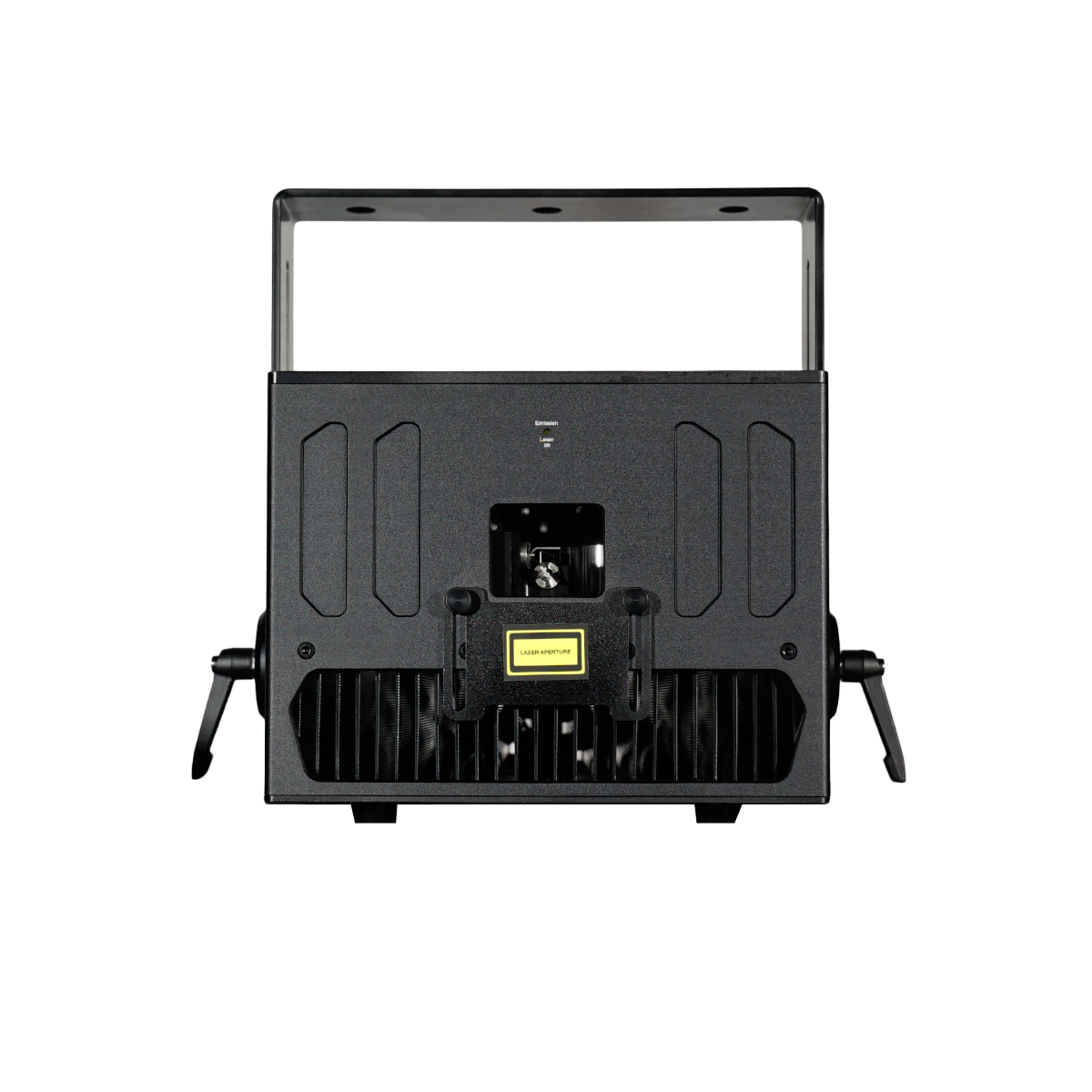

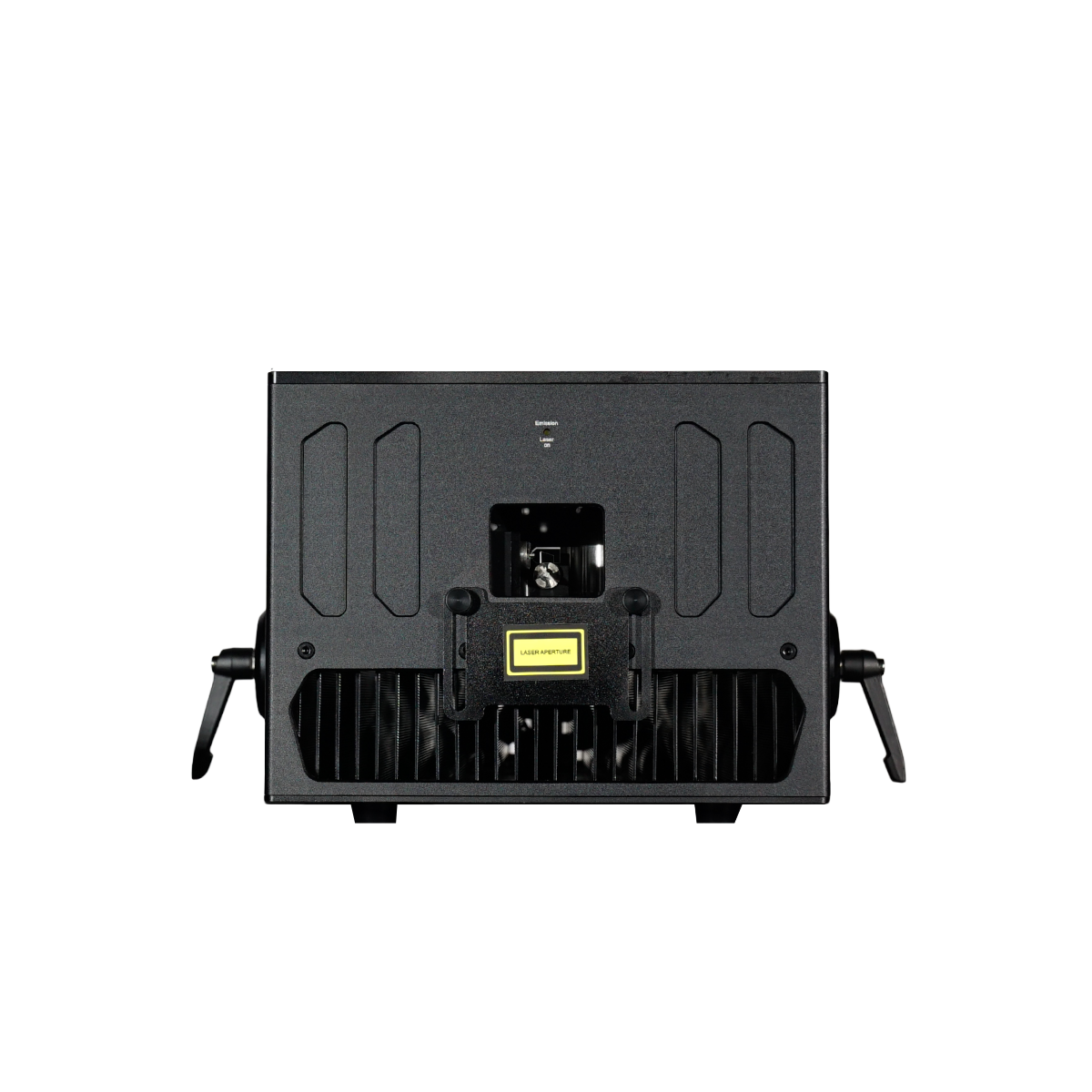

XLS148 - Skywriter HPX M-20 - 20W Pro Laser with Mercury

Overview
The X-Laser Skywriter HPX M-20 is a 20W balanced RGB laser fixture with Mercury control, built for mid-to-large venues, touring and outdoor shows.

Best for
Mid-to-large venues, touring and outdoor shows.

Highlights

• 1,000+ colors, 450+ built-in digital patterns, 11 digital prisms
• 50 color macros and 60 motion macros
• Integrated X-Laser Mercury control with 2.25 inch LCD
• DMX, Art-Net and sACN compatible

Key Specs

• Laser source: 20W balanced RGB, direct-injection diodes (red 638nm 6.5W, green 520nm 6.5W, blue 450nm 8.0W)
• Scanners: closed-loop galvanometers, 30,000 PPS at 8 degree scan angle, 45 degree max scan angle
• Beam divergence: <1.2 mRad
• Dimensions: 14.0 x 13.4 x 7.7 in (12.4 in with yoke up) (355 x 340 x 195 mm)
• Weight: 23 lbs (10.4 kg)
• Power: 400W peak, 90-246V AC auto-switching, Neutrik powerCON TRUE1
• IP rating: IP53
• FDA / IEC Hazard Class IV; U.S. FDA variance required
