FUZ546 - Fuze Max Profile - 800W LED Profile

Overview

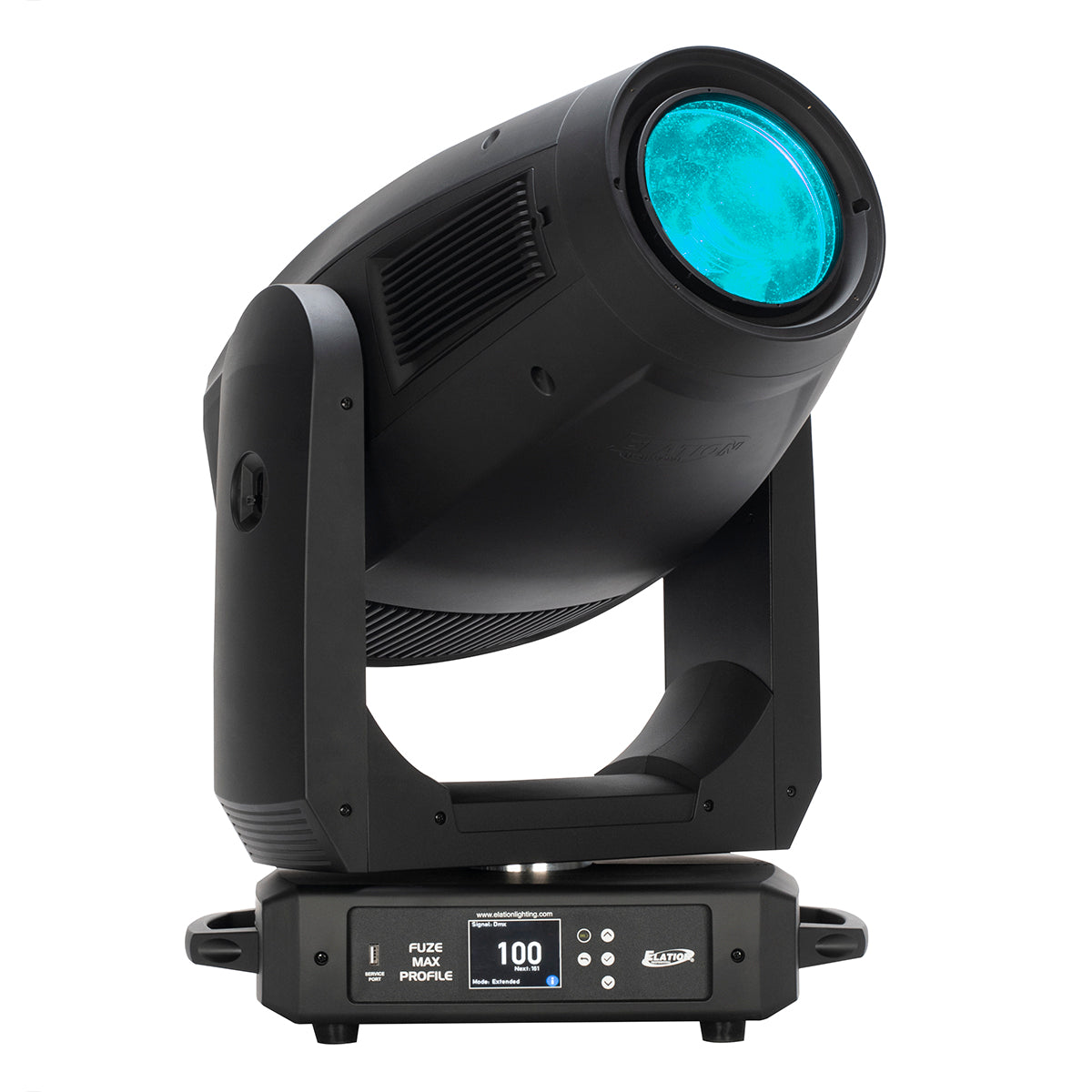

The Elation Fuze Max Profile is an automated LED framing profile with an 800W RGBMA LED engine producing 21,000 lumens at CRI 92. It is designed for applications that need strong color range and quality from a quiet, powerful fixture.

Best for
Theatre, television and live-event applications that need a bright automated framing profile.

Highlights

• Full blackout motorized framing system (4 blades, +/-60° indexing)
• 6 rotating and 7 fixed glass gobos, animation wheel, dual frost, round and linear prisms
• CMY color emulation with virtual gel library, 2400K to 8500K
• Motorized iris, 16-bit dimming and movement

Key Specs

• Light source: 800W RGBMA LED, 6,500K
• Output: 21,000 lumens, CRI 92
• Zoom: 7° to 53°
• DMX modes: 40/61 (RGBMA) or 38/57 (CMY)
• Dimensions: 18.2 x 21.3 x 28.3 in (462 x 540 x 719 mm)
• Weight: 76.3 lbs (34.6 kg)
• Power: AC 100-240V, 1,126W max
• Rating: IP20
