IP Rated Dual F-Series Rig Bar (50cm)

Overview

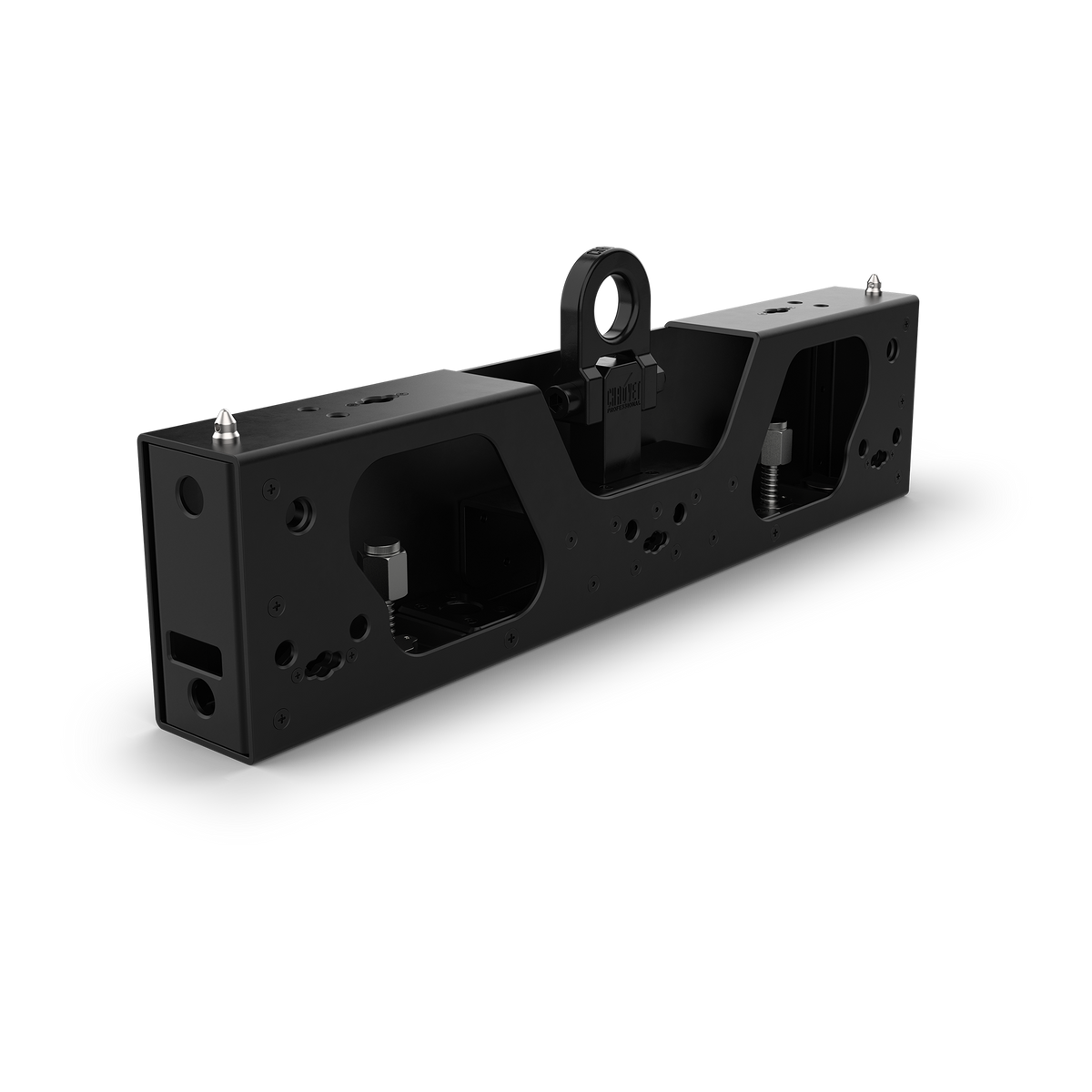

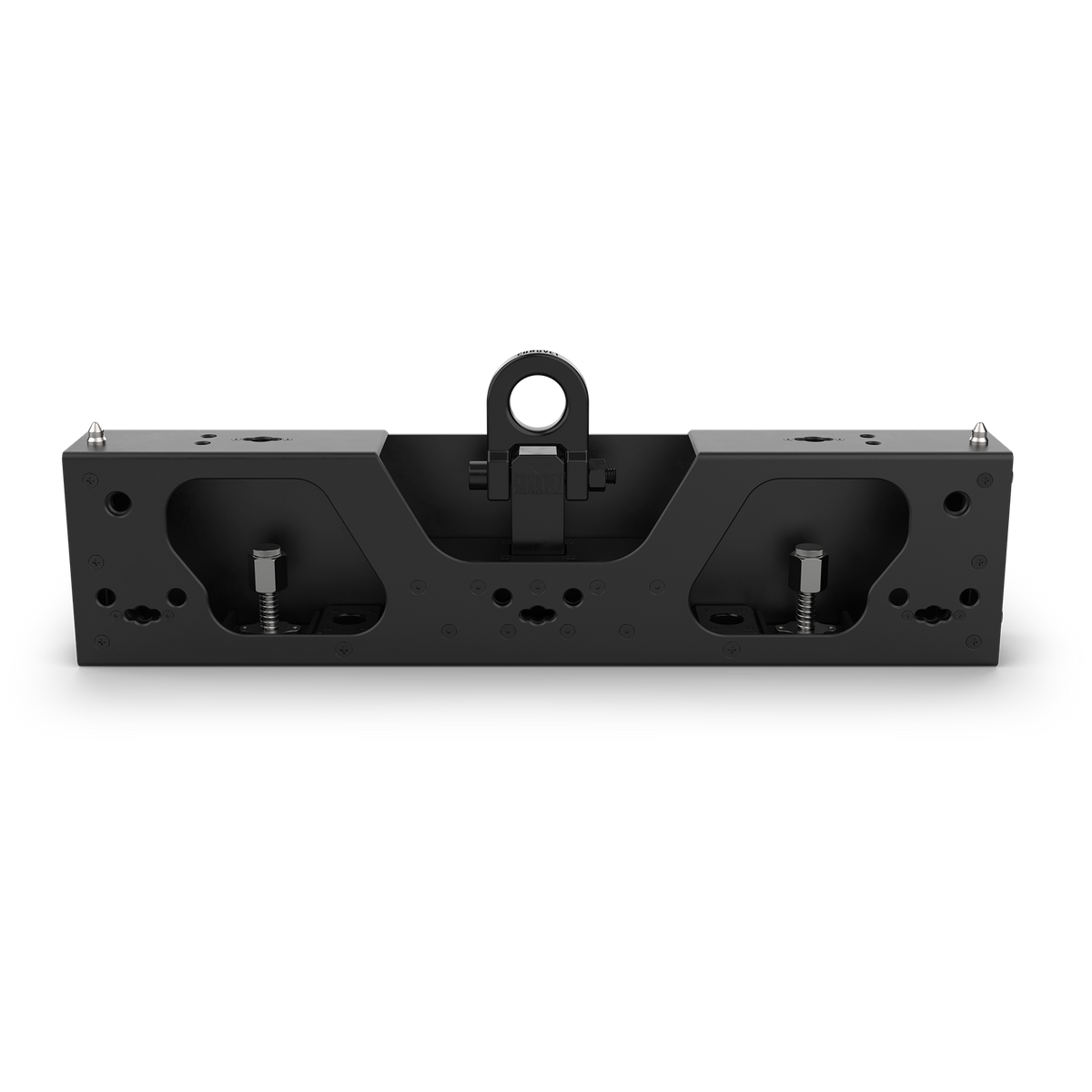

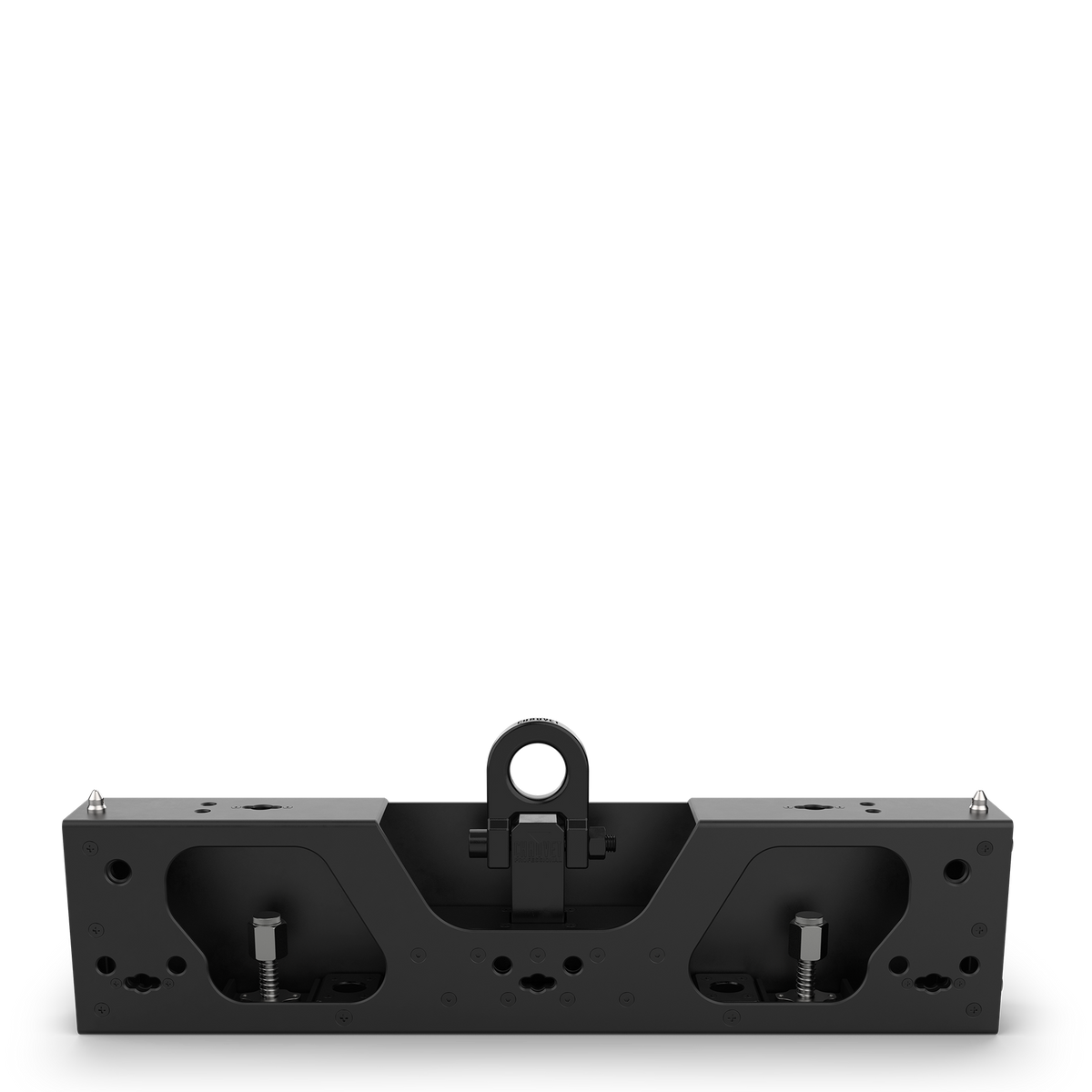

The DRB-F50CMIP is a 50cm, IP65-rated dual function rig bar used to hang or ground-stack F-Series video panels, built from aluminum extrusion and stainless steel hardware for outdoor durability.

Compatible with
F2, F3X, F5IP, and F4XIP video panels.

Highlights

• IP65-rated for temporary outdoor and wet-location use
• Supports both hanging and stacking configurations
• 1/2 in and 5/8 in shackle compatibility

Key Specs

• Dimensions: 19.6 x 2.3 x 4.3 in (499 x 60 x 120 mm)
• IP Rating: IP65
• Load Capacity (Hanging): 970 lb (440 kg)
• Load Capacity (Stacking): 2,204.6 lb (1,000 kg)
• Material: Aluminum extrusion, stainless steel
• Weight: 8.8 lb (3.99 kg)
