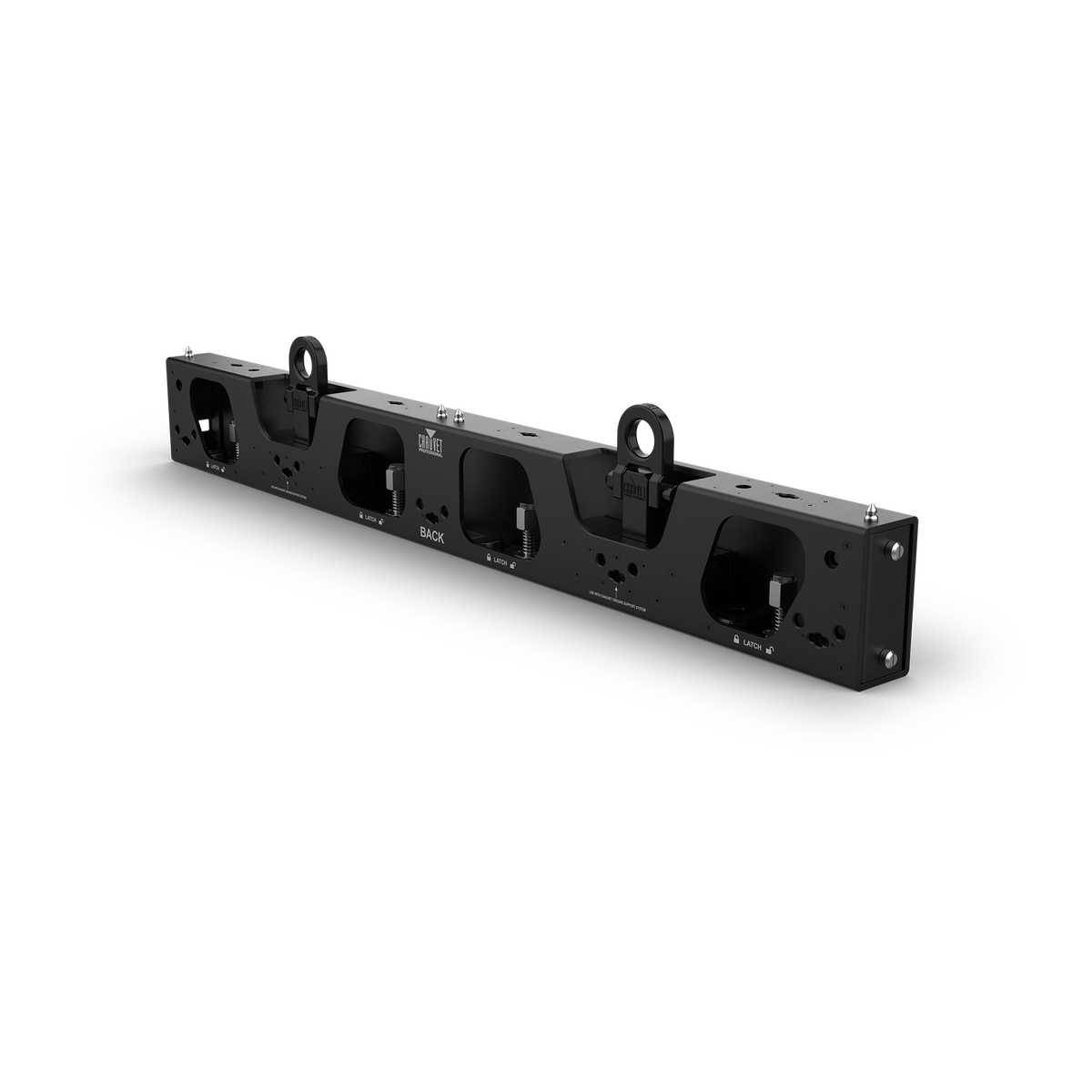

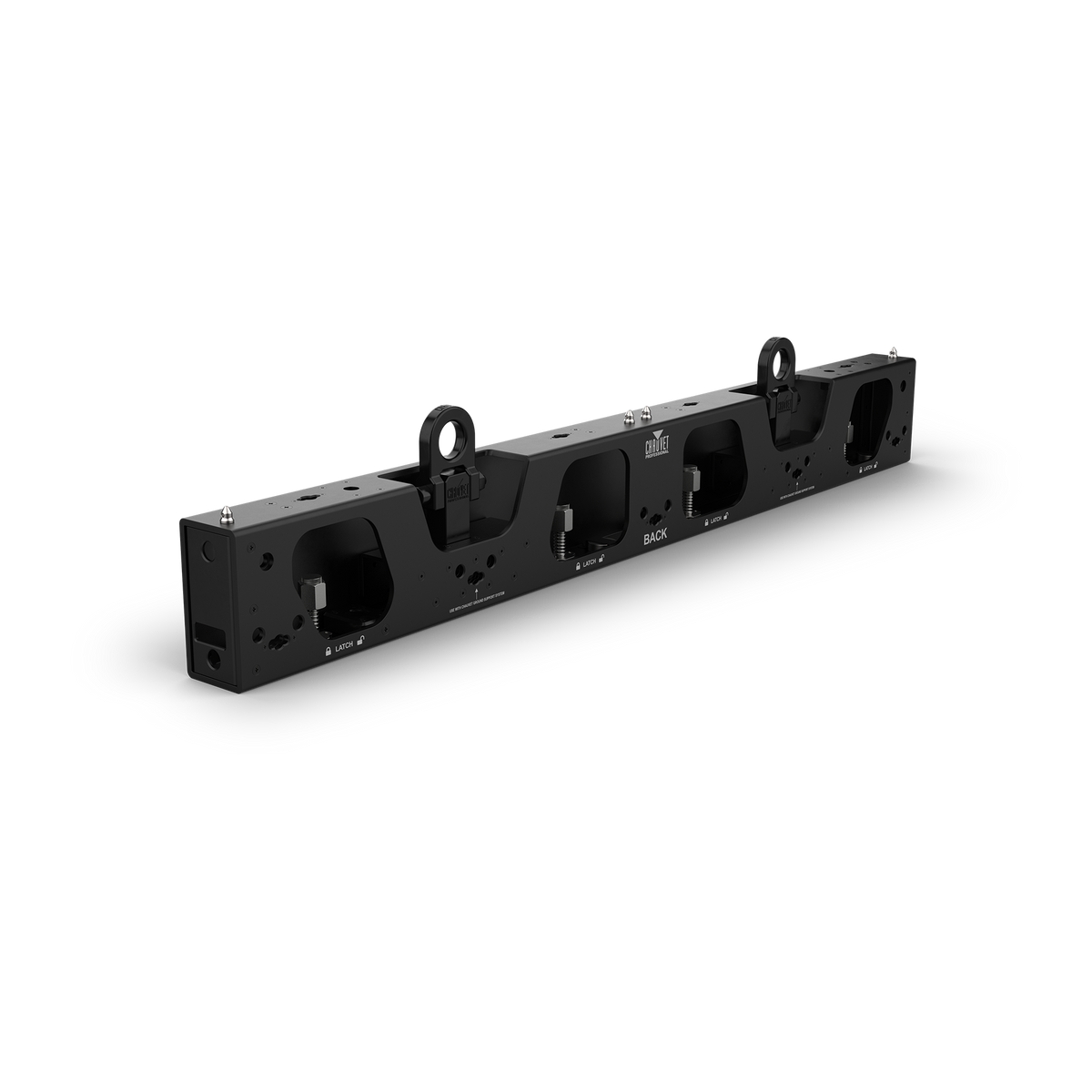

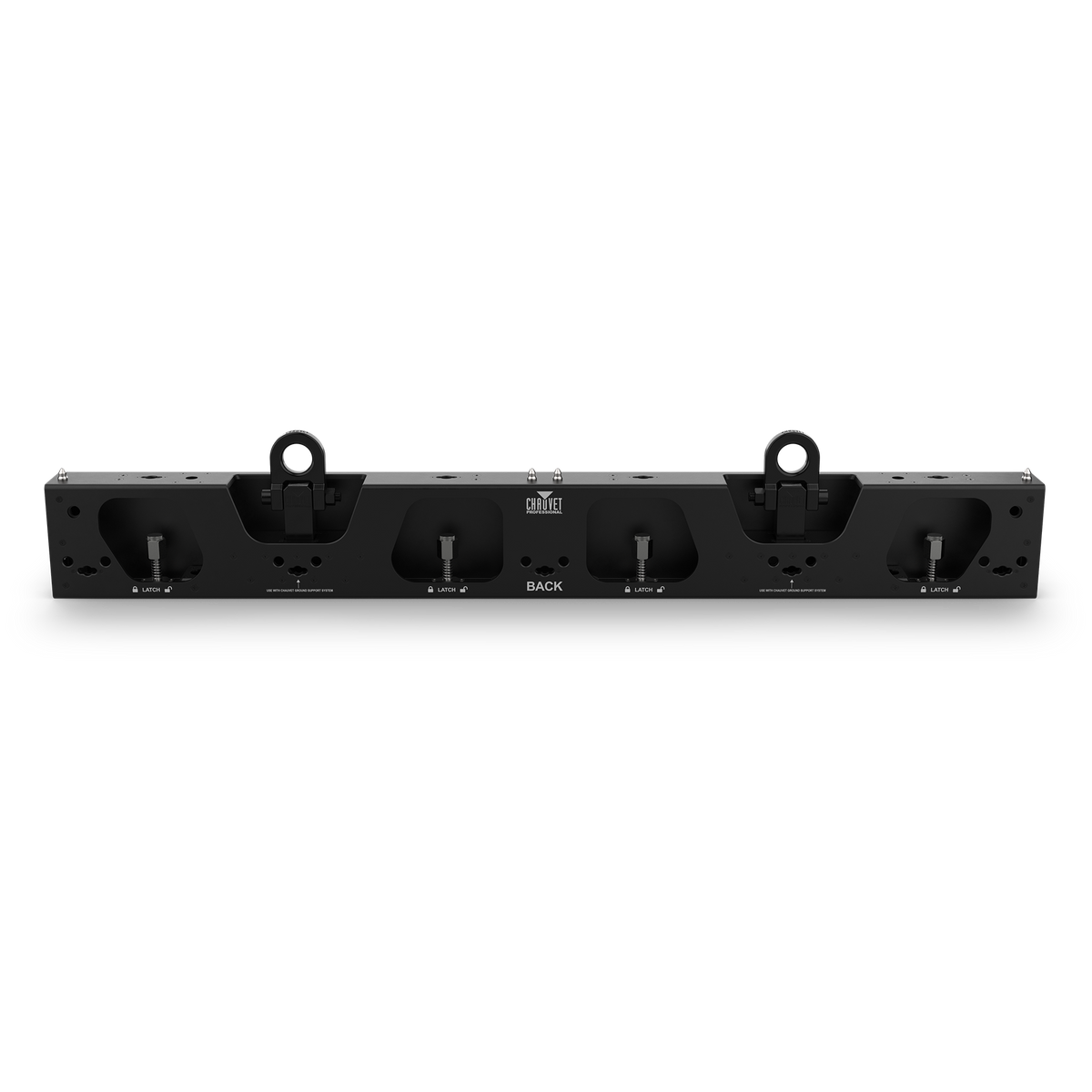

IP Rated Dual F-Series Rig Bar (100cm)

Overview
The DRB-F100CMIP is a 100cm, IP65-rated dual function rig bar used to hang or ground-stack F-Series video panels, built from aluminum extrusion and stainless steel hardware for outdoor durability.

Compatible with
F2, F3X, F5IP, and F4XIP video panels.

Highlights

• IP65-rated for temporary outdoor and wet-location use
• Supports both hanging and stacking configurations
• 1/2 in and 5/8 in shackle compatibility

Key Specs

• Length: 39.35 in (999.6 mm)
• IP Rating: IP65
• Load Capacity (Hanging): 1,665 lb (755 kg)
• Load Capacity (Stacking): 2,735 lb (1,240 kg)
• Material: Aluminum extrusion, stainless steel
• Weight: 15.4 lb (7.0 kg)
