DOTZ MATRIX - Dotz COB LED series fixture

Overview

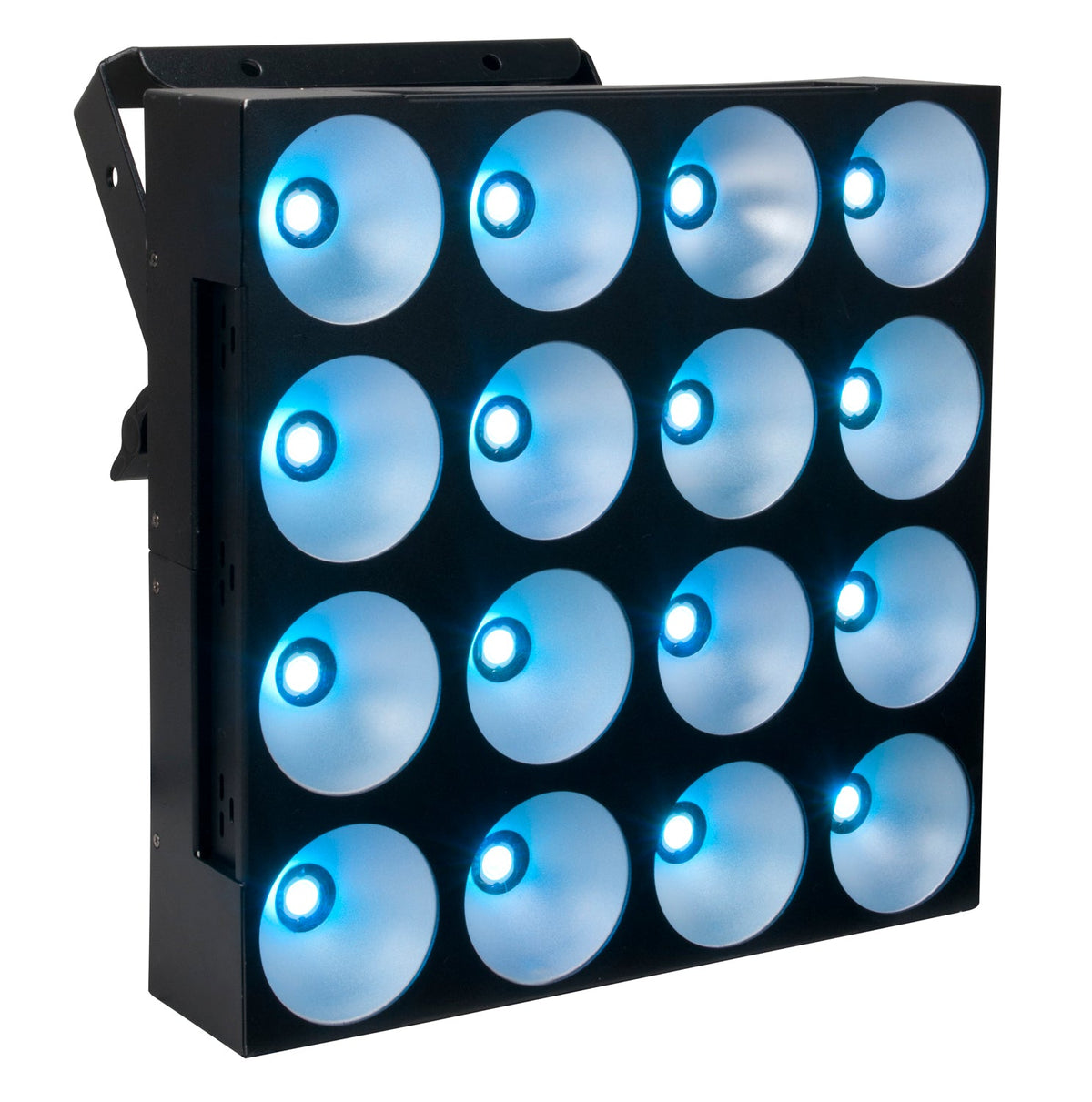

The ADJ Dotz Matrix is a 4x4 COB LED panel with sixteen 30W RGB TRI COB LEDs that works as a wash/blinder or as a pixel-mapped effect. Individual pixel control is available in the 48 and 53-channel DMX modes.

Best for
Stage lighting for bands, nightclubs and event production.

Highlights

• 16 x 30W TRI COB LEDs in a 4x4 matrix for smooth RGB mixing
• Pixel control in 48 and 53-channel modes with 4 pixel flip options
• Auto, sound active, manual RGB and DMX modes
• RDM compliant
• Strobe and pulse effects, 0–100% dimming and 5 dim curves

Key Specs

• Light source: 16x 30W COB TRI (RGB) LEDs
• Beam angle: 60°
• Output: 2630 lux @ 2 m; 730 lux @ 4 m
• DMX channels: 3, 6, 7, 48 or 53
• DMX connectors: 3x 5-pin XLR
• Power: 100–240V AC auto-sensing; 430W max
• Refresh rate: 3.6kHz
• Dimensions: 13.75 x 6.75 x 14.75 in (345 x 170 x 370 mm)
• Weight: 18 lb (7.8 kg)
