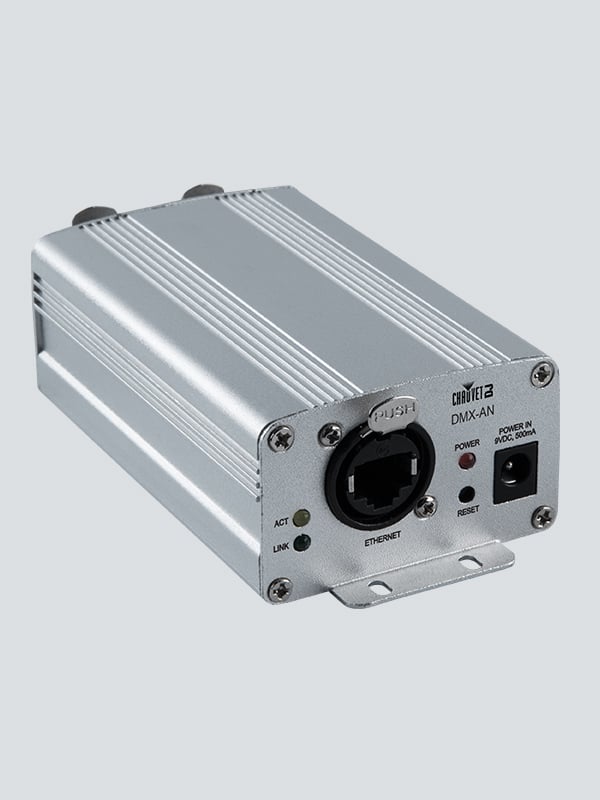

DMX-AN 2

Overview
The DMX-AN2 is an Art-Net/sACN node that converts one Ethernet connection into two DMX universes.

Best for
Networked lighting installs and touring rigs that send Art-Net or sACN from consoles and software to DMX fixtures.

Highlights

• Two DMX universes (1024 channels) from one Ethernet cable
• Art-Net and sACN supported on each output
• Bidirectional: Art-Net to DMX or DMX to Art-Net
• Built-in web interface for setup

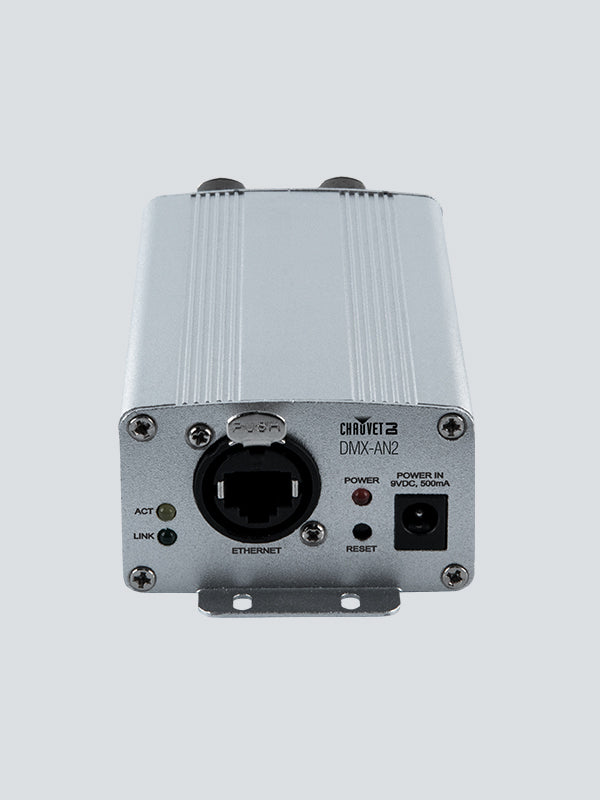

• Optical and electrical isolation with Neutrik etherCON connector
• Powered by PoE or external supply; mounting bracket included

Key Specs

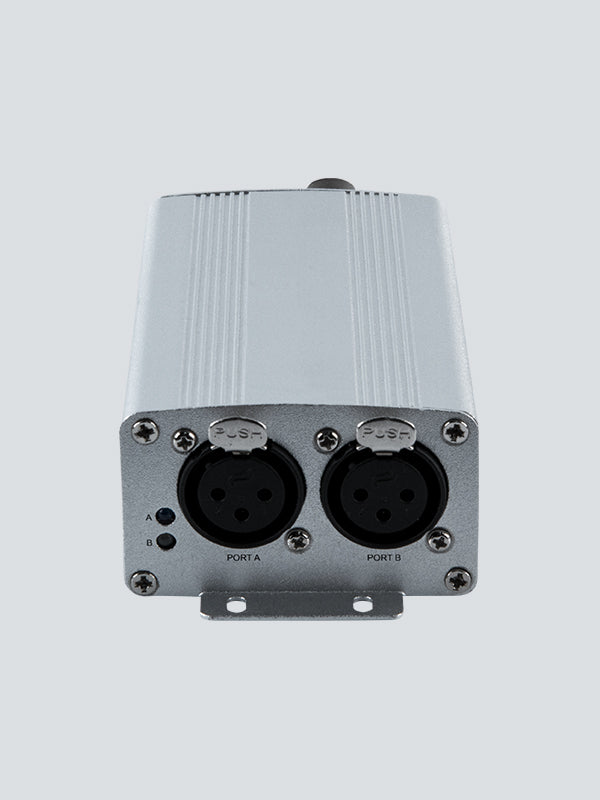

• DMX connectors: 3-pin XLR
• DMX channels: 1024
• Input: 9 VDC, 500 mA (external) or 48 V, 0.4 A (PoE)
• Dimensions: 4.7 x 2.5 x 1.5 in (120 x 64 x 39 mm)
• Weight: 0.4 lb (0.2 kg)
• Approvals: CE
