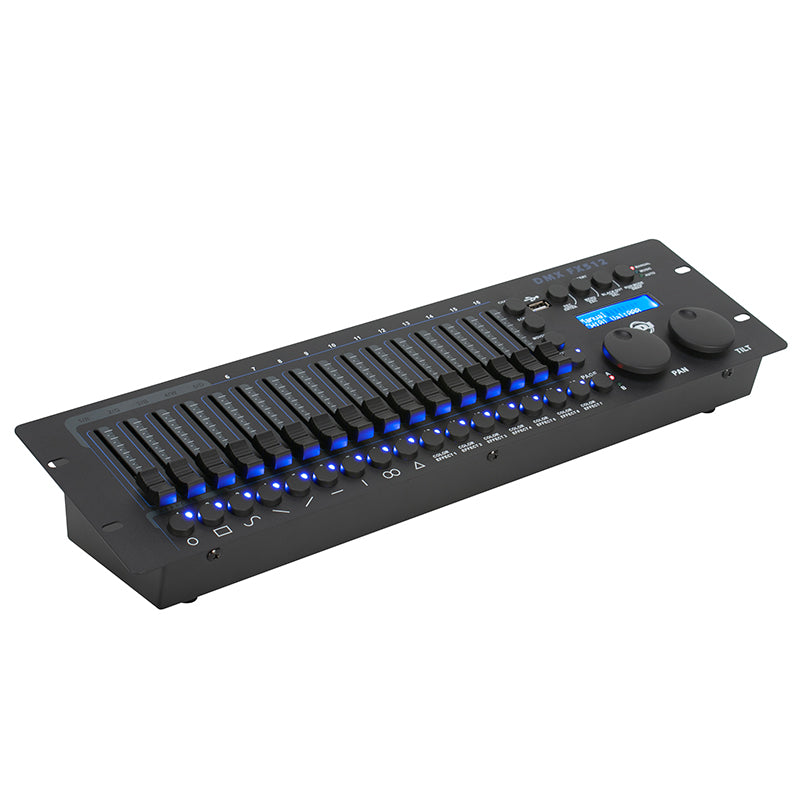

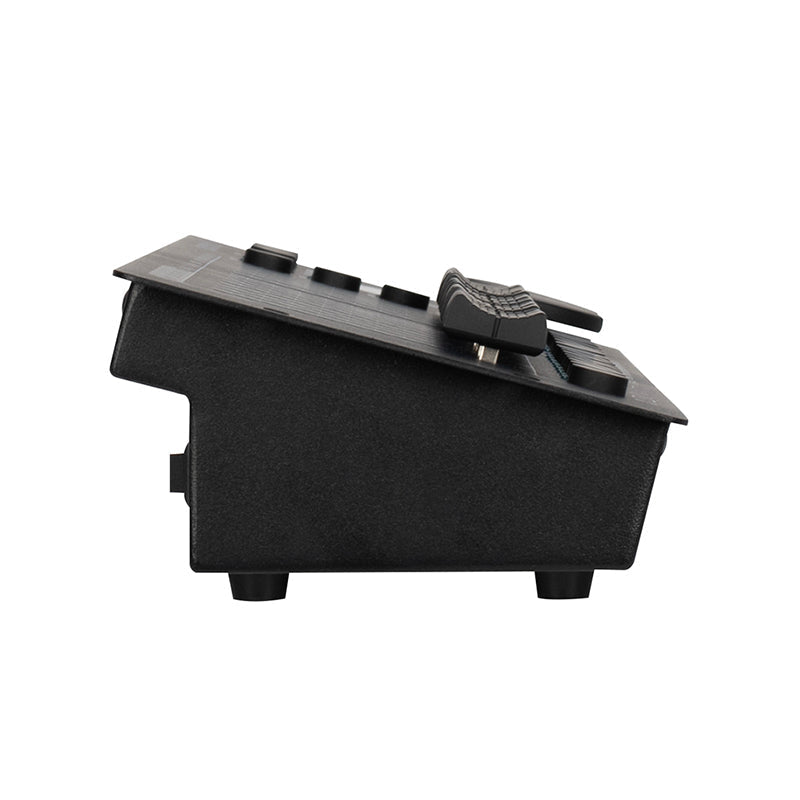

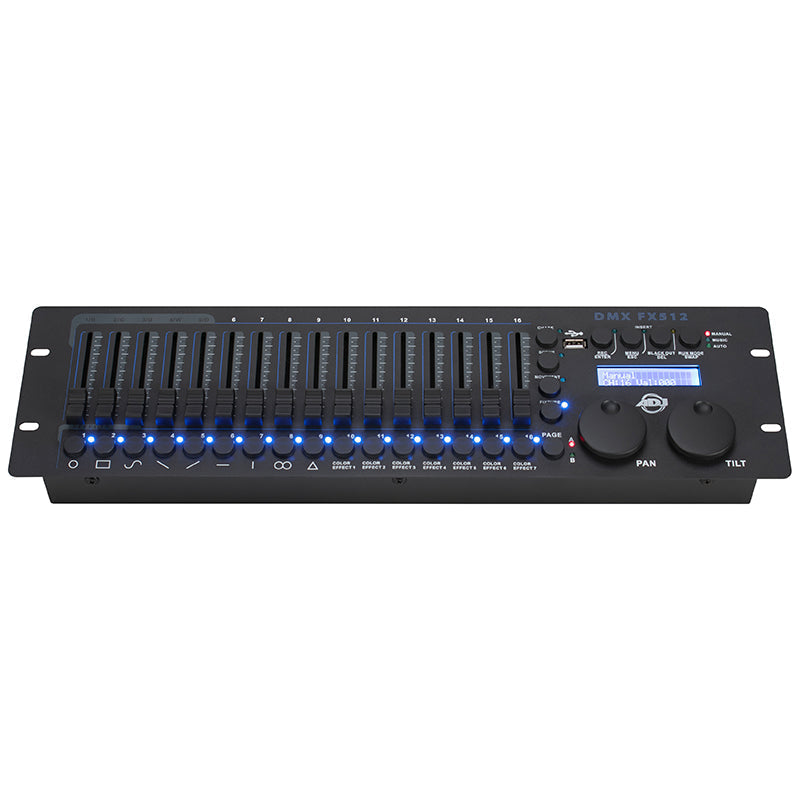

DMX FX512 - 19" 512-channel DMX controller

Overview
The ADJ DMX FX512 is a 3U 19 in rack-mount DMX controller covering 512 channels, with hands-on control for moving heads and RGB LED fixtures. It stores 32 scenes and 32 chases and adds built-in effect generators and RDM support.

Best for
Churches, nightclubs, stages and event production running moving heads and LED fixtures.

Highlights

• Controls up to 32 fixtures with up to 18 channels each
• 32 scenes and 32 chases (up to 100 steps; 5 run at once)
• 16 built-in effect generators (9 moving light, 7 RGB LED)
• Pan/Tilt wheels and soft-patchable faders
• RDM support for remote addressing and mode setup
• Front-panel USB for backup and firmware updates

Key Specs

• DMX channels: 512
• Faders: 16 channel faders
• Sound active: built-in microphone, adjustable sensitivity
• Output: 5-pin XLR DMX
• Power: 9–12V DC, 300mA min (9V 1A supply included)
• Power consumption: 1.5–2W
• Rack size: 19 in, 3 rack spaces
• Dimensions: 5.28 x 19 x 2.71 in (134 x 482 x 68.9 mm)
• Weight: 4.7 lb (2.13 kg)
