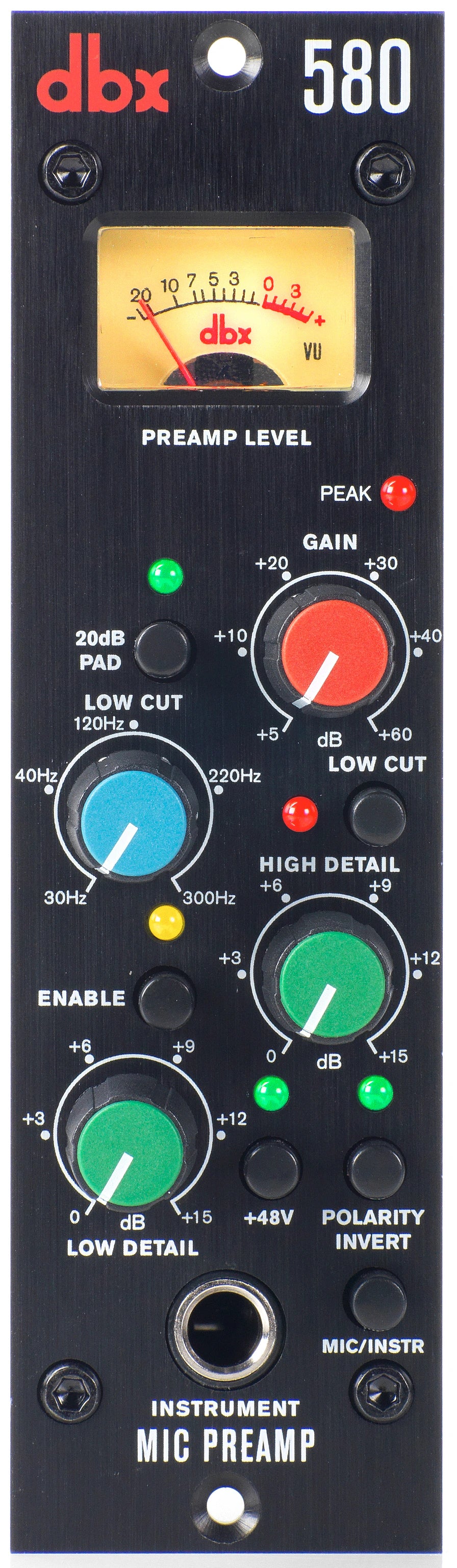

DBX580 - DBX 580 Mic Preamp

Overview
The dbx 580 is a microphone preamp in 500 Series format with low and high detail EQ and a front-panel instrument input.

Best for
Studio tracking and live recording with 500 Series racks.

Highlights

• Variable low-cut filter and detail EQ
• 20 dB pad, polarity invert, +48V phantom
• VU meter and peak indicator

Key Specs

• Max gain: 60 dB
• Frequency response: 20 Hz to 20 kHz (+0/-1 dB)
• THD+N: <0.006% typical
• EIN: >-128 dBu typical
• Max output: +22 dBu
• Power: +/-16 V DC, 80 mA per rail
• Format: 500 Series module
• Dimensions: 5.25 x 1.5 x 6 in (13.3 x 3.8 x 15.2 cm)
• Weight: 1.3 lb (0.59 kg)
• Part number: DBX580
