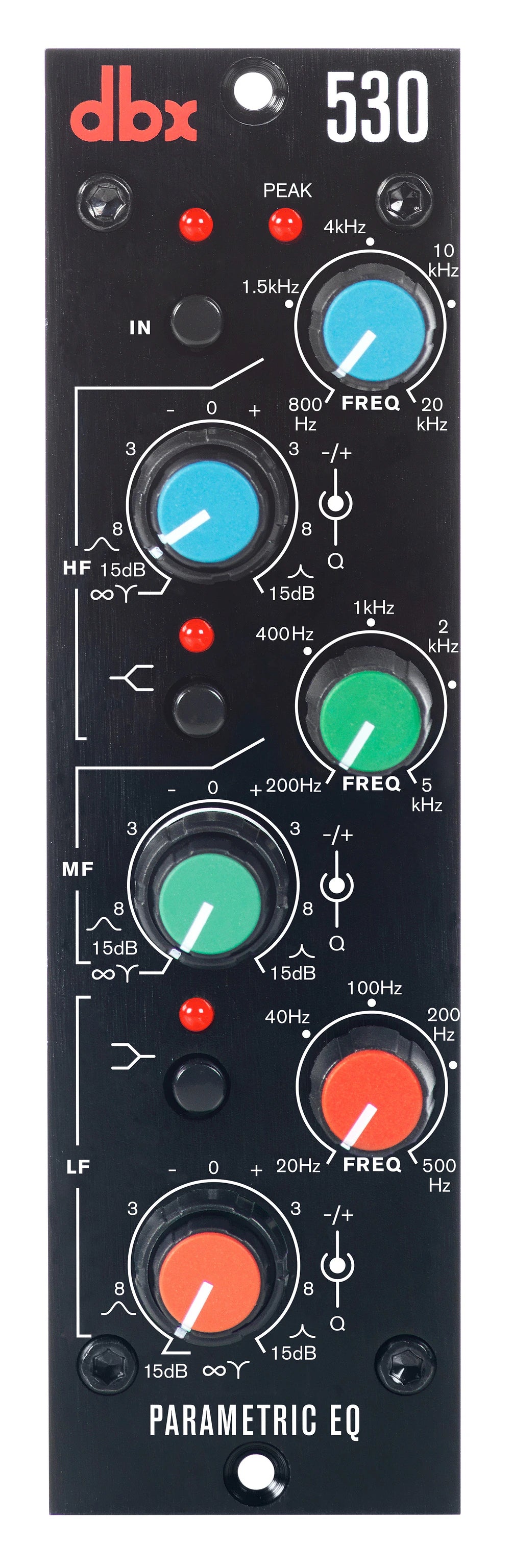

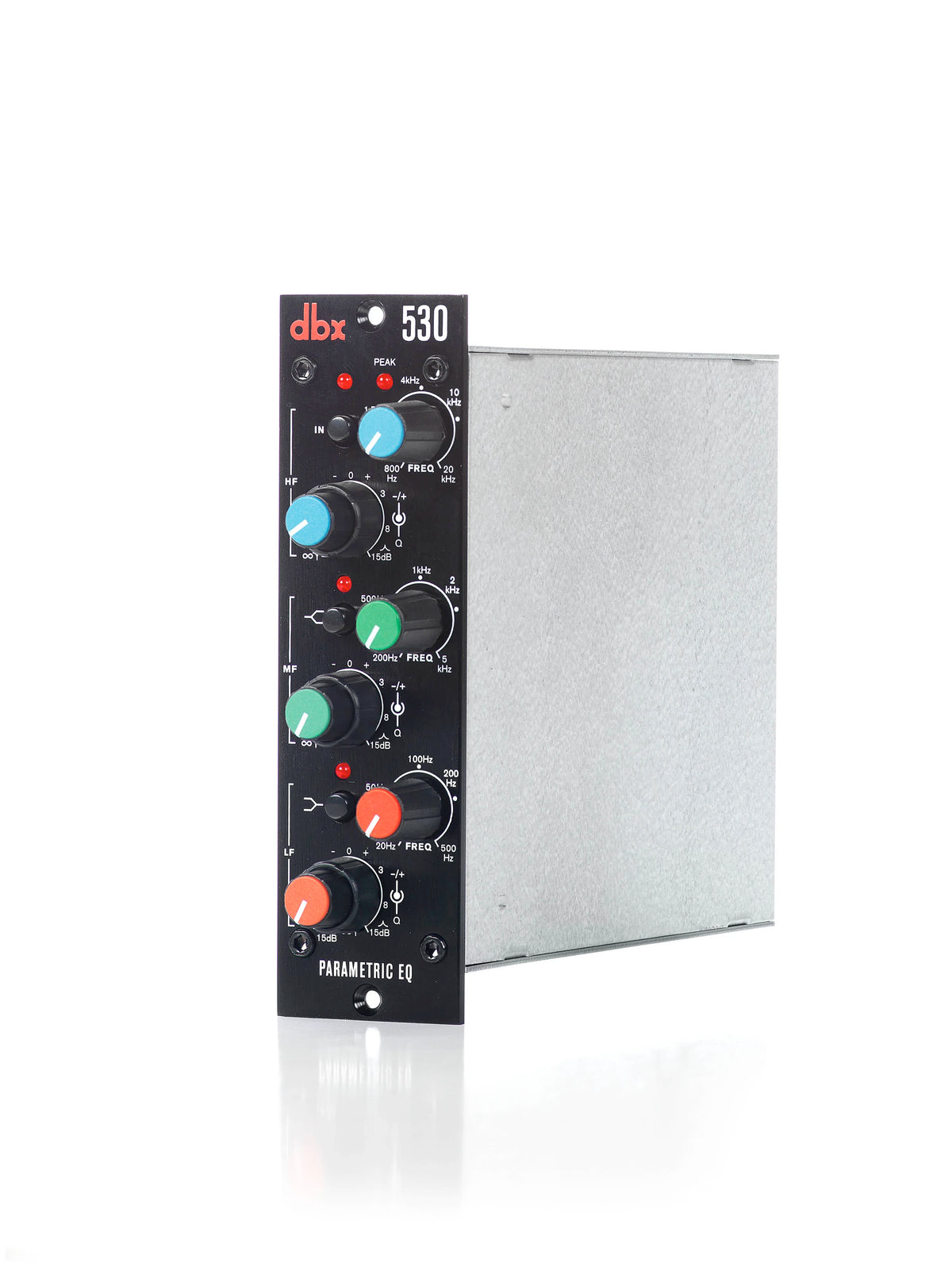

DBX530 - DBX 530 3-Band Parametric EQ

Overview
The dbx 530 is a 3-band fully parametric equalizer in 500 Series format, based on the classic dbx 905.

Best for
Tracking, mixing and live rigs using 500 Series racks.

Highlights

• Fully parametric operation on all three bands
• Infinite notch and shelving modes
• Classic dbx 905 heritage

Key Specs

• Bands: 3 overlapping, adjustable Q, switchable notch/shelf
• EQ range: +/-15 dB per band
• Frequency response: 20 Hz to 20 kHz (+0/-1 dB)
• Max input/output: +22 dBu
• Dynamic range: 112 dB
• THD+N: <0.006% typical
• Format: 500 Series module
• Dimensions: 5.25 x 1.5 x 6 in (13.3 x 3.8 x 15.2 cm)
• Weight: 1.3 lb (0.59 kg)
• Part number: DBX530
