Data Distro 6 - 6-way DMX and RDM splitter

Overview

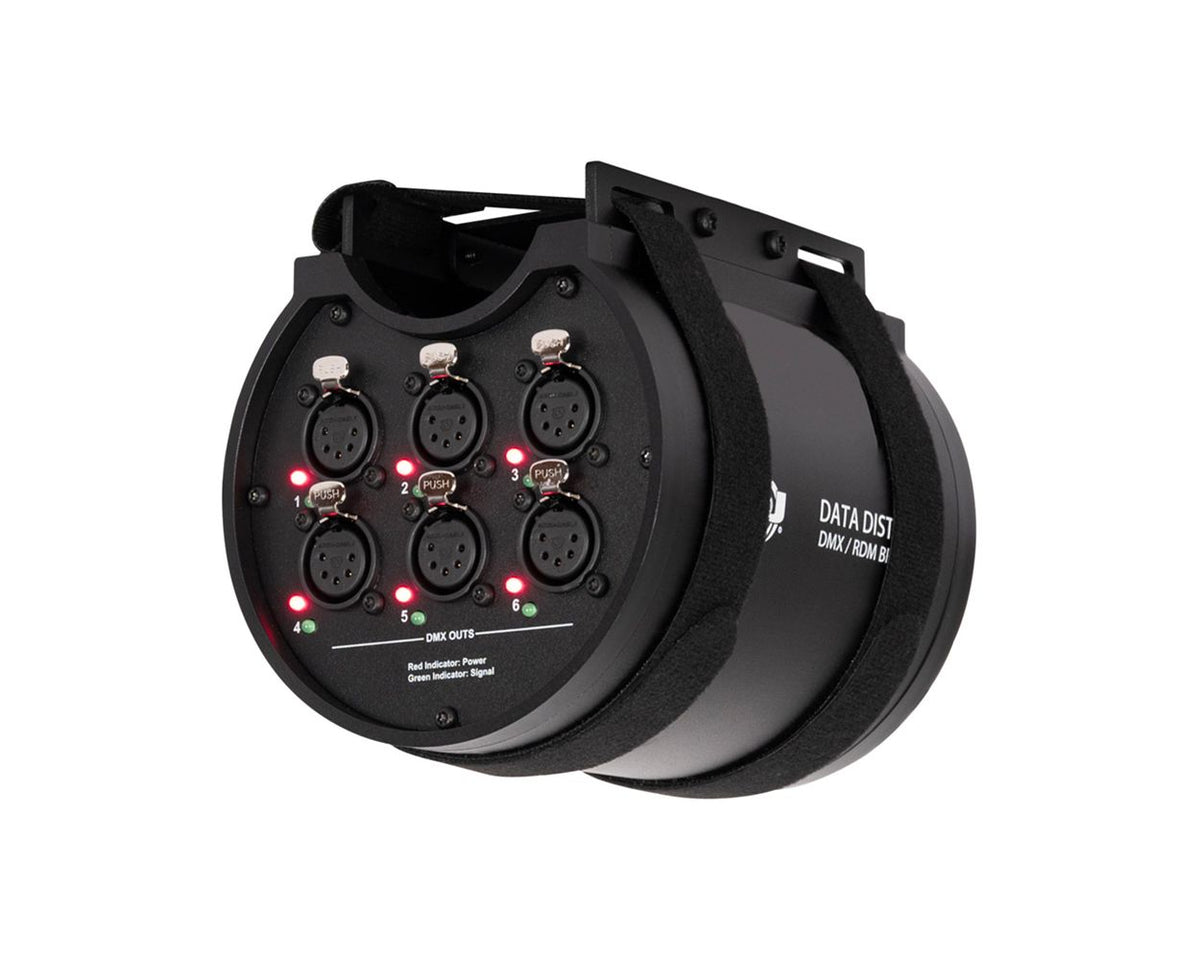

The ADJ Data Distro 6 is a 6-way DMX and RDM splitter with one 5-pin input, one thru and six 5-pin outputs. It can hang from truss using Velcro straps or an M10 clamp.

Best for
Distributing DMX/RDM data to multiple fixture runs on stages, events and installs.

Highlights

• DMX512 and RDM support with protocol selector switch

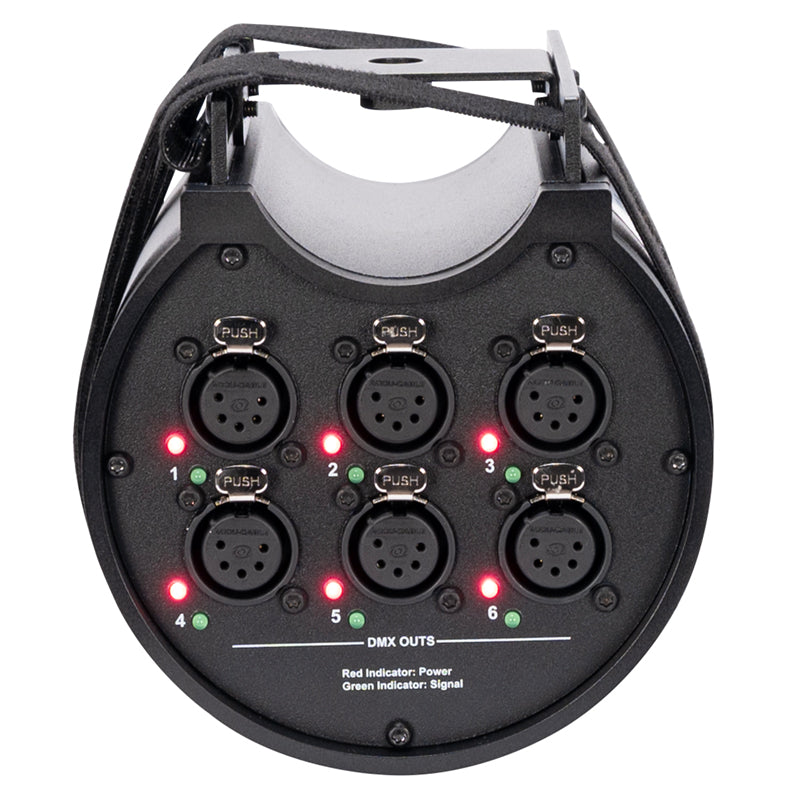

• Six 5-pin XLR outputs plus 5-pin thru

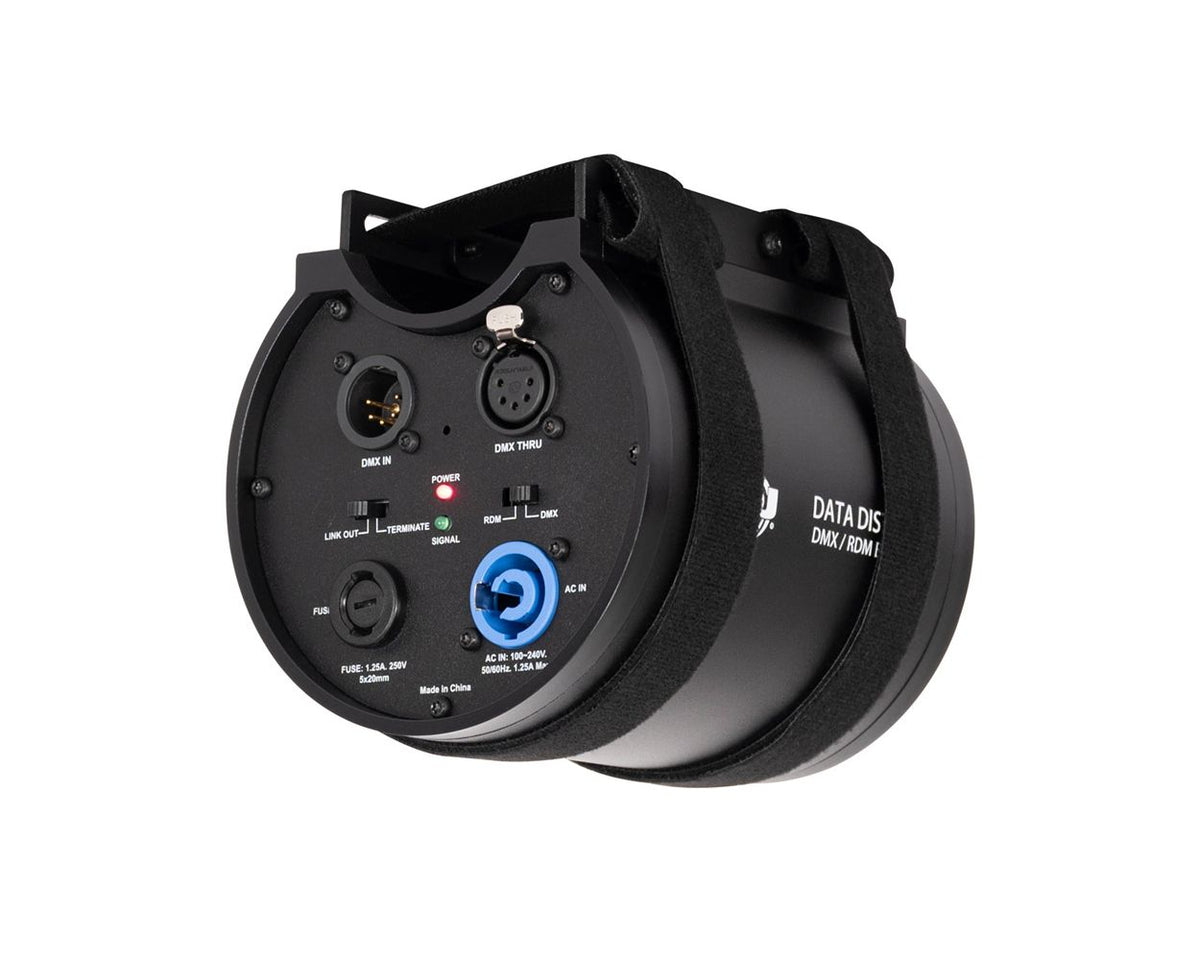

• Link-out termination switch
• Truss-mountable with Velcro straps or M10 clamp (clamp not included)
• Locking power socket

Key Specs

• Protocols: DMX512, RDM
• Connections: 1x 5-pin XLR in, 1x 5-pin XLR thru, 6x 5-pin XLR out
• Power: 100–240V AC, 50/60Hz; 2.7W @ 120V, 2.9W @ 230V
• Fuse: T1.25A/250V (5.2 x 20 mm)
• IP rating: IP20
• Dimensions: 4.73 x 5.43 x 5.10 in (120 x 137.75 x 129.55 mm)
• Weight: 1.83 lb (0.83 kg)
