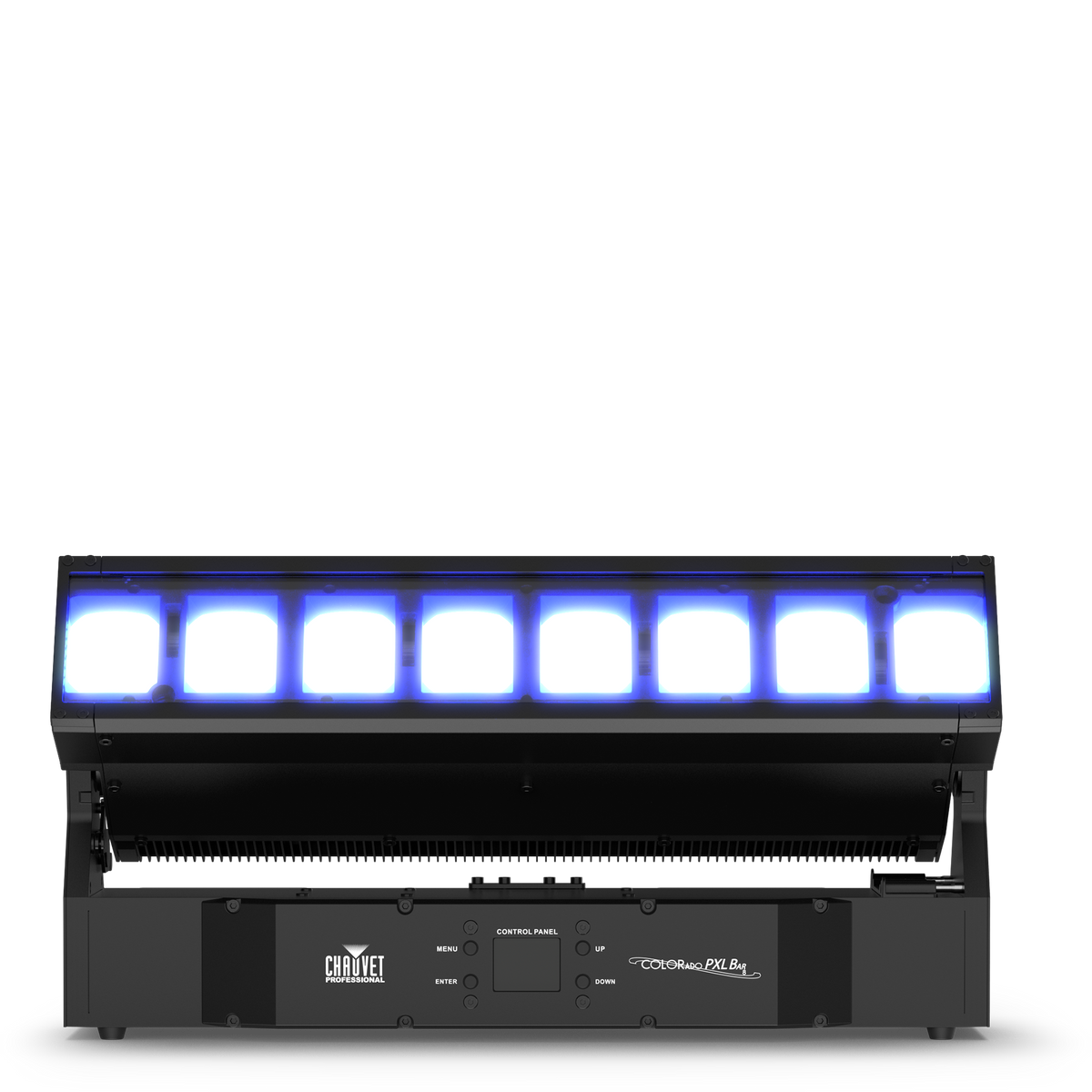

COLORado PXL Bar 8

Overview
The COLORado PXL Bar 8 is a compact version of the PXL Bar series with eight individually controllable quad-color RGBW LEDs, each on a motorized 200° tilting cell, for pixel-mapped effects in a smaller footprint.

Best for
Kinetic and pixel-mapped looks where a shorter bar is needed than the 16-cell version.

Highlights

• 8 individually controllable RGBW LED cells with 200° motorized tilt
• Motorized zoom from 3.6° to 47.3°
• Seamless edge-to-edge mounting for larger walls
• Supports Art-Net, sACN, Kling-Net, DMX, RDM
• IP65 rated for outdoor/temporary wet use

Key Specs

• Light source: 8 LEDs (quad-color RGBW), 45 W each
• Output: 3,503 lm; 12,109 lux @ 5 m (narrow); 563 lux @ 5 m (wide)
• Beam angle: 3.5° to 30.8° (full fixture)
• IP rating: IP65
• Control: DMX, RDM, 10 personalities (19-105 channel modes)
• Power: 422 W @ 120 V
• Weight: 25.2 lb (11.5 kg)
