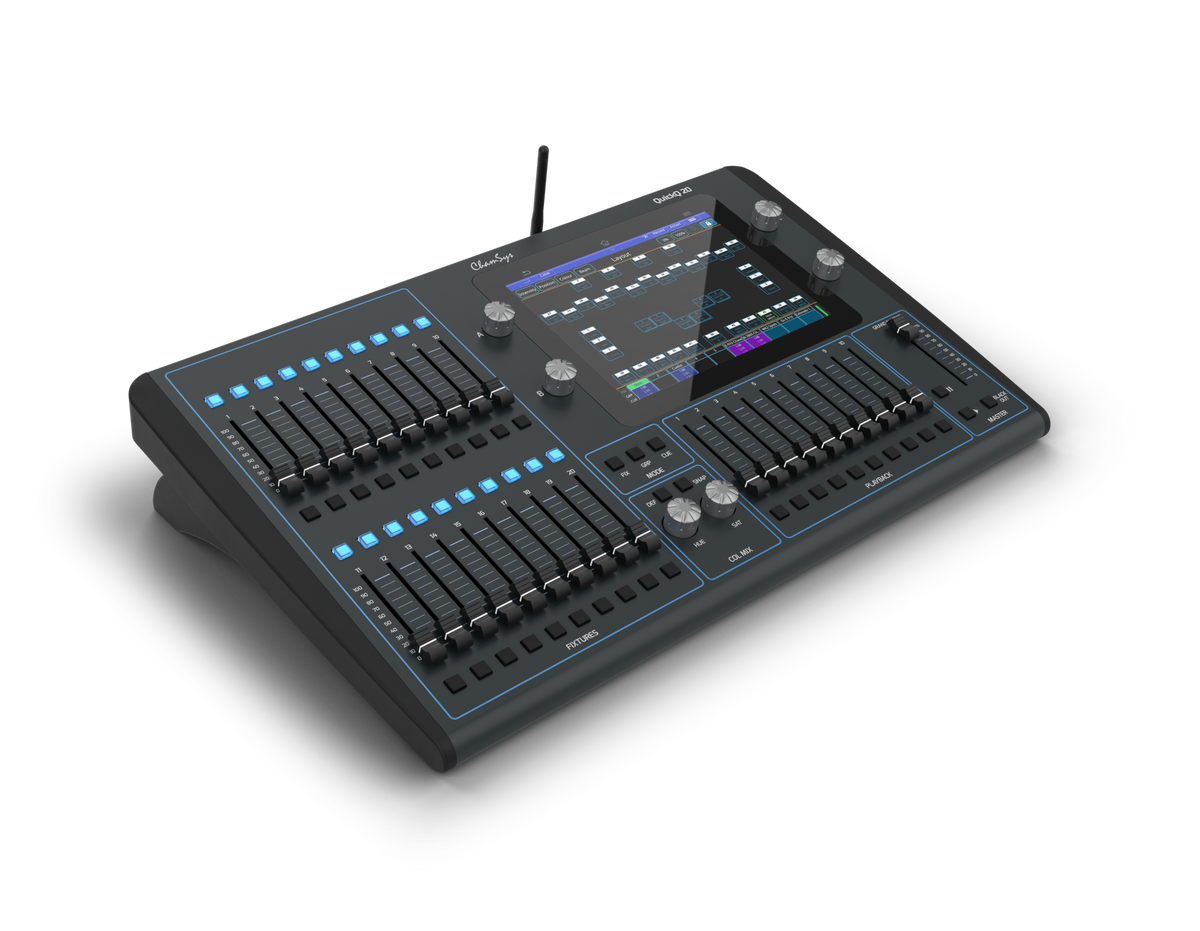

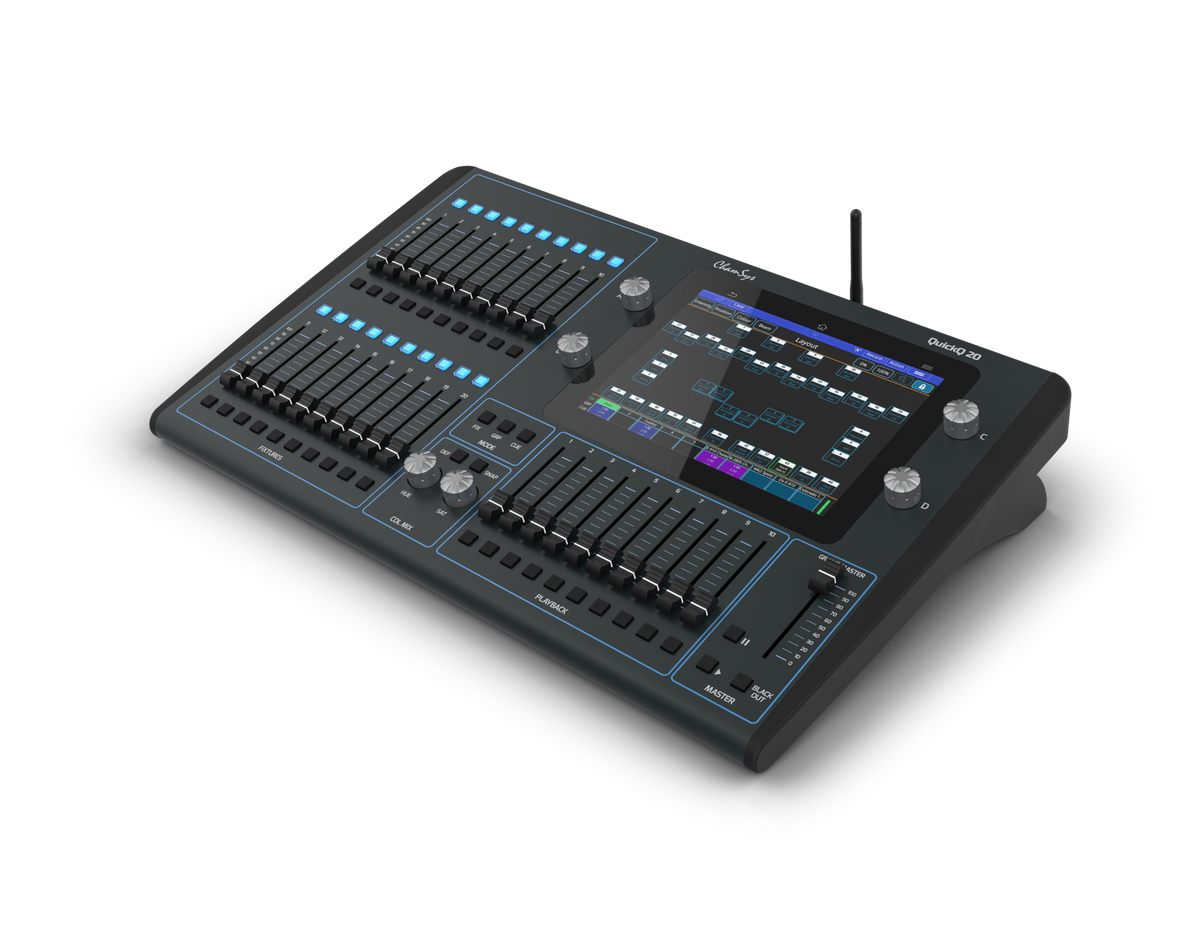

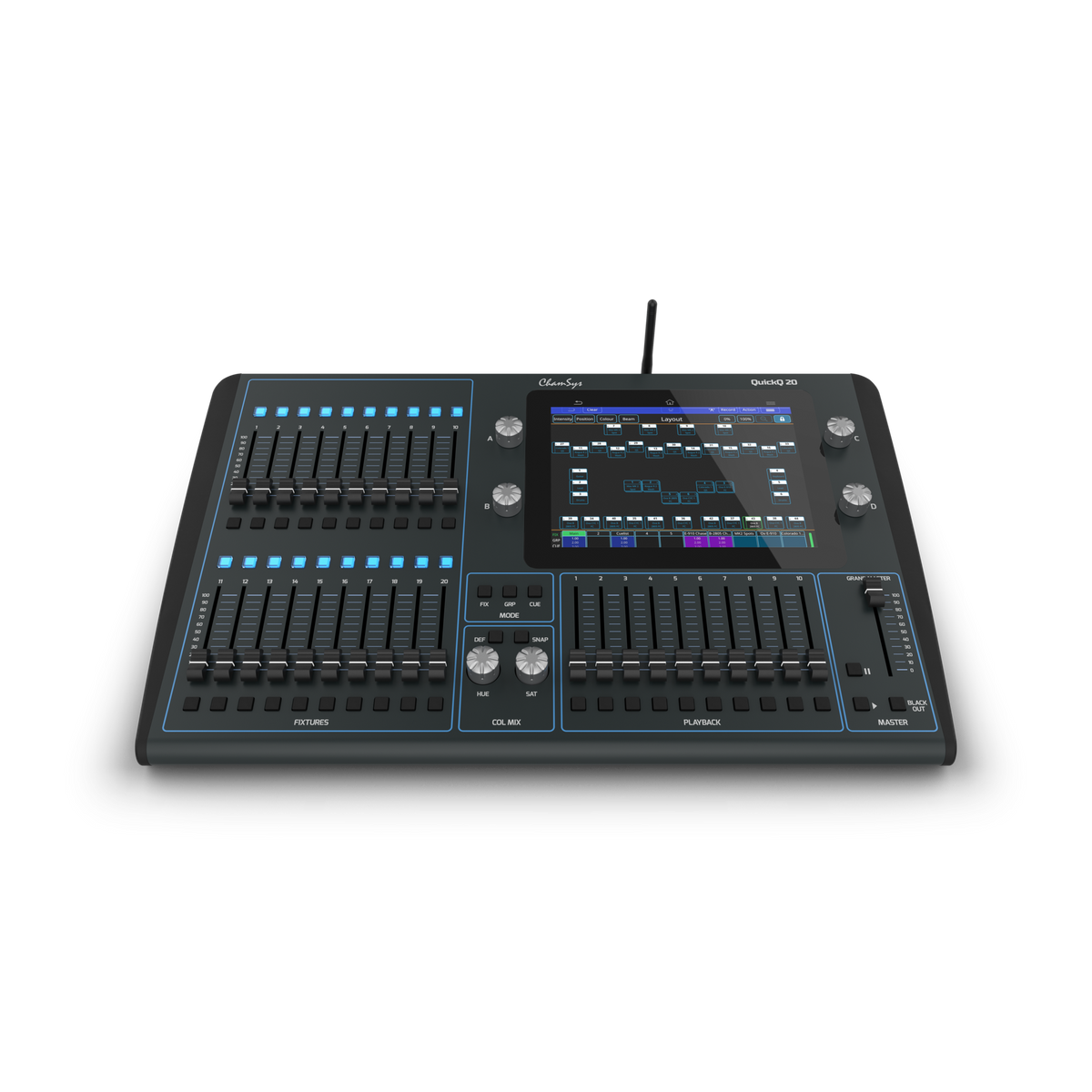

QuickQ 20

Overview
The QuickQ 20 steps up from the QuickQ 10 with a 9.7" multi-touch display, 2 direct DMX outputs and support for 2 universes. Its smartphone-like gesture interface, 20 fixture faders and 10 playback faders keep operation simple while adding more capacity.

Best for
Small to mid-size venues that have outgrown a single-universe console but still want QuickQ's simple interface.

Highlights

• 9.7" multi-touch display with external HDMI monitor support (1920x1080)
• 20 multi-function fixture faders, 10 playback faders
• 4 attribute encoders with dedicated Hue/Saturation control
• 2 direct DMX outputs (5-pin XLR) plus Wi-Fi and network port
• MIDI in/out and audio input/output

Key Specs

• Universes: 2 (1,024 channels/fixtures max)
• Connectors: 2x DMX out, network port, 2x USB, MIDI I/O
• Power: 60W max, 12V 4A supply included
• Dimensions/Weight: 565 x 350 x 106mm, 5.2kg
