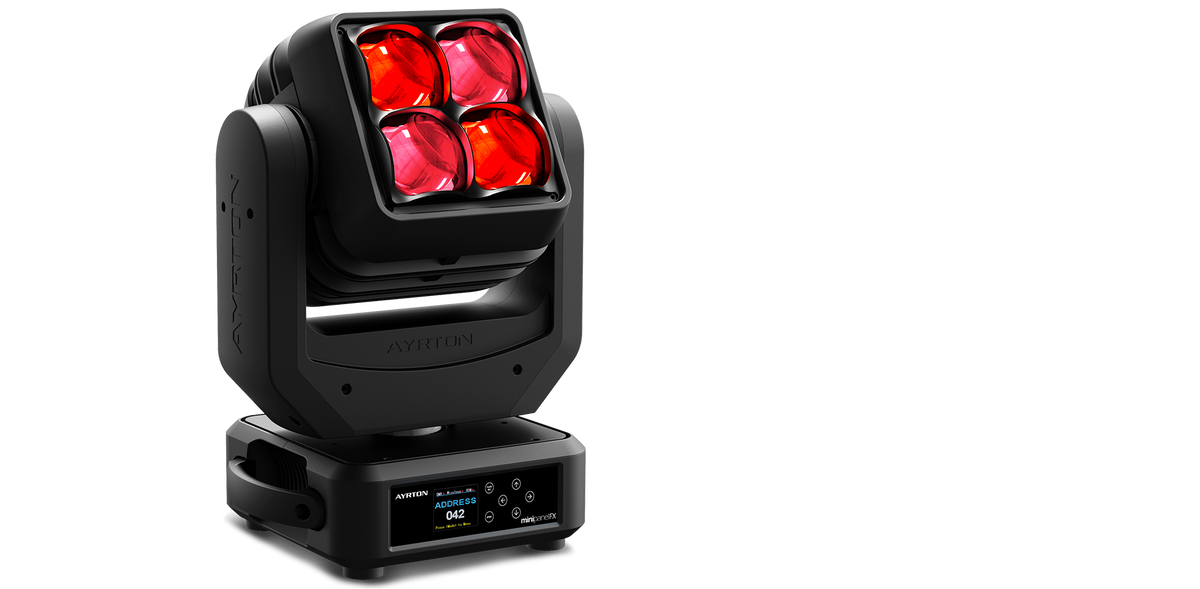

MiniPanel-FX 220W RGBW LED, 3.6 to 53 degrees

Overview
MiniPanel FX is Ayrton's ultra-compact version of the MagicPanel FX, keeping the same optical zoom system and effects capability in a 2 x 2 format. Four RGBW emitters with square lenses deliver beams, washes and pixel effects on infinite pan and tilt.

Best for
Clubs, TV sets and touring rigs that want MagicPanel-style effects in a small, lightweight fixture.

Highlights

• 4 x 35 W RGBW LEDs, 2,400 lm and 331,200 cd at narrow beam
• 15:1 zoom from 3.6 to 53 degrees
• 4 square 65 mm front lenses
• Infinite pan and tilt rotation
• Integrated CRMX TiMo wireless receiver

Key Specs

• Part Number: AY015450
• LED source: 4 x 35 W RGBW
• Output: 2,400 lm
• Zoom: 3.6 to 53 degrees (15:1)
• IP rating: IP20
• Power: 200 W typical, 220 W maximum, 100-240 V, 50/60 Hz
• Connectors: XLR 5-pin DMX in/out, powerCON TRUE1 in/out
• Control: DMX-512, RDM, CRMX; 19-34 channels (3 modes)
• Dimensions (L x H x D): 11.2 x 15.6 x 8.7 in (285 x 397 x 220 mm)
• Weight: 19.6 lb (8.9 kg)
