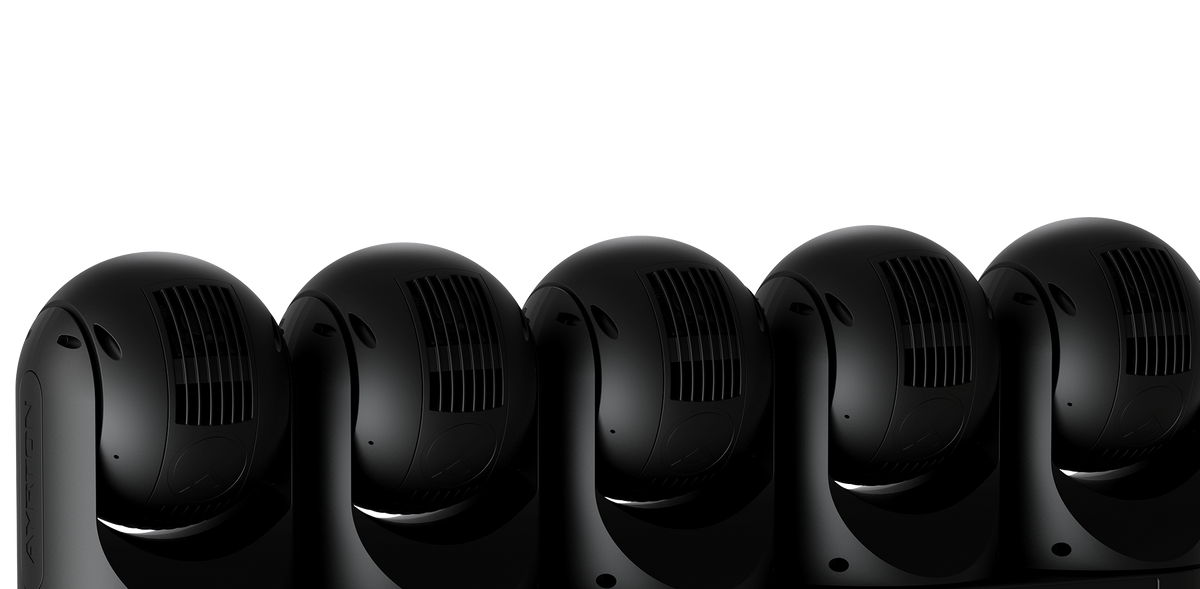

MagicBlade Neo 5x 120W RGBL LED, 3 to 30 degree

Overview
MagicBlade Neo is an IP65 multi-source effect fixture in Ayrton's Creative series, built on the MagicDot Neo platform. Five independent heads with continuous pan and tilt, each with a 120 W RGB-L LED and 100 mm zoom optic, create reconfigurable curtains of light, with a LiquidEffect ring and a Shortcut function for building complex effects.

Best for
Concert, TV and event stages that need a weatherproof, kinetic beam-curtain effect with individually controlled heads.

Highlights

• 5 independent heads with infinite pan and tilt, 16-bit positioning
• 5 x 120 W RGB-L LEDs, up to 15,000 lm total, CRI up to 86
• 10:1 motorized zoom, 3 to 30 degrees, per head
• LiquidEffect ring with 60 RGB LEDs and built-in pattern effects
• Liquid cooling with phase-change heat pipes and IP68 fans
• Integrated CRMX TiMo RDM wireless receiver

Key Specs

• Part Number: AY015380
• Light source: 5 x 5,000 lm RGB-L LED, L70 up to 40,000 hours
• Output: up to 15,000 lm; 16,000 lux at 5 m (single head)
• Zoom: 3 to 30 degrees (10:1), 5 x 100 mm lenses
• IP rating: IP65
• Power: 800 W maximum, 100-240 V, 50/60 Hz
• Connectors: IP65 XLR 5-pin DMX in/out, IP65 RJ45 in/out, IP65 power in/out
• Control: DMX-512, RDM, Art-Net, sACN, CRMX; 175 or 184 channels
• Operating temperature: -4 to 113 F (-20 to 45 C)
• Dimensions (L x H x D): 39.7 x 7.9 x 13.9 in (1008 x 200 x 352.5 mm)
• Weight: 71.4 lb (32.4 kg)
