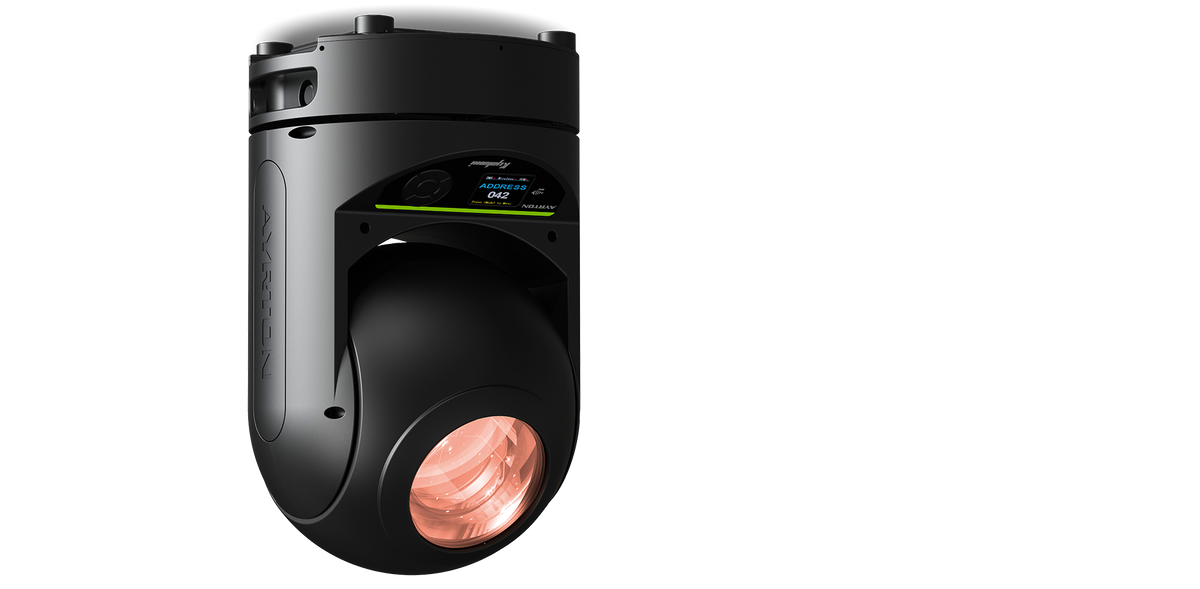

Kyalami 100W IP65 Laser Source 1 degree beam (case insert not included)

Overview
Kyalami is the first phosphor laser source luminaire in Ayrton's Creative Solution series. Its miniaturized cylindrical body allows very tight spacing, while a 100 W laser source produces a 1 degree beam with CMY mixing, gobos and prisms, all in an IP65 housing. Case insert is sold separately.

Best for
Architectural, installation and stage designs that need dense arrays of small, weatherproof beam fixtures.

Highlights

• 100 W phosphor laser source, 1 degree beam, 400,000 lux at 33 ft (10 m)
• CMY mixing with 5 correction and 17 complementary filters
• 29 metal gobos, 2 rotating prisms (circular and linear), 2 frost filters
• Compact cylindrical footprint for tight fixture spacing
• Optional single and dual molded foam inserts available

Key Specs

• Part Number: AY014042
• Light source: phosphor laser, 100 W
• Beam: 1 degree; 400,000 lux at 10 m
• IP rating: IP65
• Power: 200 W maximum, 100-240 V, 50/60 Hz
• Connectors: XLR 5-pin DMX, RJ45 Art-Net, powerCON TRUE1
• Control: DMX-512, RDM, Art-Net, sACN; 33 channels
• Dimensions (L x H x D): 10.4 x 16.9 x 10.4 in (265 x 430 x 265 mm)
• Weight: 32.0 lb (14.5 kg)
