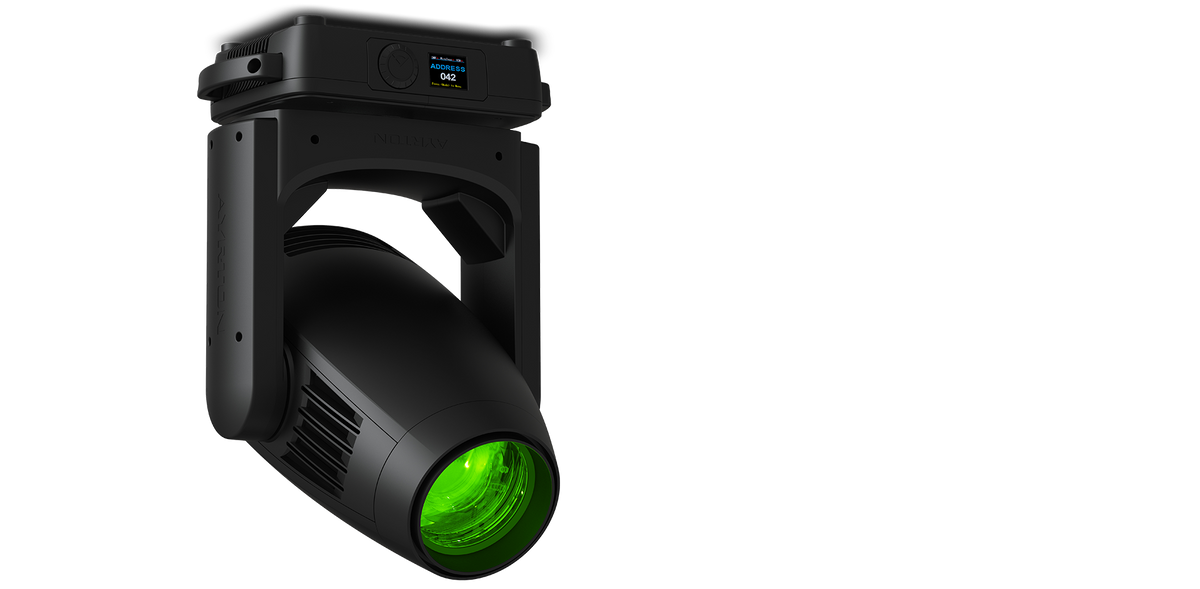

Diablo-S 300W LED Profile, 7 to 53 degree

Overview
Diablo S is the standard-CRI version of Ayrton's Diablo, a feature-rich 300 W LED profile in the Classical 3 Series. Ayrton describes it as the smallest, lightest and most efficient fixture in its category, with a full framing system, CMY mixing and a 7.5:1 zoom.

Best for
Theaters, touring and corporate events that need a light, compact framing profile with high output.

Highlights

• 26,500 lm 8000 K engine, 19,000 lm output at 7000 K, CRI >70
• 7.5:1 zoom from 7 to 53 degrees with 119 mm front lens
• CMY mixing, CTO and 7-position color wheel
• 7 HD glass rotating gobos and 5-facet rotating prism
• 4-blade framing (+/-45 degrees) and 15-blade iris
• Liquid cooling with variable-speed fans

Key Specs

• Part Number: AY011340
• Light source: LED, 7000 K output, CRI >70
• Output: 19,000 lm
• Zoom: 7 to 53 degrees (7.5:1)
• IP rating: IP20
• Power: 550 W maximum, 100-240 V, 50/60 Hz
• Connectors: XLR 5-pin DMX, powerCON TRUE1
• Control: DMX-512, RDM; 34-56 channels (3 modes)
• Dimensions (L x H x D): 14.4 x 23.3 x 8.2 in (365 x 591 x 208 mm)
• Weight: 48.5 lb (22 kg)
