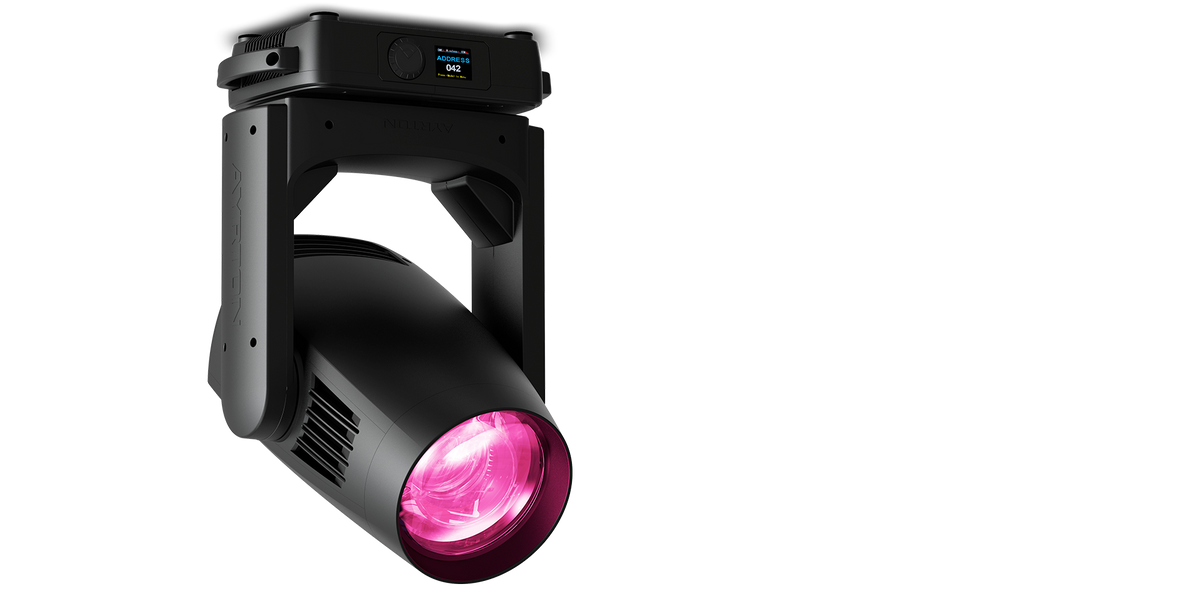

Karif-LT 300W LED Spot, 3 to 45 degree

Overview
Karif LT is a compact long-throw LED spot in Ayrton's Classical 3 Series. It offers a 17:1 zoom with a large gobo package, four combinable prisms and CMY mixing in a lightweight body.

Best for
Theaters, concerts and TV studios that need a small spot with a very wide zoom range for long throws.

Highlights

• 20,000 lm 8000 K engine with 14,000 lm output at 7000 K
• 17:1 zoom from 2.8 to 47 degrees with 168 mm front lens
• 9 HD glass rotating gobos plus 19 glass and 20 metal fixed gobos
• 4 individually combinable rotating prisms
• CMY mixing with progressive CTO, 4 correction and 9 complementary colors

Key Specs

• Part Number: AY011170
• Light source: LED, CRI >70, up to 40,000 hours
• Output: 14,000 lm
• Zoom: 2.8 to 47 degrees (17:1)
• IP rating: IP20
• Power: 550 W maximum, 100-240 V, 50/60 Hz
• Connectors: XLR 5-pin DMX, powerCON TRUE1
• Control: DMX-512, RDM; 32-46 channels (3 modes)
• Pan/tilt: infinite pan, 263 degree tilt
• Dimensions (L x H x D): 14.4 x 24.5 x 8.3 in (365 x 622 x 212 mm)
• Weight: 59.5 lb (27 kg)
