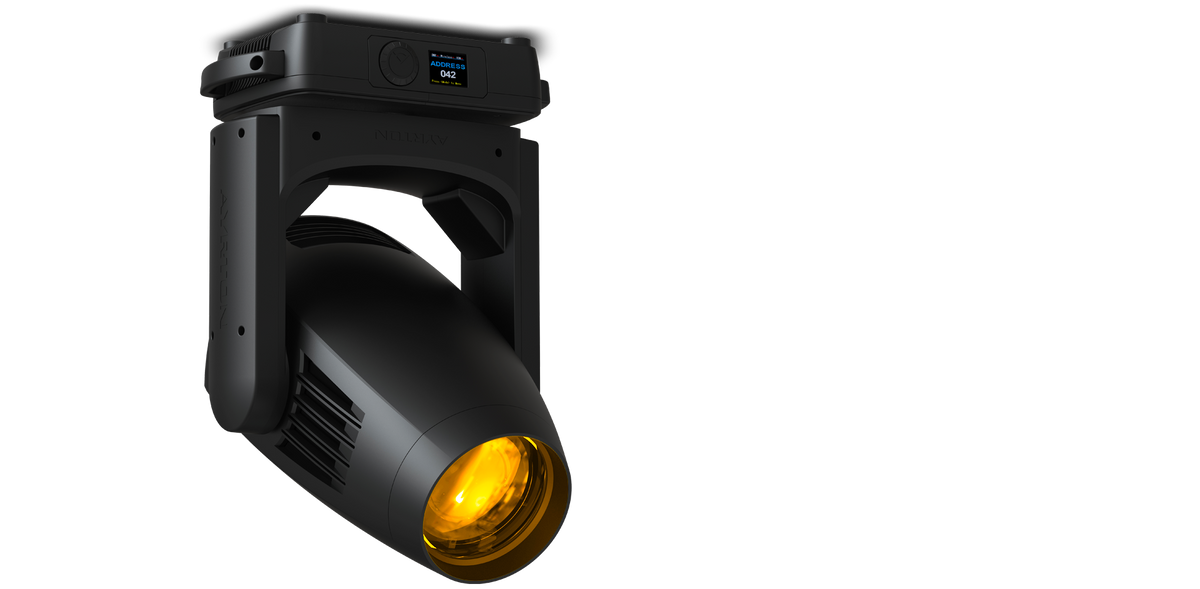

Levante-S 300W LED Wash, 7 to 58 degree

Overview
Levante S is the standard-CRI version of Ayrton's Levante, a dramatically miniaturized version of the Bora wash in the Classical 3 Series. It combines a 300 W-class LED wash with framing barndoors, gobos and CMY mixing in an ultra-compact format.

Best for
Touring and event rigs that need a compact, bright wash with beam-shaping.

Highlights

• 26,500 lm 8000 K engine, 20,000 lm output at 7000 K, CRI >70
• 8:1 zoom from 6.9 to 57 degrees with 138 mm front lens
• CMY mixing, variable CTO and 7-position color wheel
• 7 indexable rotating metal gobos
• 4 barndoor blades (100% coverage), 15-blade iris and 0-100% linear frost
• Integrated CRMX TiMo wireless receiver

Key Specs

• Part Number: AY010240
• Light source: LED, 7000 K output, CRI >70, L70 40,000 hours
• Output: 20,000 lm
• Zoom: 6.9 to 57 degrees (8:1)
• IP rating: IP20
• Power: 550 W maximum, 100-240 V, 50/60 Hz
• Connectors: XLR 5-pin DMX, powerCON TRUE1
• Control: DMX-512, RDM, CRMX; 29-50 channels (3 modes)
• Pan/tilt: 540 / 263 degrees
• Dimensions (L x H x D): 14.4 x 24.9 x 8.3 in (365 x 632 x 212 mm)
• Weight: 48.5 lb (22 kg)
