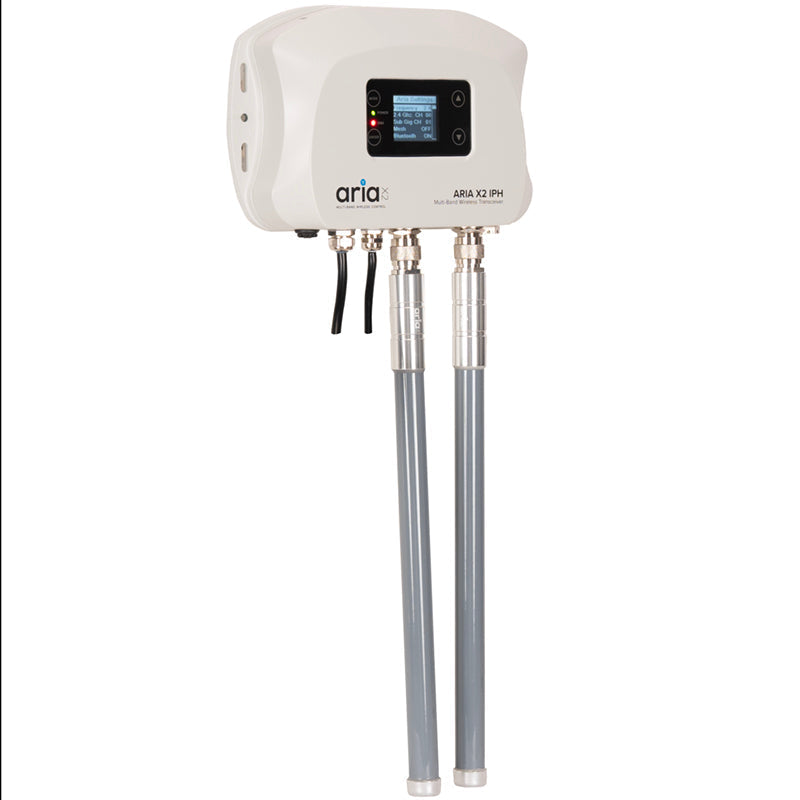

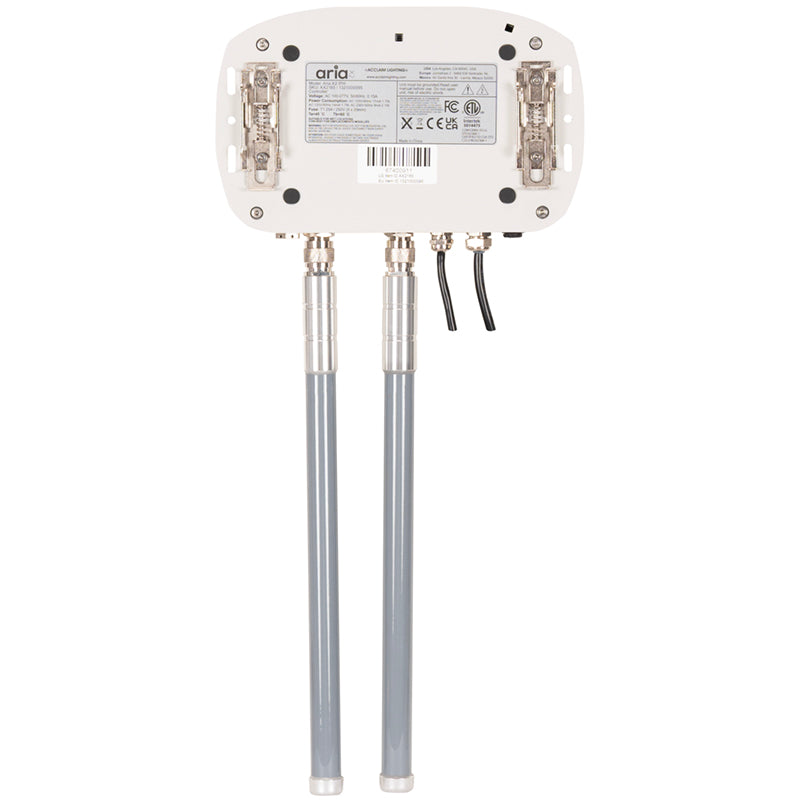

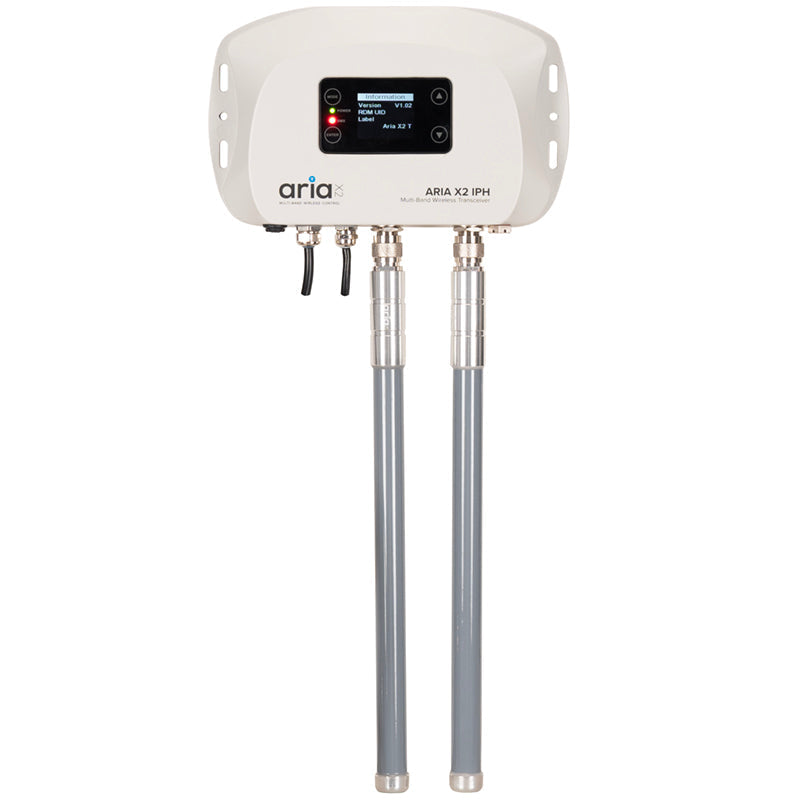

Aria X2 IPH Transceiver

Overview
The Aria X2 IPH is a single-universe wireless DMX transceiver in an IP67 aluminum enclosure with sub-GHz, 2.4 GHz WiFi and Bluetooth connectivity. It works as a wireless-to-DMX receiver or DMX-to-wireless transmitter and is set up by mobile app or front panel.

Best for
Outdoor shows, studios and permanent installations that need weatherproof wireless DMX.

Highlights

• IP67 aluminum housing for outdoor use
• Single DMX universe, transmit or receive
• Sub-GHz, 2.4 GHz WiFi and Bluetooth 5.2
• Configuration via mobile app or front panel
• M12 thread clamp mount and Kensington lock slot

Key Specs

• Protocols: DMX, 802.15.4, Aria X2 Mesh, BLE, Aria X2 Serial
• Frequency bands: 2402-2480 MHz (Bluetooth), 902-928 MHz (US sub-GHz), 863-870 MHz (EU)
• Data: 1x hardwired DMX in/thru
• Power: 100-277V AC, 50/60 Hz
• Power consumption: 1.7 W at 120V, 2.1 W at 230V
• IP rating: IP67
• Operating temperature: up to 113°F (45°C)
• Dimensions: 9.2 x 6.3 x 1.81 in (233.7 x 159.9 x 46 mm)
• Weight: 3.6 lb (1.63 kg)
