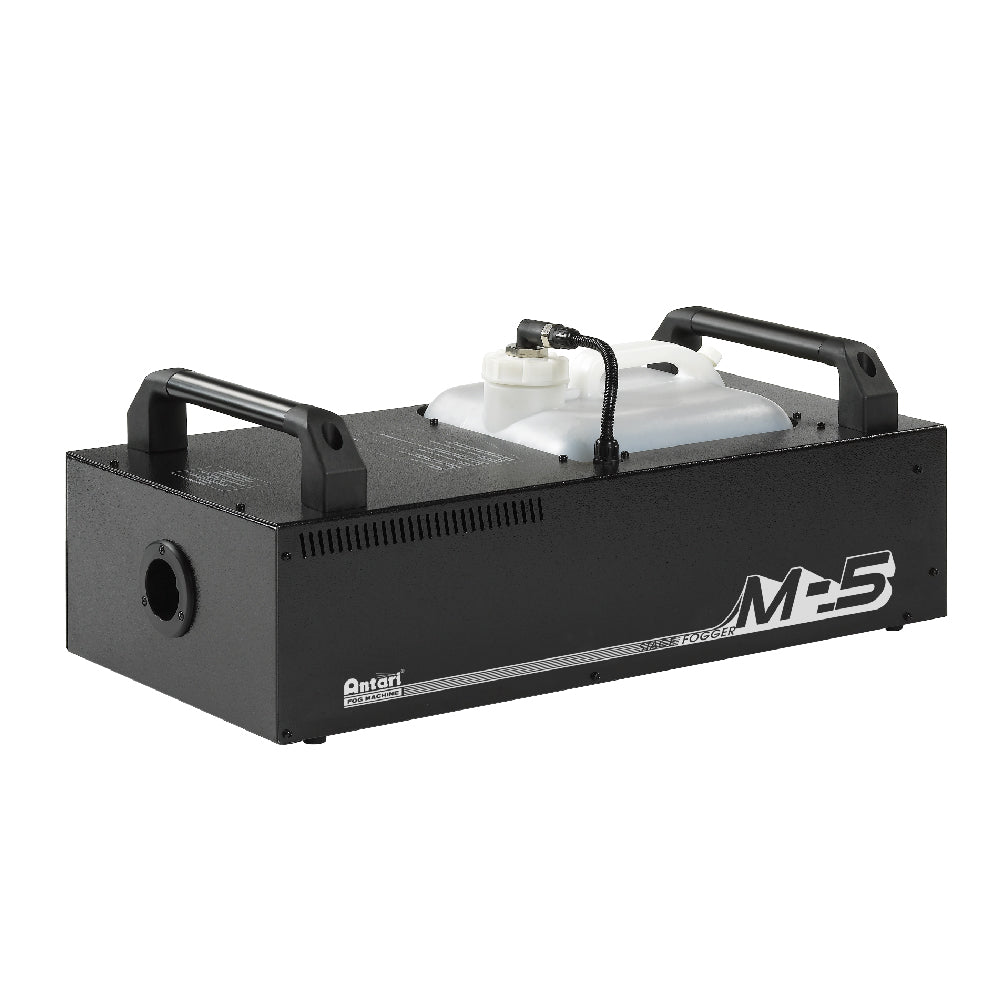

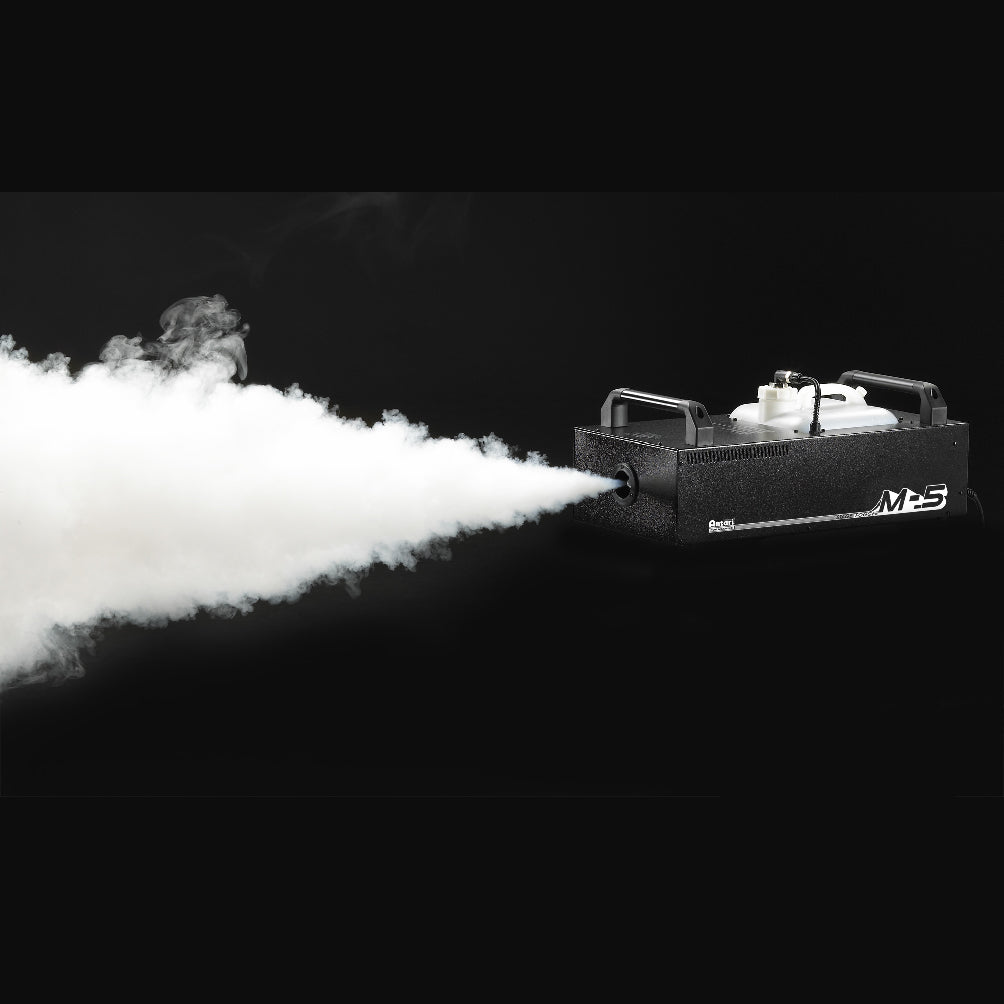

M-5 - 1500W Performance Touring Class Fog Generator

Overview
The Antari M-5 is a 1500 W touring-class fog machine with a 10 L tank and instant high-pressure fog output. It uses an LCD display with rubber keypad and includes the M-20 control unit.

Best for
Touring productions, theaters, and venues needing a high-output fog machine with large fluid capacity.

Highlights

• 1500 W with approx. 8-minute warm-up
• 10 L fluid tank
• Approx. 20-25% lower electricity consumption than comparable models
• LCD display with rubber keypad
• Manual, timer, DMX-512, and optional wireless control
• M-20 control unit included

Key Specs

• Part Number: M-5
• Brand: Antari
• Power: 1500 W
• Voltage: US AC 100-120 V, 12.5 A; EU AC 220-240 V, 6.5 A (50/60 Hz)
• Warm-up time: approx. 8 minutes
• Fluid consumption: 160 ml/min at 100% output
• Tank: 10 L (2.64 gal)
• DMX channels: 2
• Compatible fluids: Antari FLG, FLH, FLR
• Connections: Neutrik powerCON power; 3-pin/5-pin XLR DMX
• Operating temperature: 32-104 F (0-40 C)
• Dimensions: 26.30 x 12.60 x 10.87 in (668 x 320 x 276 mm)
• Weight: 34.17 lb (15.5 kg)
